Product Description

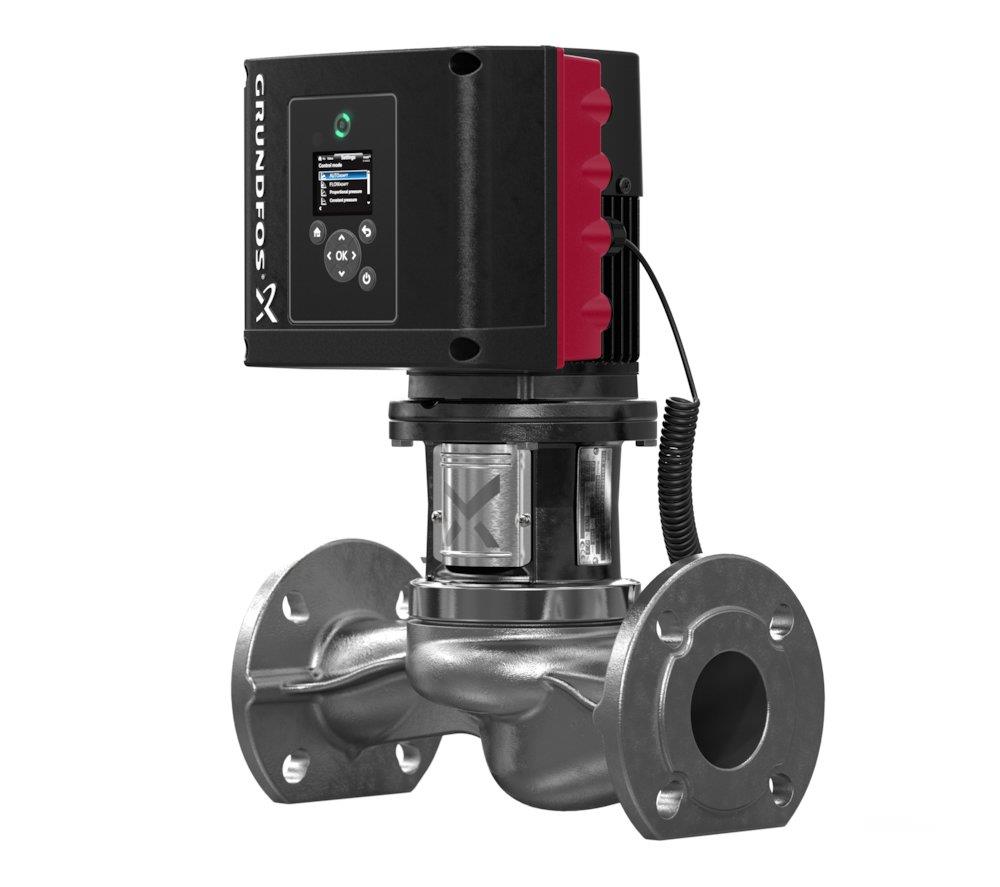

Grundfos TPE3 Circulation pump 32-120. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: dn dimension 32, installation dimension 220 mm, lifting height max 12 m. Supplied under manufacturer part number 98416385, HS code 9028.30, country of origin Denmark.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- DN dimension
- 32
- Installation dimension
- 220 mm
- Lifting height max
- 12 m
- Shaft sealing type
- BQQE
- Power
- 0.25 kW
- Housing material
- Stainless steel
- Application range
- Heating/cooling
- Media temperature min
- -25 °C
- Media temperature max
- 120 °C
- Ambient temperature max
- 50 °C
- Leakage class
- IP55
- Supply voltage
- 3 x 380-500 V AC
- Working pressure max
- 10 bar
- Flow max
- 10.9 m³/h
- Color
- Black/red
- Depth
- 479 mm
- Weight
- 23.6 kg
- REACH SVHC substance above 0.1%
- Lead, DME, Lead titanium zirconium oxide, Lead-monoxide, Potassium Perfluorobutanesulfo, Tetrabrombisphenol A
- Carbon footprint (EPD)
- 217.4449 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 90283090
- HS code
- 9028.30
- Manufacturer part number
- 98416385
- VVS number
- 382150120
Standards & Compliance
- HS Code
- 9028.30
Cross References
- MPN 98416385
- VVS 382150120
