Product Description

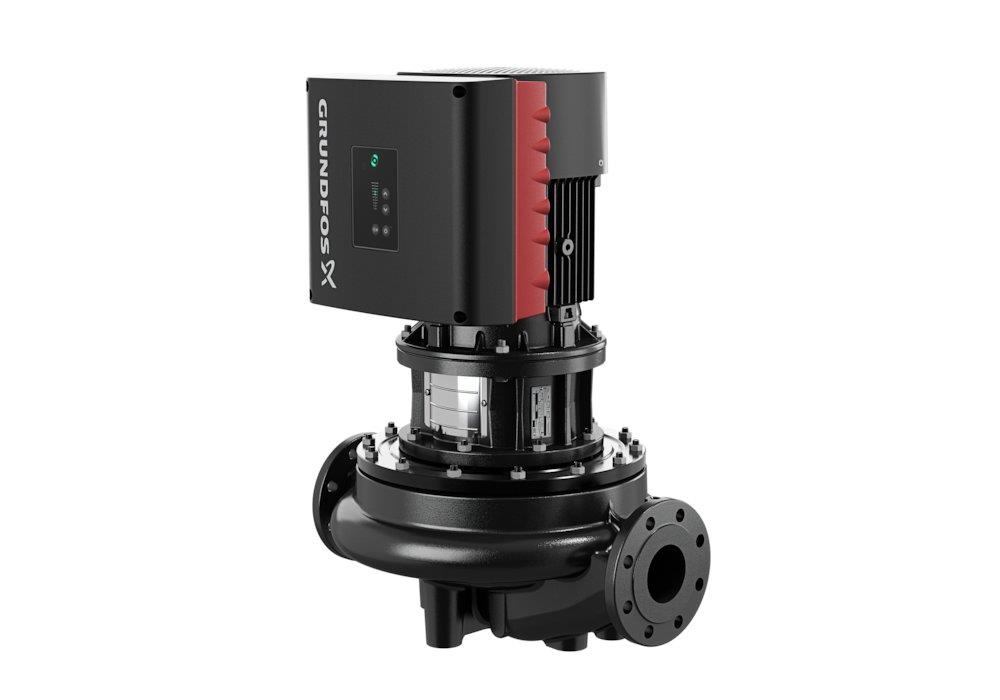

Grundfos TPE Circulation pump 100-90/4. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: dn dimension 100, installation dimension 550 mm, lifting height max 9 m. Supplied under manufacturer part number 99113703, EAN 5712607014650, HS code 8413.70, country of origin Denmark.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- DN dimension
- 100
- Installation dimension
- 550 mm
- Lifting height max
- 9 m
- Shaft sealing type
- BQQE
- Power
- 2.2 kW
- Housing material
- Cast iron
- Application range
- Heating/cooling
- Media temperature min
- -25 °C
- Media temperature max
- 120 °C
- Ambient temperature max
- 50 °C
- Leakage class
- IP55
- Supply voltage
- 3 x 380-500 V AC
- Working pressure max
- 16 bar
- Flow max
- 69.5 m³/h
- Color
- Black/red
- Depth
- 675 mm
- Weight
- 99.1 kg
- Carbon footprint (EPD)
- 825.0323 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84137051
- HS code
- 8413.70
- Manufacturer part number
- 99113703
- GTIN (EAN)
- 5712607014650
- VVS number
- 382056090
Standards & Compliance
- HS Code
- 8413.70
Cross References
- MPN 99113703
- EAN 5712607014650
- VVS 382056090
