Product Description

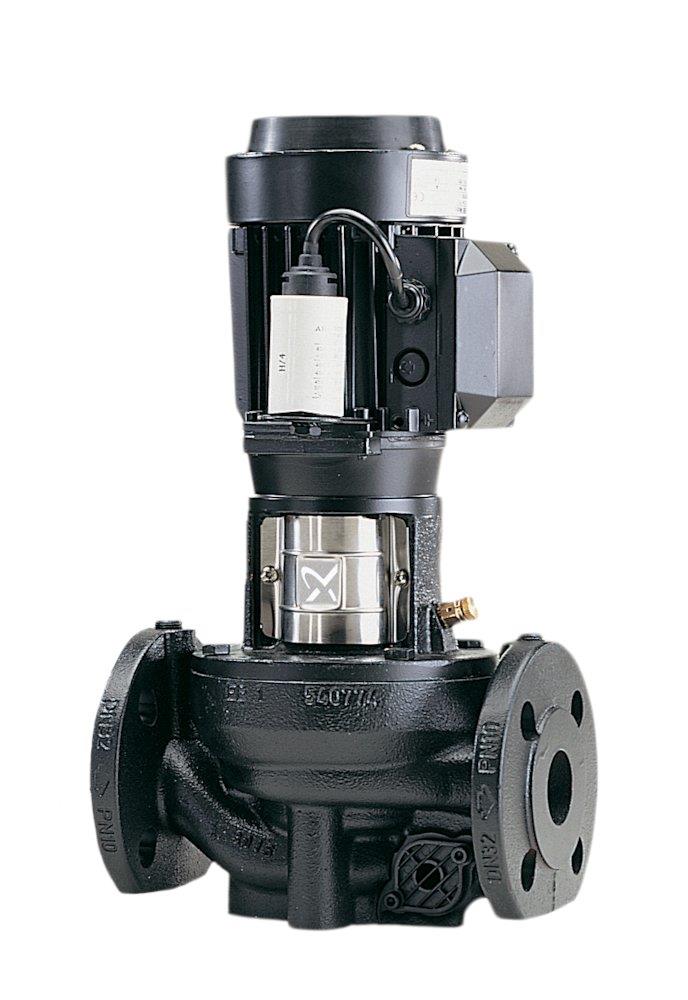

Grundfos TP Circulation pump 80-120/2. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: dn dimension 80, installation dimension 360 mm, lifting height max 12 m. Supplied under manufacturer part number 98823444, HS code 9028.30, country of origin Denmark.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- DN dimension
- 80
- Installation dimension
- 360 mm
- Lifting height max
- 12 m
- Shaft sealing type
- BQQE
- Power
- 1.5 kW
- Housing material
- Bronze
- Application range
- Heating/cooling
- Media temperature min
- -25 °C
- Media temperature max
- 120 °C
- Ambient temperature max
- 60 °C
- Leakage class
- IP55
- Supply voltage
- 3 x 220-240D/380-415Y V AC
- Working pressure max
- 10 bar
- Flow max
- 42.5 m³/h
- Color
- Black
- Depth
- 541.4 mm
- Weight
- 53.4 kg
- Carbon footprint (EPD)
- 4.8482 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 90283090
- HS code
- 9028.30
- Manufacturer part number
- 98823444
- VVS number
- 388485120
Standards & Compliance
- HS Code
- 9028.30
Cross References
- MPN 98823444
- VVS 388485120
