Product Description

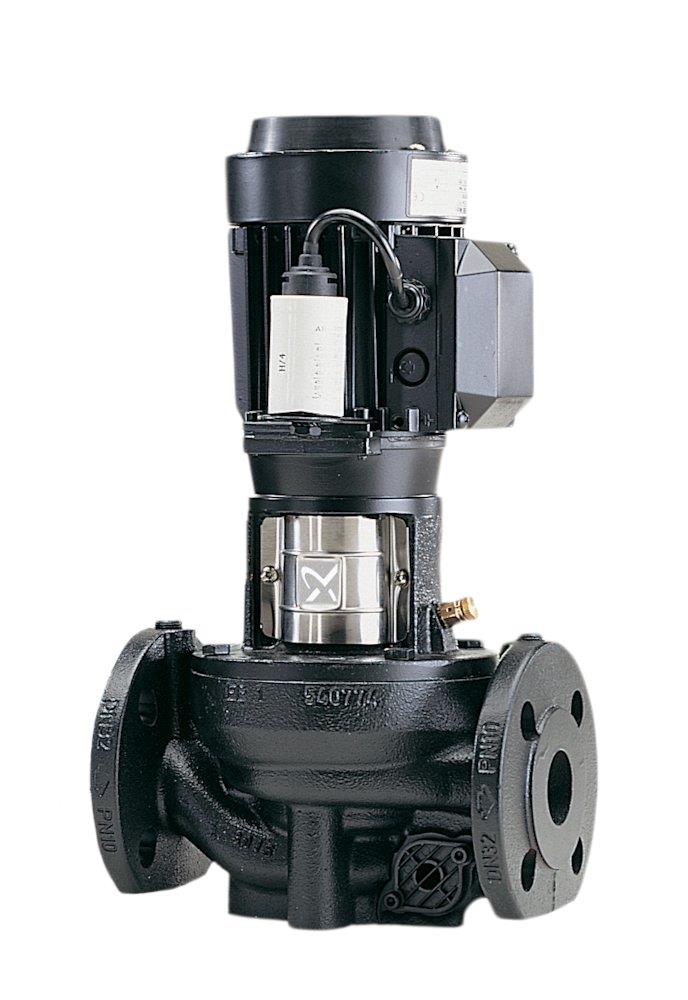

Grundfos TP Circulation pump 80-120/2. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: dn dimension 80, installation dimension 360 mm, lifting height max 12 m. Supplied under manufacturer part number 97851333, EAN 5710625808138, HS code 8413.70, country of origin Denmark.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- DN dimension
- 80
- Installation dimension
- 360 mm
- Lifting height max
- 12 m
- Shaft sealing type
- BQQE
- Power
- 1.5 kW
- Housing material
- Cast iron
- Application range
- Heating/cooling
- Media temperature min
- -25 °C
- Media temperature max
- 120 °C
- Ambient temperature max
- 60 °C
- Leakage class
- IP55
- Supply voltage
- 3 x 220-240D/380-415Y V AC
- Working pressure max
- 10 bar
- Flow max
- 42.5 m³/h
- Color
- Black
- Depth
- 541.4 mm
- Weight
- 46.7 kg
- REACH SVHC substance above 0.1%
- Lead, Cyclopentamethicone, Decamethylcyclopentasiloxane, Octamethylcyclotetrasiloxane
- Carbon footprint (EPD)
- 395.9401 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84137051
- HS code
- 8413.70
- Manufacturer part number
- 97851333
- GTIN (EAN)
- 5710625808138
- VVS number
- 381815120
Standards & Compliance
- HS Code
- 8413.70
Cross References
- MPN 97851333
- EAN 5710625808138
- VVS 381815120
More from Grundfos
Grundfos
Grundfos SQE Submersible Pump 2-70 - 1 1/4", 1.15kW
96510152
Grundfos
Grundfos Hydro Solo-E CRE Pressure Booster System 15-5 U2 A-A-A-D-A - 2", DN50, 81.1M
91048907
Grundfos
Grundfos RPI T2 Combo Sensor - 1/2"
98355521
Grundfos
Grundfos SLV Wastewater Pump 65.65.09.2.50B - 1PCS, 7500mm, 10M
96115123
Grundfos
Grundfos SEG Drain Pump 40.09.2.50B - 3PCS, 14400mm, 10M
96075897
Grundfos
Grundfos MAGNA3 N Circulation pump 32-100 - 2", 180mm, 10M
97924344
Grundfos
Grundfos 45 B Ejector
90230045
Grundfos
Grundfos MAGNA3 N Circulation pump 25-40 - 1 1/2", 180mm, 4M
97924336
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 97851333?
- 97851333 can be ordered from cballast.com as a Grundfos catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Grundfos product?
- The manufacturer part number is 97851333.
- What is the HS code for 97851333?
- The customs tariff (HS) code for 97851333 is 8413.70.
- Who manufactures 97851333?
- 97851333 is a Grundfos product in the Pumps range.
- Is a datasheet available for 97851333?
- Yes — the 97851333 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 97851333?
- The minimum order quantity is 1.
- Is 97851333 available?
- Yes — 97851333 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
