Product Description

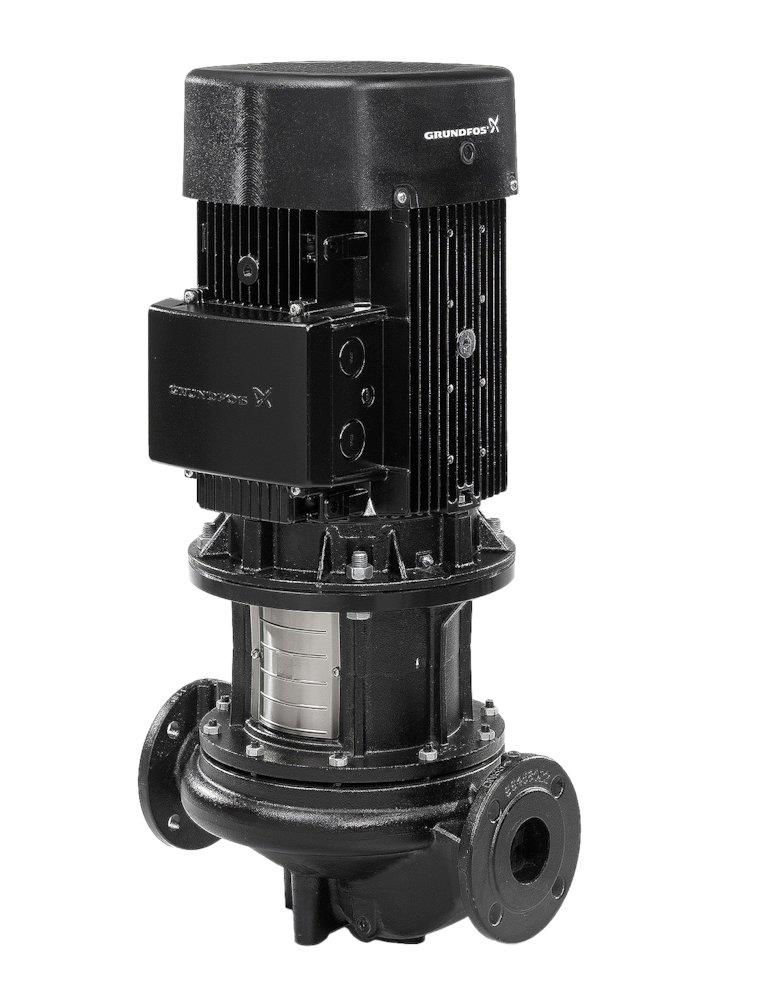

Grundfos TP Circulation pump 40-240/2. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: dn dimension 40, installation dimension 340 mm, lifting height max 24 m. Supplied under manufacturer part number 96086827, EAN 5700395307832, HS code 8413.70, country of origin Denmark.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- DN dimension
- 40
- Installation dimension
- 340 mm
- Lifting height max
- 24 m
- Shaft sealing type
- BQQE
- Power
- 2.2 kW
- Housing material
- Cast iron
- Application range
- Heating/cooling
- Media temperature min
- -25 °C
- Media temperature max
- 120 °C
- Ambient temperature max
- 60 °C
- Leakage class
- IP55
- Supply voltage
- 3 x 220-240D/380-415Y V AC
- Working pressure max
- 16 bar
- Flow max
- 20.5 m³/h
- Color
- Black
- Depth
- 586.5 mm
- Weight
- 51.8 kg
- Carbon footprint (EPD)
- 509.0659 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84137051
- HS code
- 8413.70
- Manufacturer part number
- 96086827
- GTIN (EAN)
- 5700395307832
- VVS number
- 381702240
Standards & Compliance
- HS Code
- 8413.70
Cross References
- MPN 96086827
- EAN 5700395307832
- VVS 381702240
