Product Description

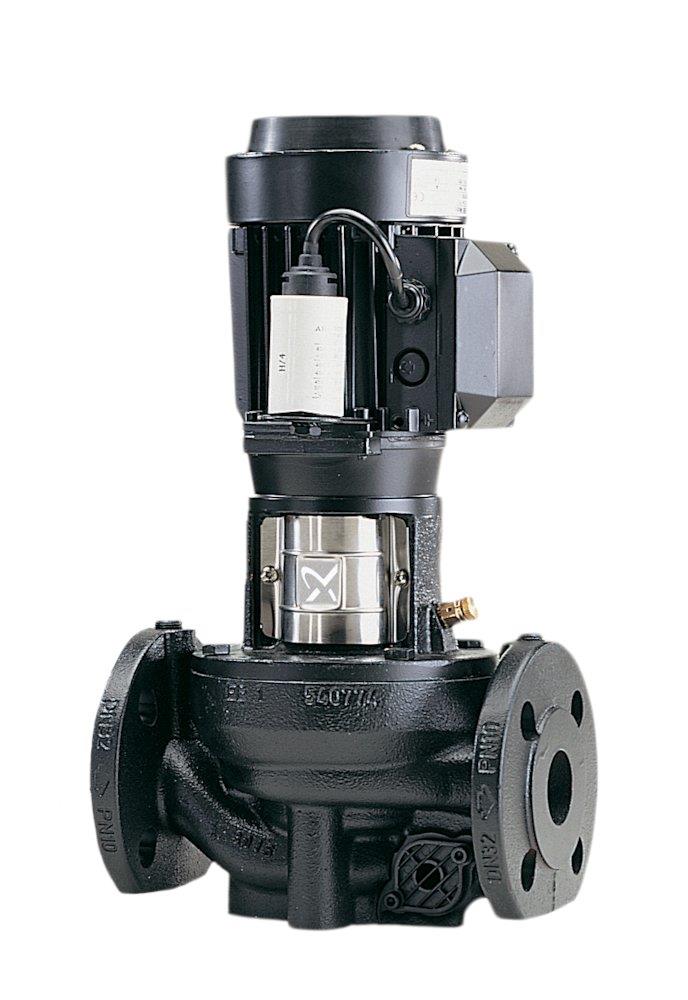

Grundfos TP Circulation pump 32-60/2. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: dn dimension 32, installation dimension 220 mm, lifting height max 6 m. Supplied under manufacturer part number 98436290, EAN 5711494972845, HS code 8413.70, country of origin Denmark.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- DN dimension
- 32
- Installation dimension
- 220 mm
- Lifting height max
- 6 m
- Shaft sealing type
- BQQE
- Power
- 0.25 kW
- Housing material
- Bronze
- Application range
- Heating/cooling
- Media temperature min
- -25 °C
- Media temperature max
- 120 °C
- Ambient temperature max
- 40 °C
- Leakage class
- IP55
- Supply voltage
- 3 x 220-240D/380-415 V AC
- Working pressure max
- 10 bar
- Flow max
- 7.5 m³/h
- Color
- Black
- Depth
- 387.9 mm
- Weight
- 17.6 kg
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 147.8715 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84137051
- HS code
- 8413.70
- Manufacturer part number
- 98436290
- GTIN (EAN)
- 5711494972845
- VVS number
- 381881060
Standards & Compliance
- HS Code
- 8413.70
Cross References
- MPN 98436290
- EAN 5711494972845
- VVS 381881060
