Product Description

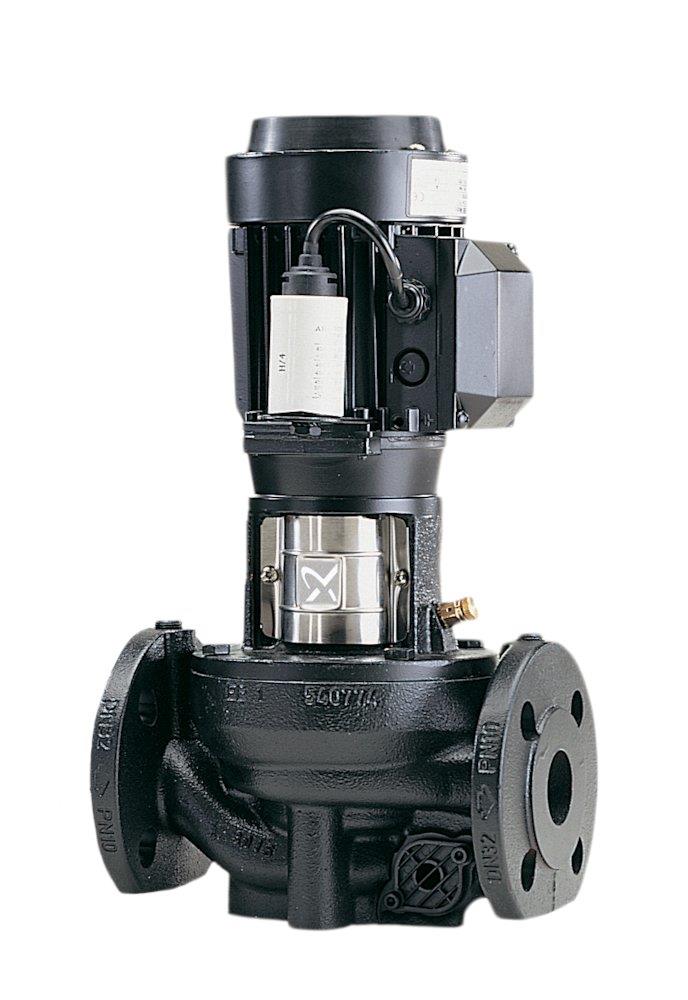

Grundfos TP Circulation pump 32-120/4. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: dn dimension 32, installation dimension 440 mm, lifting height max 12 m. Supplied under manufacturer part number 96086741, HS code 9028.30, country of origin Denmark.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- DN dimension
- 32
- Installation dimension
- 440 mm
- Lifting height max
- 12 m
- Shaft sealing type
- BQQE
- Power
- 0.55 kW
- Housing material
- Cast iron
- Application range
- Heating/cooling
- Media temperature min
- -25 °C
- Media temperature max
- 120 °C
- Ambient temperature max
- 55 °C
- Leakage class
- IP55
- Supply voltage
- 3 x 220-240D/380-420Y V AC
- Working pressure max
- 16 bar
- Flow max
- 9.9 m³/h
- Color
- Black
- Depth
- 507.5 mm
- Weight
- 47.9 kg
- REACH SVHC substance above 0.1%
- Lead, Cyclopentamethicone, Decamethylcyclopentasiloxane, Octamethylcyclotetrasiloxan
- Carbon footprint (EPD)
- 4.8482 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 90283090
- HS code
- 9028.30
- Manufacturer part number
- 96086741
- VVS number
- 381711120
Standards & Compliance
- HS Code
- 9028.30
Cross References
- MPN 96086741
- VVS 381711120
