Product Description

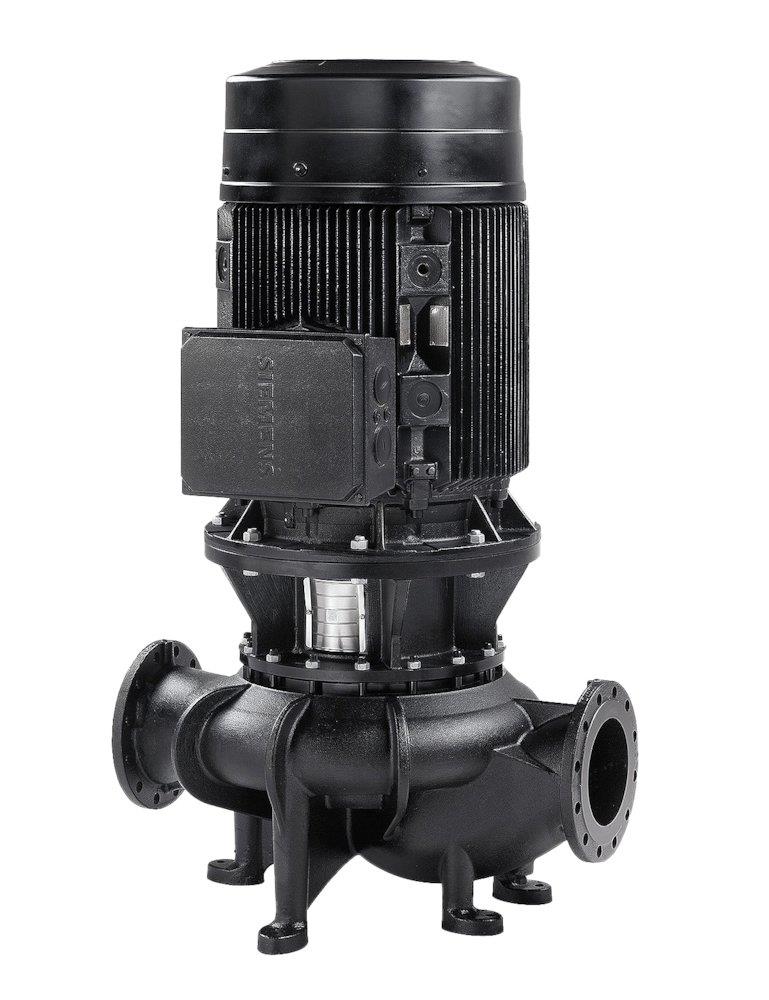

Grundfos TP Circulation pump 200-240/4. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: dn dimension 200, installation dimension 900 mm, lifting height max 24 m. Supplied under manufacturer part number 97927156, HS code 9028.30, country of origin Denmark.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- DN dimension
- 200
- Installation dimension
- 900 mm
- Lifting height max
- 24 m
- Shaft sealing type
- BQQE
- Power
- 30 kW
- Housing material
- Cast iron
- Application range
- Heating/cooling
- Media temperature min
- -25 °C
- Media temperature max
- 120 °C
- Ambient temperature max
- 55 °C
- Leakage class
- IP55
- Supply voltage
- 3 x 380-420D/660-725Y V AC
- Working pressure max
- 16 bar
- Flow max
- 488 m³/h
- Color
- Black
- Depth
- 1247 mm
- Weight
- 519 kg
- REACH SVHC substance above 0.1%
- Lead, Cyclopentamethicone, Decamethylcyclopentasiloxane, Octamethylcyclotetrasiloxan
- Carbon footprint (EPD)
- 4.670.4772 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 90283090
- HS code
- 9028.30
- Manufacturer part number
- 97927156
- VVS number
- 381719240
Standards & Compliance
- HS Code
- 9028.30
Cross References
- MPN 97927156
- VVS 381719240
