Product Description

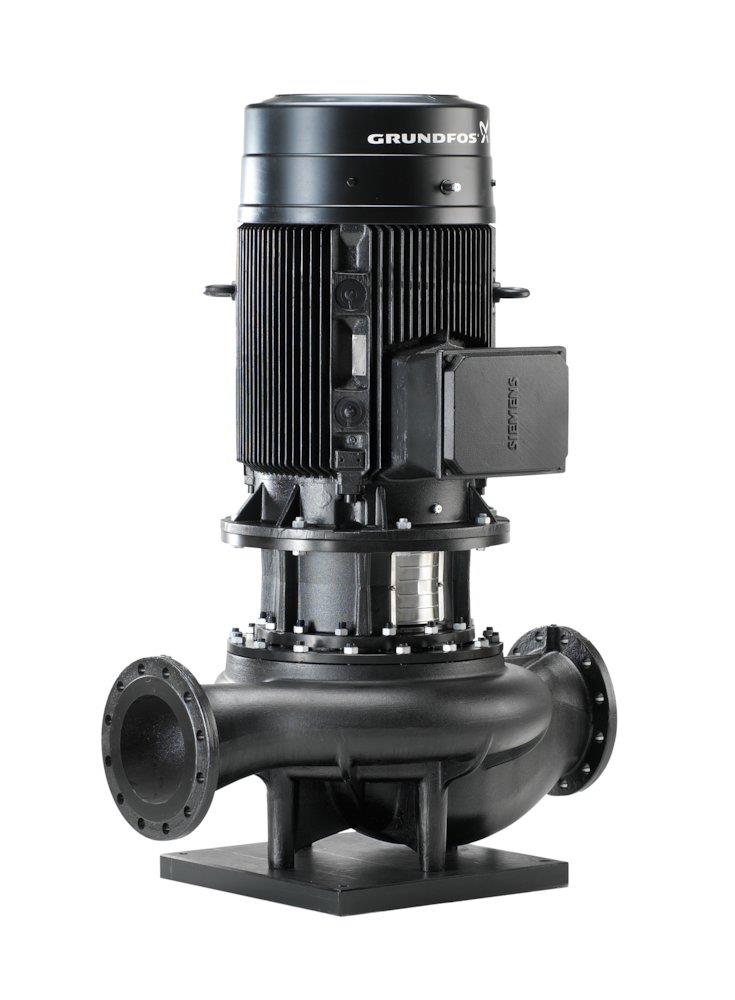

Grundfos TP Circulation pump 125-340/4. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: dn dimension 125, installation dimension 800 mm, lifting height max 34 m. Supplied under manufacturer part number 98742560, HS code 9028.30, country of origin Denmark.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- DN dimension
- 125
- Installation dimension
- 800 mm
- Lifting height max
- 34 m
- Shaft sealing type
- BQQE
- Power
- 22 kW
- Housing material
- Cast iron
- Application range
- Heating/cooling
- Media temperature min
- -25 °C
- Media temperature max
- 120 °C
- Ambient temperature max
- 55 °C
- Leakage class
- IP55
- Supply voltage
- 3 x 380-420D/660-725Y V AC
- Working pressure max
- 16 bar
- Flow max
- 191 m³/h
- Color
- Black
- Depth
- 1118 mm
- Weight
- 368 kg
- REACH SVHC substance above 0.1%
- Lead, Cyclopentamethicone, Decamethylcyclopentasiloxane, Octamethylcyclotetrasiloxan
- Carbon footprint (EPD)
- 3.466.4960 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 90283090
- HS code
- 9028.30
- Manufacturer part number
- 98742560
- VVS number
- 381717340
Standards & Compliance
- HS Code
- 9028.30
Cross References
- MPN 98742560
- VVS 381717340
More from Grundfos
Grundfos
Grundfos TPE Circulation pump 100-160/2 - 100, 500mm, 16M
99114836
Grundfos
Grundfos LC 231 Control
99369644
Grundfos
Grundfos TPE Circulation pump 80-240/4 - 80, 620mm, 24M
99114831
Grundfos
Grundfos Manometer - 10073405
920410
Grundfos
Grundfos Connection Pipe
96473060
Grundfos
Grundfos PJE Coupling
00ID6742
Grundfos
Grundfos Motor Cable Kit without switch
16702
Grundfos
Grundfos Cable 10M - 10155939
96586336
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 98742560?
- 98742560 can be ordered from cballast.com as a Grundfos catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Grundfos product?
- The manufacturer part number is 98742560.
- What is the HS code for 98742560?
- The customs tariff (HS) code for 98742560 is 9028.30.
- Who manufactures 98742560?
- 98742560 is a Grundfos product in the Pumps range.
- Is a datasheet available for 98742560?
- Yes — the 98742560 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 98742560?
- The minimum order quantity is 1.
- Is 98742560 available?
- Yes — 98742560 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
