Product Description

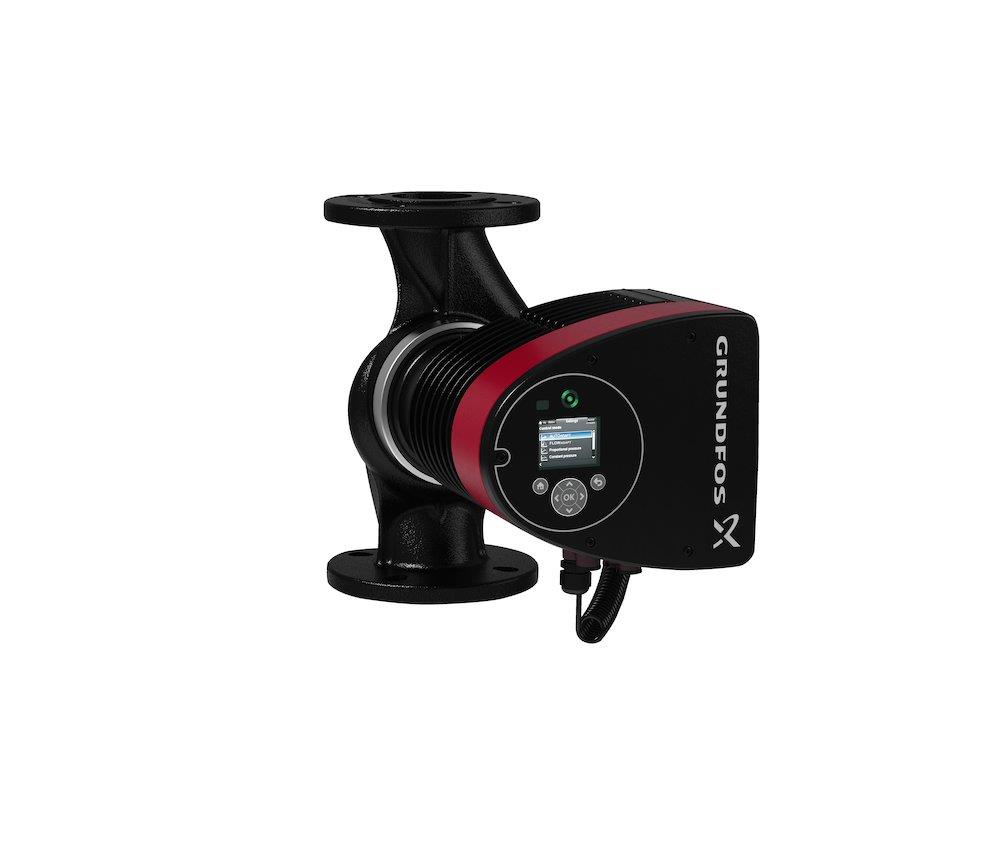

Grundfos MAGNA3 Circulation pump 50-100 F. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: dn dimension 50, lifting height max 10 m, installation dimension 280 mm. Supplied under manufacturer part number 97924283, EAN 5710626493586, HS code 8413.70, country of origin Germany.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- DN dimension
- 50
- Lifting height max
- 10 m
- Installation dimension
- 280 mm
- Application range
- Heating/cooling
- Media temperature min
- -10 °C
- Media temperature max
- 110 °C
- Ambient temperature max
- 40 °C
- Supply voltage
- 230 V AC
- Flow max
- 31.5 m³/h
- Energy efficiency index (EEI)
- 0.18 EEI
- Working pressure max
- 10 bar
- Leakage class
- X4D
- Housing material
- Cast iron
- Weight
- 18 kg
- Shaft sealing type
- Without shaft seal
- Color
- Black/red
- Depth
- 376 mm
- Height
- 280 mm
- Carbon footprint (EPD)
- 140.3813 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84137030
- HS code
- 8413.70
- Manufacturer part number
- 97924283
- GTIN (EAN)
- 5710626493586
- VVS number
- 380953510
Standards & Compliance
- HS Code
- 8413.70
Cross References
- MPN 97924283
- EAN 5710626493586
- VVS 380953510
