Product Description

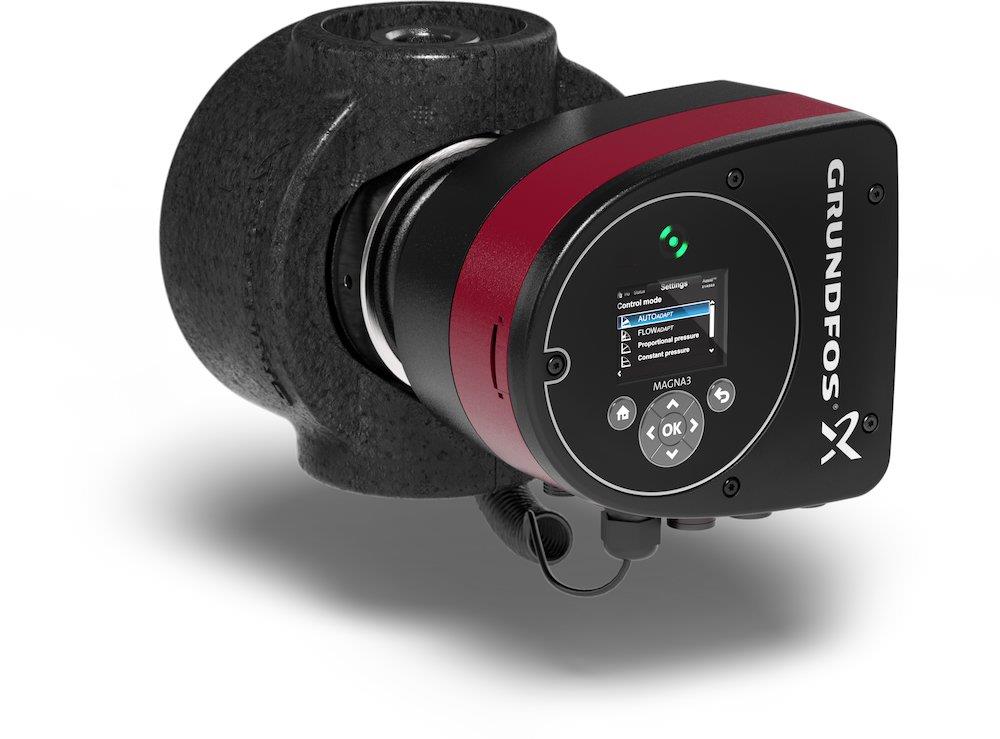

Grundfos MAGNA3 Circulation pump 32-100. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: connection thread 2", lifting height max 10 m, installation dimension 180 mm. Supplied under manufacturer part number 97924257, EAN 5710626493326, HS code 8413.70, country of origin Germany.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- Connection thread
- 2"
- Lifting height max
- 10 m
- Installation dimension
- 180 mm
- Media temperature min
- -10 °C
- Media temperature max
- 110 °C
- Ambient temperature max
- 40 °C
- Supply voltage
- 230 V AC
- Color
- Black/red
- Housing material
- Cast iron
- Application range
- Heating/cooling
- Energy efficiency index (EEI)
- 0.18 EEI
- Leakage class
- X4D
- Working pressure max
- 10 bar
- Weight
- 5.25 kg
- Shaft sealing type
- Without shaft seal
- Depth
- 239 mm
- Height
- 180 mm
- REACH SVHC substance above 0.1%
- Lead, DME, Lead-monoxide, Potassium Perfluorobutanesulfo
- Carbon footprint (EPD)
- 41.3000 kg CO2e per pcs
- Environmental declaration
- EPD third-party verified
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84137030
- HS code
- 8413.70
- Manufacturer part number
- 97924257
- GTIN (EAN)
- 5710626493326
- VVS number
- 380791100
Standards & Compliance
- HS Code
- 8413.70
Cross References
- MPN 97924257
- EAN 5710626493326
- VVS 380791100
