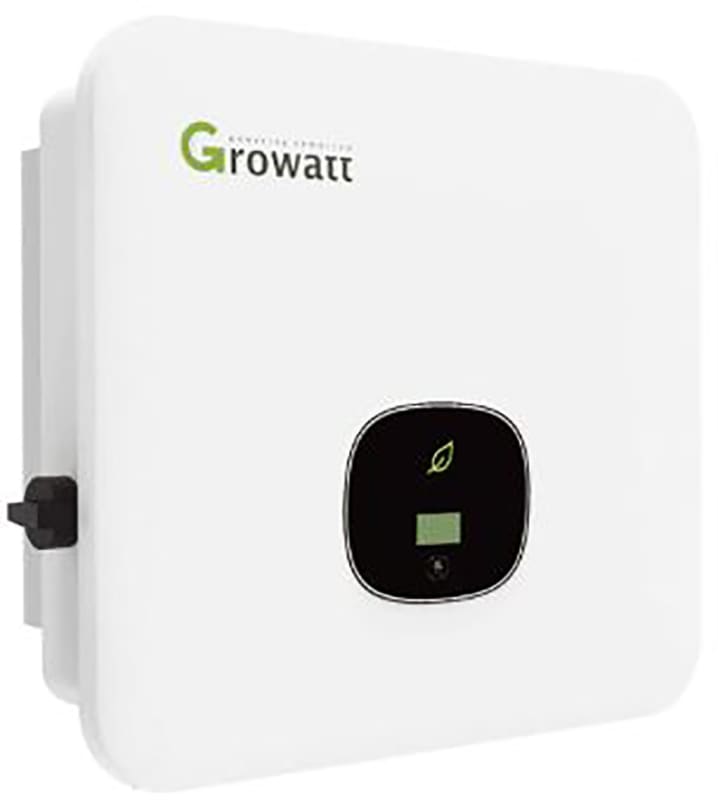

Growatt MOD 4000TL3-XH three-phase hybrid inverter, 4 kW
Pricing
Request a quote
We reply within 24 hours
Product Description
Growatt MOD 4000TL3-XH three-phase hybrid inverter, 4 kW nominal AC output. Technical data per the attached Growatt OEM datasheet; see specification lines below.
Technical Specifications
- Rated AC power
- 4000 W; max. AC apparent power: 4400 VA; max. output current: 6.7 A; max. efficiency 98.3% (European 97.5%); dimensions 425 x 387 x 147 mm; weight 12.5 kg.
- Topology
- three-phase transformerless, battery-ready hybrid; dual MPP tracker.
- Max. PV input voltage
- 1100 V; MPPT operating range: 140-1000 V; start-up voltage: 160 V; nominal DC voltage: 600 V.
- AC connection
- 3W+N+PE; nominal 220/380 V, 230/400 V (340-440 V); 50/60 Hz (45-55/55-65 Hz); THDi <3%; adjustable power factor +/-0.8.
- Battery compatibility
- Growatt ARK XH Battery System 7.68-25.6 kWh (600-950 V).
- Protection
- DC reverse-polarity, DC switch, AC/DC surge Type II/Type II, residual-current monitoring, anti-islanding, insulation-resistance monitoring; AFCI optional.
- Enclosure
- IP66; operating temperature -25 to +60 C; natural convection cooling; max. altitude 4000 m; relative humidity 0-100%.
- Interfaces
- USB/RS485/WiFi/GPRS/LAN/RF; display OLED+LED / WiFi+APP; connectors H4/MC4.
- Compliance
- CE, VDE0126, EN50549, C10/C11, IEC62116, IEC61727, IEC60068, IEC61683, CEI0-21, N4105, G98/G99, G100, AS4777, UNE217001.
- Warranty
- 5 years (10 years optional).
- Manufacturer part number (MPN)
- MOD 4000TL3-XH
- EAN / GTIN
- 5705157272311
- Sales unit
- pcs
- Lifecycle status
- Phased out
Standards & Compliance
- Temperature Range
- -25 to +60 C
- IP Rating
- IP66
Cross References
- EAN 5705157272311
- SAP 1200514180
- Code 82653896
Product Documentation
