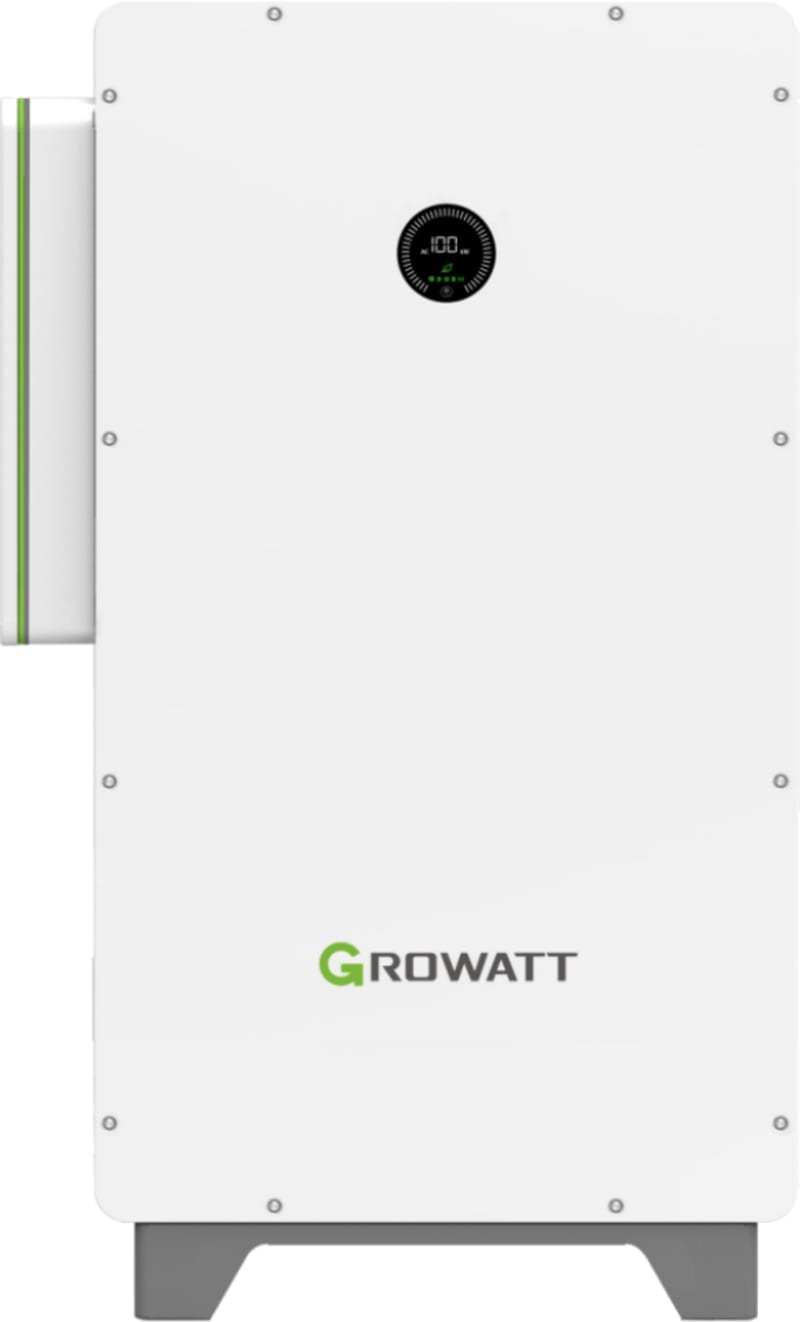

Growatt WIT 100-HU Three-Phase Hybrid Inverter with AXE Battery, 300 kWh
Pricing
Request a quote
We reply within 24 hours
Product Description
Growatt WIT 100-HU three-phase commercial hybrid inverter bundled with a Growatt AXE high-voltage battery, 300 kWh usable. Inverter manufacturer part number WIT 100K-HU. Technical data for the WIT 100-HU inverter per the attached Growatt OEM datasheet; see specification lines below.
Technical Specifications
- Bundle
- WIT 100-HU hybrid inverter with Growatt AXE high-voltage battery, 300 kWh usable.
- Inverter rated AC power
- 100 kW.
- Max. AC apparent power
- 110 kVA.
- Nominal AC current
- 166.7 A.
- Max. recommended PV power
- 156 kW.
- Max. input current per MPPT
- 32 A; max. short-circuit current per MPPT: 40 A.
- Max. DC input voltage
- 1000 V; max. PV open-circuit voltage 550 V; MPPT range 180-800 V.
- Battery voltage range
- 600-1000 V (3P3W) / 680-1000 V (3P4W).
- Continuous charge / discharge power
- 113.5 kW.
- Max. efficiency
- 98.2%.
- Grid
- three-phase, 50/60 Hz.
- Dimensions (W/H/D)
- 820 / 1350 / 510 mm; protection rating IP66.
- System
- scalable to 300 kW; UPS and black-start support; 100% unbalanced load and 110% continuous AC overload in backup.
- Inverter manufacturer part number (MPN)
- WIT 100K-HU.
Cross References
- SAP 1200856556
- Code 84085353
- El-nr 7040858
