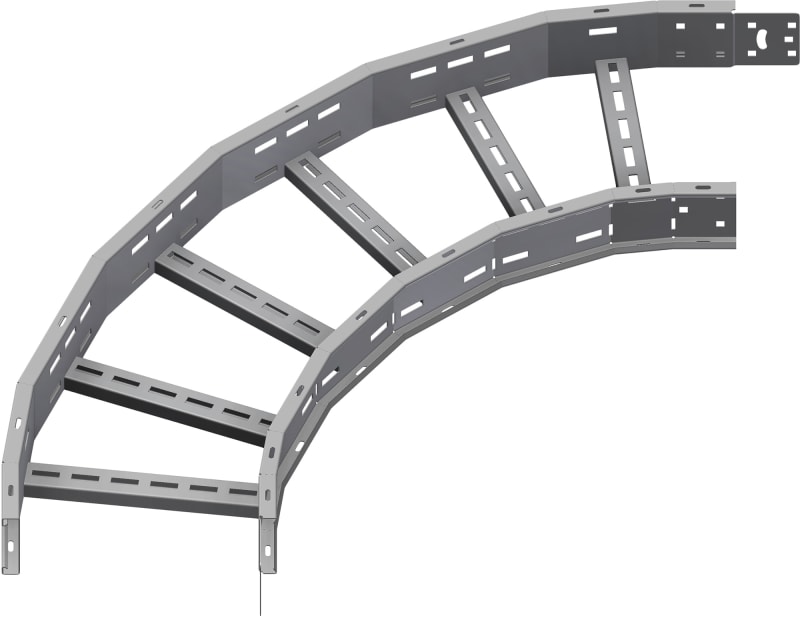

Øglænd System OE100 Flat Elbow 90°, 300 mm, R600, Hot-Dip Galvanised
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System OE100 horizontal flat elbow, 90°, 300 mm, radius 600 mm, hot-dip galvanised. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- OE100 FE90-300-R600 HDG
- EAN / GTIN
- 7070693841818
- Sales unit
- pcs
- Type
- Flat elbow
- T Material Thickness (mm)
- 1.5
- X (mm)
- 923
- Y (mm)
- 923
- W1 Width 1 (mm)
- 300
- W2 Width 2 (mm)
- 346
- H Height (mm)
- 100
- Width
- 346 mm
- Radius
- 600
- A Angle (deg)
- 90
- O Overlap Integrated Splice (mm)
- 80
- D Loading depth (mm)
- 75
- Rung width
- 300 mm
- Weight (kg)
- 7.200
- ETIM class
- EC001535 - Bend for cable ladder
- CAD models available for
- AVEVA E3D
- Manufacturer item number
- 1384181
- Hilti item number
- 2301925
- Change of direction
- Horizontal
- Type of side joist
- Profile (open)
- Side perforation
- Yes
- Type of rung
- Perforated profile
- Suitable for cable ladder height
- 100 mm
- Suitable for cable ladder width
- 300 mm
- Model
- Integrated connector
- Inner radius
- 600 mm
- Wide span model
- Yes
- Suitable for circuit integrity
- Yes
- Material
- Steel
- Stainless steel, pickled
- No
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693841818
- SAP 1200261059
- Code 82301669
Product Documentation
