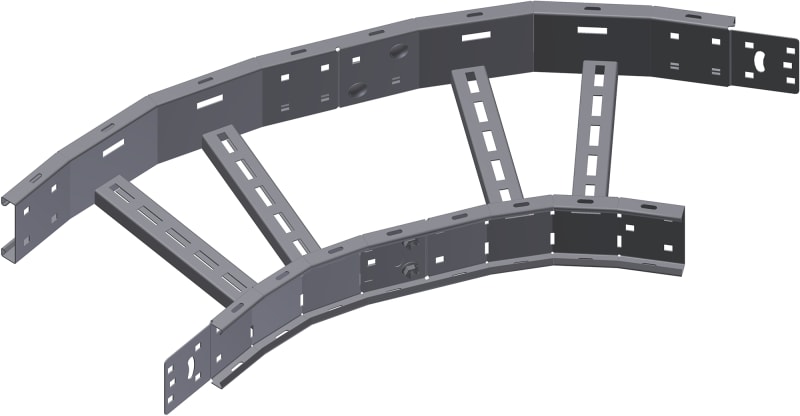

Øglænd System OE125 Flat Elbow 60°, 600 mm, R600, Stainless Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System OE125 horizontal flat elbow, 60°, 600 mm, radius 600 mm, stainless steel. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- OE125 FE60-600-R600 SS
- EAN / GTIN
- 7070693840750
- Sales unit
- pcs
- Type
- Flat elbow
- T Material Thickness (mm)
- 1.5
- X (mm)
- 934
- Y (mm)
- 1057.8
- W1 Width 1 (mm)
- 600
- W2 Width 2 (mm)
- 646
- H Height (mm)
- 125
- Radius
- 600
- A Angle (deg)
- 60
- O Overlap Integrated Splice (mm)
- 80
- D Loading depth (mm)
- 100
- Weight (kg)
- 7.440
- ETIM class
- EC001535 - Bend for cable ladder
- CAD models available for
- AVEVA E3D
- Manufacturer item number
- 1384075
- Hilti item number
- 2301944
- Change of direction
- Horizontal
- Type of side joist
- Profile (open)
- Side perforation
- Yes
- Type of rung
- Perforated profile
- Suitable for cable ladder height
- 125 mm
- Suitable for cable ladder width
- 600 mm
- Model
- Integrated connector
- Inner radius
- 600 mm
- Wide span model
- Yes
- Suitable for circuit integrity
- Yes
- Material
- Steel
- Stainless steel, pickled
- Yes
- Material quality
- Rustproof and acidproof steel
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693840750
- SAP 1000680565
- Code 81196031
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System LOE55 Tee, 600/600 mm, R300, Hot-Dip Galvanised
LOE55 TE600/600-R300 HDG
Øglænd System
Øglænd System OER300 Rack, 750 × 1990 mm, Stainless Steel
OER300-RIO RK-750-1990 SS
Øglænd System
Øglænd System SPB Support Bracket, 100 mm, Hot-Dip Galvanised
SPB SB-CA-100 PT HDG
Øglænd System
S-M CH42-1-3000 (loe CH42-CS-3000 Ss)
LOE CH42-CS-3000 SS
Øglænd System
Øglænd System OE125 Flat Elbow 60°, 450 mm, R600, Stainless Steel
OE125 FE60-450-R600 SS
Øglænd System

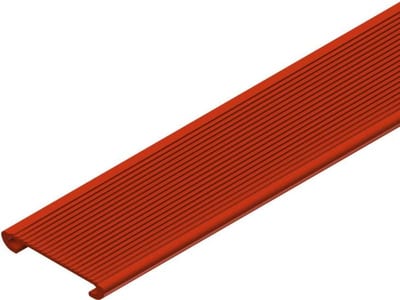

AD 3mm 1200 (SmartCleat LIN-3-1200 TPV)
Øglænd System

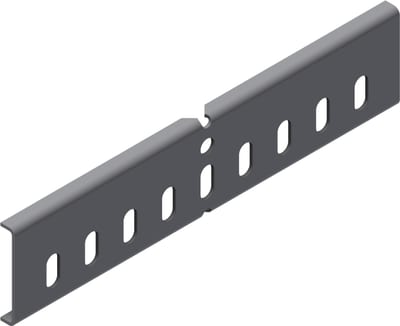

Øglænd System SPB-LB40 Splice Angle, Pre-Galvanised
