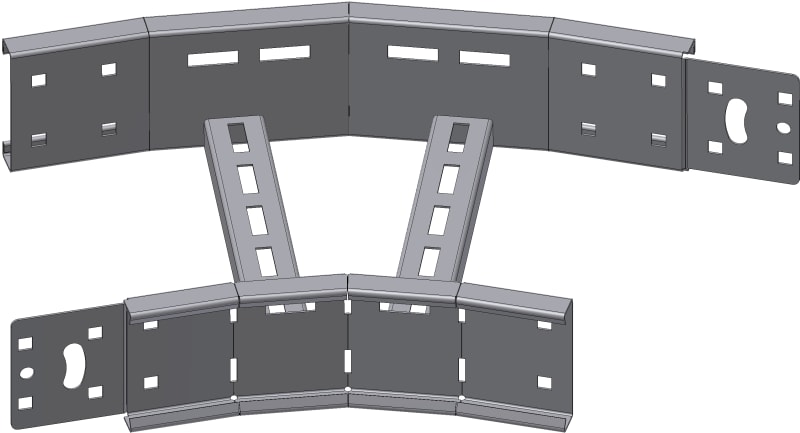

Øglænd System OE125 Flat Elbow 30°, 150 mm, R600, Stainless Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System OE125 horizontal flat elbow, 30°, 150 mm, radius 600 mm, stainless steel. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- OE125 FE30-150-R600 SS
- EAN / GTIN
- 7070693840484
- Sales unit
- pcs
- Type
- Flat elbow
- T Material Thickness (mm)
- 1.5
- X (mm)
- 273.3
- Y (mm)
- 386.5
- W1 Width 1 (mm)
- 150
- W2 Width 2 (mm)
- 196
- H Height (mm)
- 125
- Radius
- 600
- A Angle (deg)
- 30
- O Overlap Integrated Splice (mm)
- 80
- D Loading depth (mm)
- 100
- Weight (kg)
- 2.200
- ETIM class
- EC001535 - Bend for cable ladder
- CAD models available for
- AVEVA E3D
- Manufacturer item number
- 1384048
- Hilti item number
- 2309078
- Change of direction
- Horizontal
- Type of side joist
- Profile (open)
- Side perforation
- Yes
- Type of rung
- Perforated profile
- Suitable for cable ladder height
- 125 mm
- Suitable for cable ladder width
- 150 mm
- Model
- Integrated connector
- Inner radius
- 600 mm
- Wide span model
- Yes
- Suitable for circuit integrity
- Yes
- Material
- Steel
- Stainless steel, pickled
- Yes
- Material quality
- Rustproof and acidproof steel
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693840484
- SAP 1000680547
- Code 8582072
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System SPB-LB40 End Cover, Pre-Galvanised
1306804
Øglænd System
RAIL S-SPB 30-1-450 PG
SPB-LB CH-CS-450 PG
Øglænd System
Øglænd System SPB-LB40 Cable Tray, 150 × 40 mm, 1 mm, 3 m, Pre-Galvanised
SPB-LB40 CT-U-200-3000-1.0 PG
Øglænd System
Øglænd System Profile Bracket S-SPB SB-100 PG Galvanised
SPB SB-CS-TR-SC-100 PT PG
Øglænd System
Øglænd System Hanger, 60 × 90 × 6 mm, GRP (FRP)
SP-60X90X6MM
Øglænd System

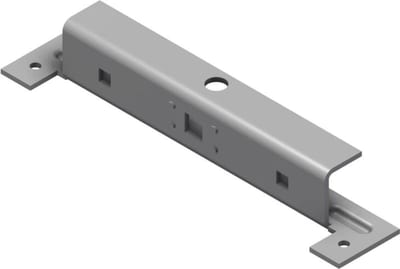

Øglænd System LOE Central Support, 36 mm, Pre-Galvanised
LOE CS-CH42-200 PG
Øglænd System

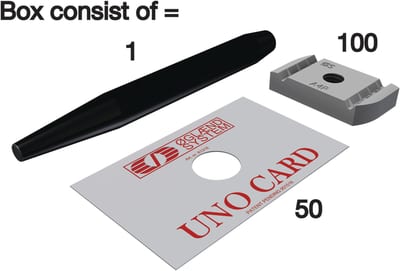

Øglænd System UNO Channel Nut S-UNO Nu-Card M10 Stainless
S-UNO Nu-Card M10 SS
Øglænd System

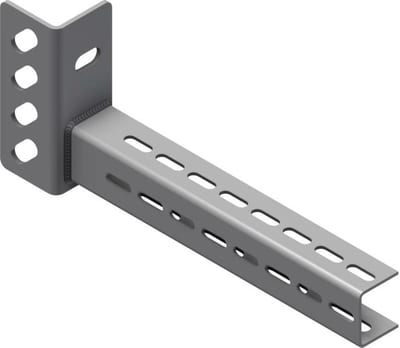

Øglænd System SPB Cantilever Arm, 200 mm, Stainless Steel
