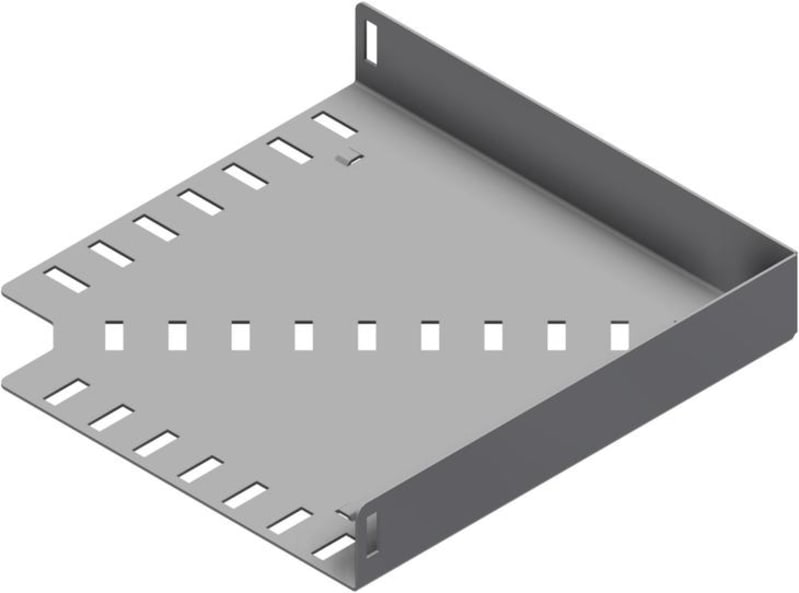

Tube elbow SPBE40 FE-TI-90-200 SS
Pricing
Request a quote
We reply within 24 hours
Product Description
Tube elbow SPBE40 FE-TI-90-200 SS. Flat elbow 90º for tubing installations with integrated splice connectors. Overall dimensions 247 × 247 mm (X × Y), material thickness 1.5 mm, height 41 mm, width 202 mm, radius 65 mm, angle 90°, weight 0.880 kg. ETIM class EC002400 (Bend for cable tray).
Technical Specifications
- Manufacturer part number (MPN)
- SPBE40 FE-TI-90-200 SS
- EAN / GTIN
- 7070693718431
- Sales unit
- pcs
- Type
- Tubing Bend
- T Material Thickness (mm)
- 1.5
- X (mm)
- 247
- Y (mm)
- 247
- W Width (mm)
- 202
- H Height (mm)
- 41
- Radius
- 65
- A Angle (deg)
- 90
- O Overlap Integrated Splice (mm)
- 32
- Fits Tray Width (mm)
- 200
- Weight (kg)
- 0.880
- ETIM class
- EC002400 - Bend for cable tray
- Manufacturer item number
- 1371843
- Hilti item number
- 2356668
- Change of direction
- Horizontal
- Construction type
- Bend rigid
- Bend model
- Smooth bend
- Inner radius
- 65 mm
- Suitable for cable tray height
- 40 mm
- Suitable for cable tray width
- 200 mm
- Material thickness
- 1.5 mm
- Side perforation
- No
- Bottom perforation
- Yes
- Model
- Integrated connector
- Wide span model
- No
- Material
- Stainless steel
- Stainless steel, pickled
- No
- Material quality
- Rustproof and acidproof steel
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693718431
- SAP 1000015115
- Code 8127401
