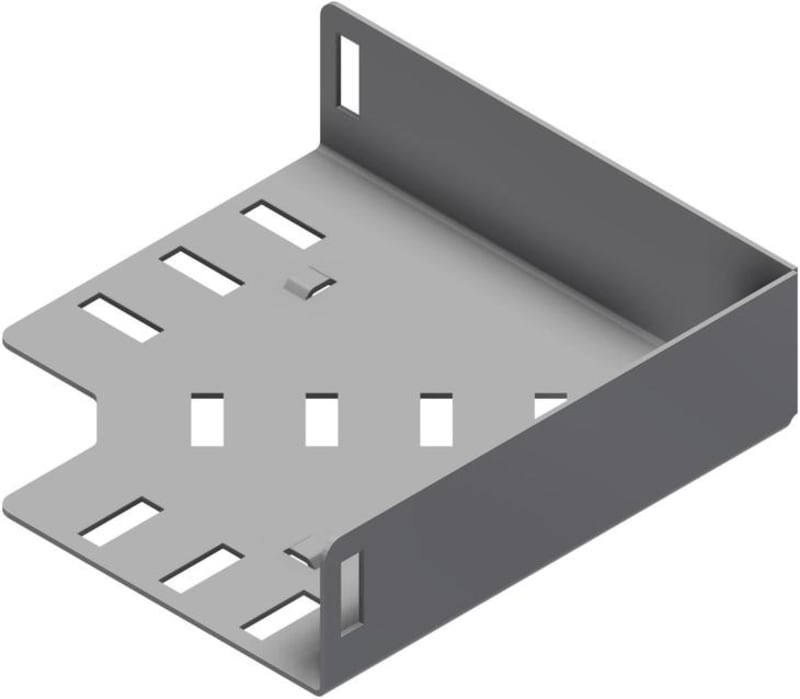

Tube elbow SPBE40 FE-TI-90-100 SS
Pricing
Request a quote
We reply within 24 hours
Product Description
Tube elbow SPBE40 FE-TI-90-100 SS. Flat elbow 90º for tubing installations with integrated splice connectors. Overall dimensions 147 × 147 mm (X × Y), material thickness 1.5 mm, height 41 mm, width 102 mm, radius 65 mm, angle 90°, weight 0.340 kg. ETIM class EC002400 (Bend for cable tray).
Technical Specifications
- Manufacturer part number (MPN)
- SPBE40 FE-TI-90-100 SS
- EAN / GTIN
- 7070693718417
- Sales unit
- pcs
- Type
- Tubing Bend
- T Material Thickness (mm)
- 1.5
- X (mm)
- 147
- Y (mm)
- 147
- W Width (mm)
- 102
- H Height (mm)
- 41
- Radius
- 65
- A Angle (deg)
- 90
- O Overlap Integrated Splice (mm)
- 32
- Fits Tray Width (mm)
- 100
- Weight (kg)
- 0.340
- ETIM class
- EC002400 - Bend for cable tray
- Manufacturer item number
- 1371841
- Hilti item number
- 2307452
- Change of direction
- Horizontal
- Construction type
- Bend rigid
- Bend model
- Smooth bend
- Inner radius
- 65 mm
- Suitable for cable tray height
- 40 mm
- Suitable for cable tray width
- 100 mm
- Material thickness
- 1.5 mm
- Side perforation
- No
- Bottom perforation
- Yes
- Model
- Integrated connector
- Wide span model
- No
- Material
- Stainless steel
- Stainless steel, pickled
- No
- Material quality
- Rustproof and acidproof steel
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693718417
- SAP 1000047559
- Code 8838195
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System Insulating Liner
TAPE-GI-20-10m PTFE
Øglænd System
Øglænd System ETIN Tube Clamp, ME25/IM1"-WH, Stainless Steel/PA
ETIN-S TC-ME25/IM1"-WH SS/PA
Øglænd System
Øglænd System Angle Bracket, 25 mm, Hot-Dip Galvanised
AB-50x50x5-M6/10 HDG
Øglænd System
Øglænd System LOE55 Splice Connector, Hot-Dip Galvanised
LOE55 SC HDG
Øglænd System
Øglænd System UNO Splice Connector, Stainless Steel
UNO SC-D-24 SS
Øglænd System
Øglænd System S-M Cantilever Arm, 200 mm, Hot-Dip Galvanised
CA-35-200 HDG
Øglænd System
Øglænd System UNO Nut, M6, A4 Stainless
UNO NU-M6 A4
Øglænd System
Øglænd System Insulating Liner
50X1200 PTFE
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SPBE40 FE-TI-90-100 SS?
- SPBE40 FE-TI-90-100 SS can be ordered from cballast.com as a Øglænd System catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Øglænd System product?
- The manufacturer part number is SPBE40 FE-TI-90-100 SS.
- What is the HS code for SPBE40 FE-TI-90-100 SS?
- The customs tariff (HS) code for SPBE40 FE-TI-90-100 SS is 7308.90.
- Who manufactures SPBE40 FE-TI-90-100 SS?
- SPBE40 FE-TI-90-100 SS is a Øglænd System product in the Cables & Wiring range.
- Is a datasheet available for SPBE40 FE-TI-90-100 SS?
- Yes — the SPBE40 FE-TI-90-100 SS datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SPBE40 FE-TI-90-100 SS?
- The minimum order quantity is 1.
- Is SPBE40 FE-TI-90-100 SS available?
- Yes — SPBE40 FE-TI-90-100 SS is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
