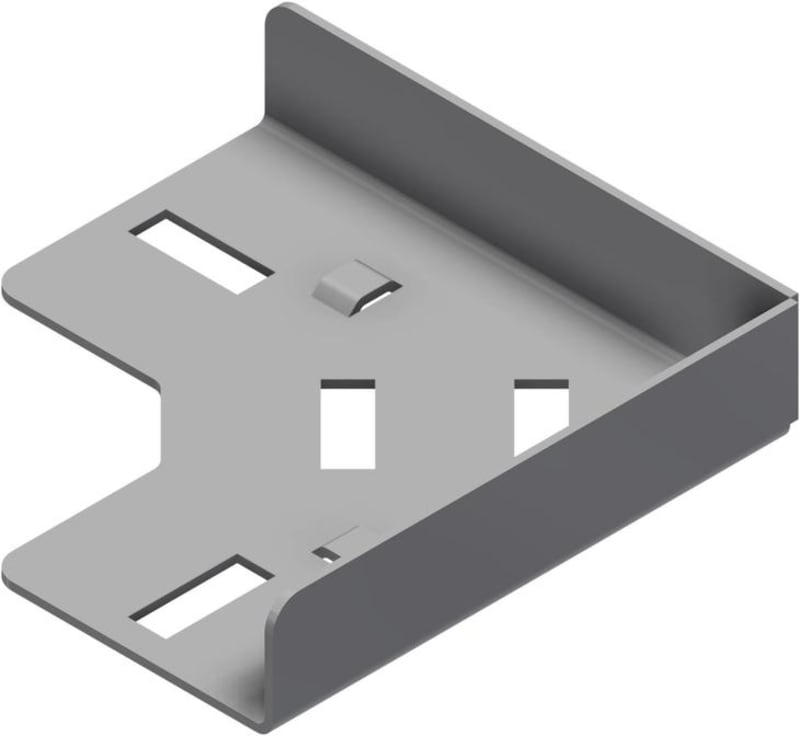

Tube elbow SPBE20 FE-TI-90-50 SS
Pricing
Request a quote
We reply within 24 hours
Product Description
Tube elbow SPBE20 FE-TI-90-50 SS. 90º flat elbow with integrated splice connectors for tubing installations. Overall dimensions 97 × 97 mm (X × Y), material thickness 1.5 mm, height 21 mm, width 52 mm, radius 65 mm, angle 90°, weight 0.130 kg. ETIM class EC002400 (Bend for cable tray).
Technical Specifications
- Manufacturer part number (MPN)
- SPBE20 FE-TI-90-50 SS
- EAN / GTIN
- 7070693718356
- Sales unit
- pcs
- Type
- Tubing Bend
- T Material Thickness (mm)
- 1.5
- X (mm)
- 97
- Y (mm)
- 97
- W Width (mm)
- 52
- H Height (mm)
- 21
- Radius
- 65
- A Angle (deg)
- 90
- O Overlap Integrated Splice (mm)
- 32
- Fits Tray Width (mm)
- 50
- Weight (kg)
- 0.130
- ETIM class
- EC002400 - Bend for cable tray
- CAD models available for
- Hexagon S3D
- Manufacturer item number
- 1371835
- Hilti item number
- 2464641
- Change of direction
- Horizontal
- Construction type
- Bend rigid
- Bend model
- Smooth bend
- Inner radius
- 65 mm
- Suitable for cable tray height
- 20 mm
- Suitable for cable tray width
- 50 mm
- Material thickness
- 1.5 mm
- Side perforation
- No
- Bottom perforation
- Yes
- Model
- Integrated connector
- Wide span model
- No
- Material
- Stainless steel
- Stainless steel, pickled
- No
- Material quality
- Rustproof and acidproof steel
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693718356
- SAP 1000000281
- Code 814571
Product Documentation
