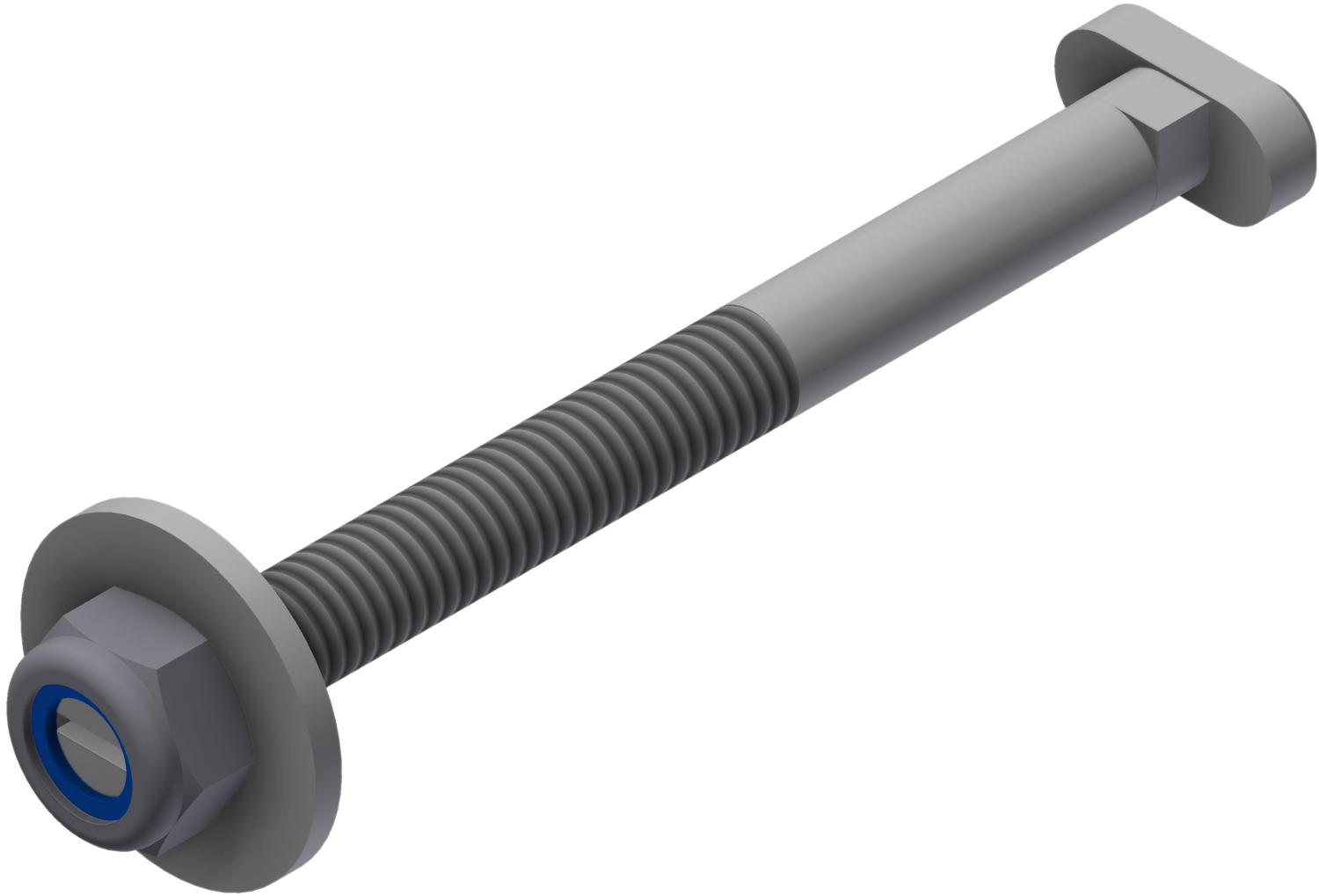

T-bolt set ETIN-D TB-SET-LV2-M6X65 A4
Pricing
Request a quote
We reply within 24 hours
Product Description
T-bolt set ETIN-D TB-SET-LV2-M6x65 A4. T-bolt set complete with nyloc nut for ETIN 6-12mm or 1/2" to 1/4”. Fits ETIN tubing clamps installed in one, two or three levels. Overall dimensions 13.5 × 6.3 mm (X × Y), length 68 mm, weight 0.020 kg. ETIM class EC002354 (T-head bolt).
Technical Specifications
- Manufacturer part number (MPN)
- ETIN-D TB-SET-LV2-M6x65 A4
- EAN / GTIN
- 7070693718325
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Type
- 2 levels (6-12 mm or 1/4"-1/2")
- X (mm)
- 13.5
- Y (mm)
- 6.3
- L Length (mm)
- 68
- D Diameter (mm)
- 17
- Dt Diameter threads (mm)
- 5.3
- Weight (kg)
- 0.020
- ETIM class
- EC002354 - T-head bolt
- Manufacturer item number
- 1371832
- Hilti item number
- 2208745
- Surface protection
- Untreated
- Material quality
- Stainless steel 316 (V4A)
- Length
- 65 mm
- Material
- Stainless steel
- Thread size (metric)
- 6
- Suitable for mounting rail
- Yes
- Head width
- 17 mm
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7318.15
Cross References
- EAN 7070693718325
- SAP 1000070211
- Code 8757533
