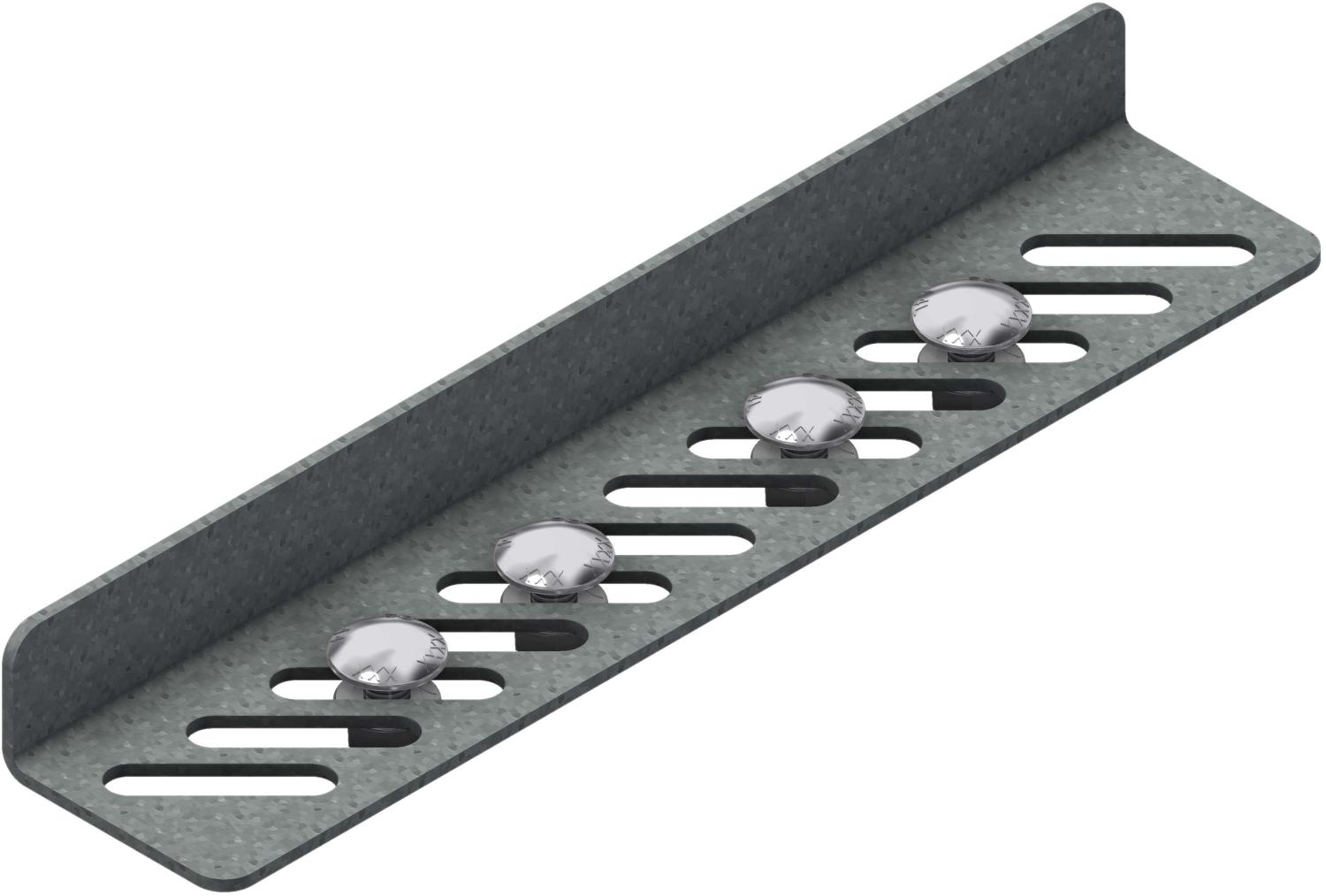

Øglænd System SPBE20 Splice Connector, Hot-Dip Galvanised
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System SPBE20 splice connector, hot-dip galvanised. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- SPBE20 SC-OU HDG
- EAN / GTIN
- 7070693718059
- Sales unit
- pcs
- Type
- Standard Splice
- T Material Thickness (mm)
- 2.0
- X (mm)
- 200
- H Height (mm)
- 22
- Hole size A
- 7x30
- F Flange (mm)
- 40
- Weight (kg)
- 0.160
- ETIM class
- EC002413 - Connector for cable support system
- CAD models available for
- Hexagon S3D
- Manufacturer item number
- 1371805
- Model
- Joint clip bar
- Hinged joint horizontal
- No
- Hinged joint vertical
- No
- Type of connection
- Screw connector
- Suitable for wire mesh tray
- No
- Suitable for cable ladder
- No
- Suitable for cable tray
- Yes
- Suitable for cable support system width
- 300–600 mm
- Suitable for cable management system height
- 20 mm
- Length
- 200 mm
- Material
- Steel
- Stainless steel, pickled
- No
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693718059
- SAP 1000055354
- Code 8845491
Product Documentation
