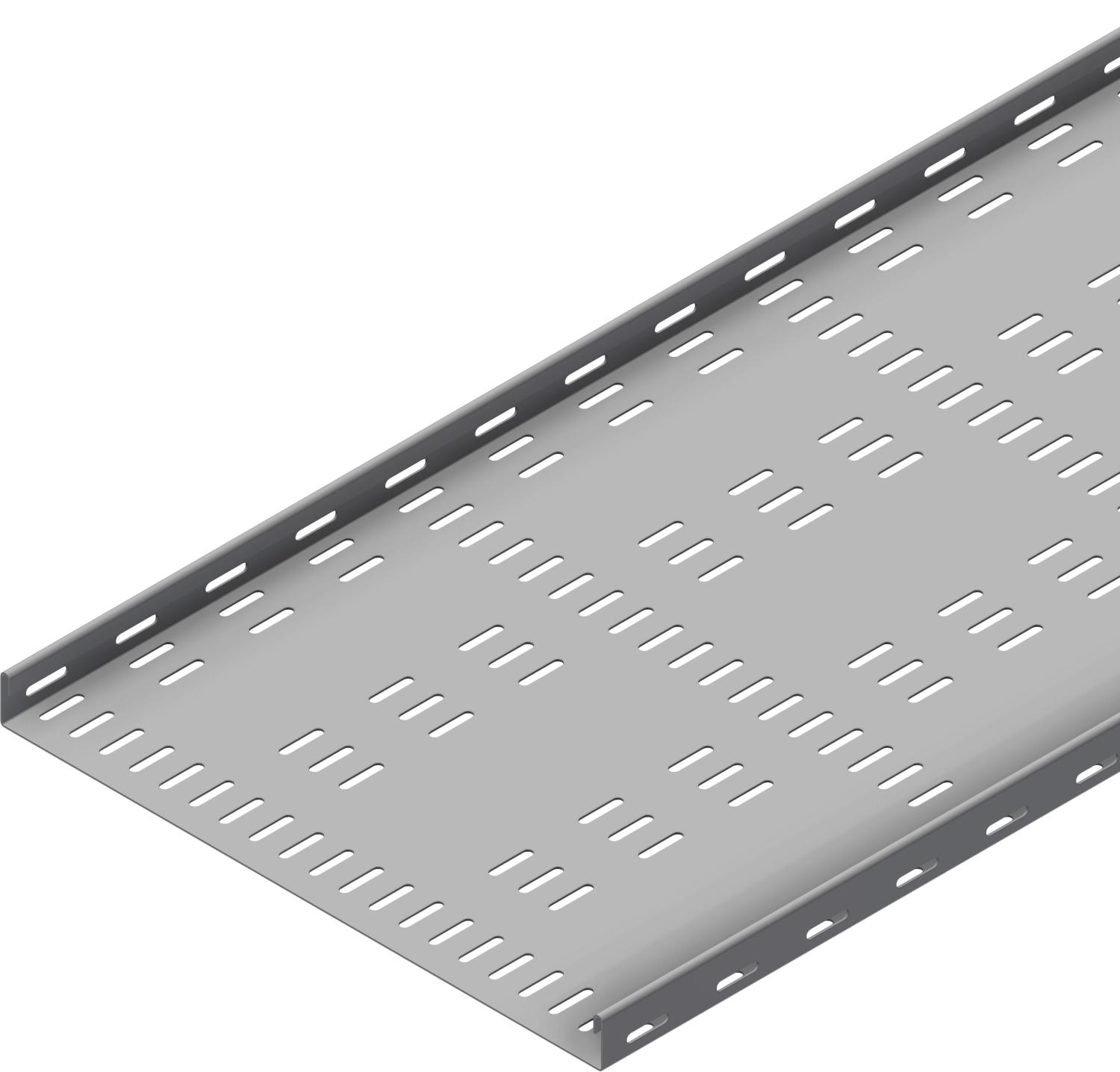

Øglænd System SPB-RF40 Cable Tray, 500 × 40 mm, 1.5 mm, 3 m, Stainless Steel 316
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System SPB-RF40 cable tray, 500 × 40 mm, length 3 m, stainless steel 316. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- SPB-RF40 CT-500-3000-1.5 SS
- EAN / GTIN
- 7070693717571
- Sales unit
- m
- Package quantity
- 3 m
- Type
- Cable tray
- T Material Thickness (mm)
- 1.5
- L Length (mm)
- 3000
- W Width (mm)
- 500
- W1 Width 1 (mm)
- 500
- H Height (mm)
- 40
- CC (mm)
- 100
- CC 1
- 125
- CC 2
- 25
- CC3 (mm)
- 75
- CC4 (mm)
- 300
- Hole size A
- 7x35
- Hole size B
- 7x35
- Weight (kg)
- 20.490
- ETIM class
- EC000047 - Cable tray
- CAD models available for
- AVEVA E3D, Autodesk Revit
- Manufacturer item number
- 1371757
- Hilti item number
- 2230449
- Colour
- None
- Width
- 500 mm
- Model
- Without connector
- Height
- 40 mm
- Surface protection
- Untreated
- Material thickness
- 1.5 mm
- Side perforation
- Yes
- Material quality
- Stainless steel 316 (V4A)
- Length
- 3000 mm
- Material
- Stainless steel
- Bottom perforation
- Yes
- Usable cross section
- 20000 mm²
- NATO-mounting holes
- No
- Stainless steel, pickled
- No
- Wide span model
- Yes
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693717571
- SAP 1000046288
- Code 8797208
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System OE Fixing Clamp, 18 mm, Stainless Steel
OE/LOE FC SS
Øglænd System
Øglænd System Hexagon Bolt, M6 × 16 mm, A4 Stainless
BO-HX-M6x16 A4
Øglænd System
Ladder LOE-100-500 MM SS L=3M
Øglænd System
Øglænd System UNO Channel, 3 mm, Hot-Dip Galvanised
UNO CH-U-41-1-3000 HDG
Øglænd System
Oeglaend System LB-M6x35 A4 Locking Bolt Stainless Steel
Øglænd System
Øglænd System Hexagon Bolt, M10 × 16 mm, A4 Stainless
BO-HX-M10x16 A4
Øglænd System

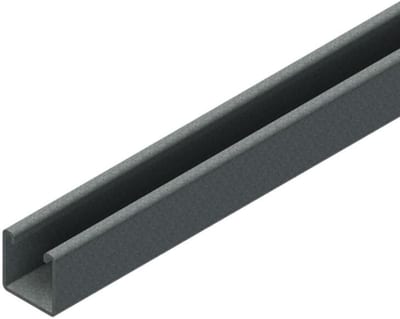

Øglænd System UNO Channel, 41 mm, 6 m, Hot-Dip Galvanised
UNO CH-U-41-1-6000 HDG
Øglænd System

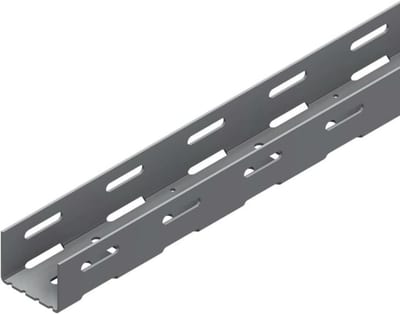

Øglænd System SPBE40 Cable Tray, 50 × 40 mm
