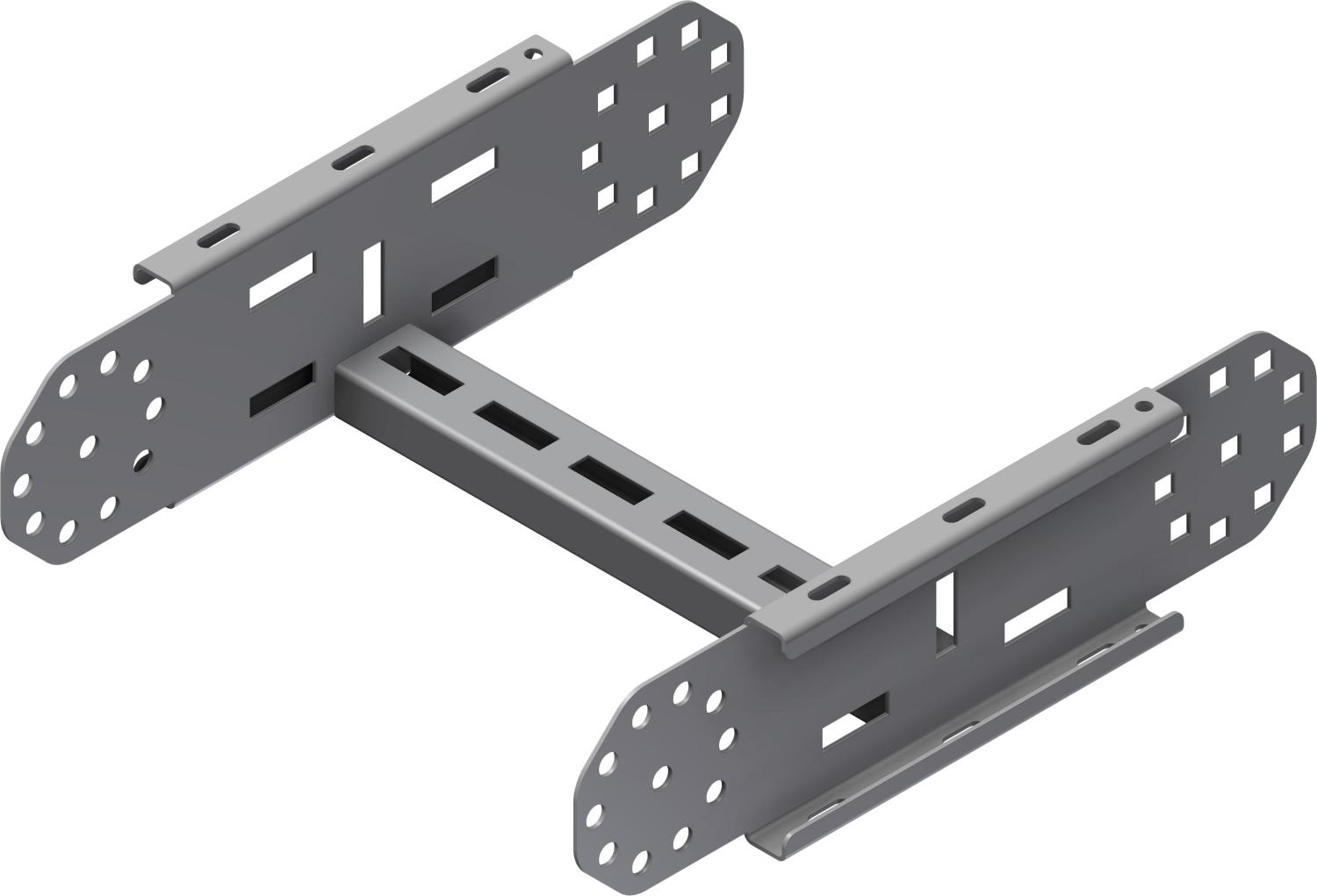

Øglænd System OE100 Riser, 300 mm, Stainless Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System OE100 vertical riser bend, 300 mm, stainless steel. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- OE100 RI-MO-300 PT SS
- EAN / GTIN
- 7070693716437
- Sales unit
- pcs
- Type
- Riser modular part
- T Material Thickness (mm)
- 2.0
- X (mm)
- 390
- W1 Width 1 (mm)
- 300
- H Height (mm)
- 100
- CC (mm)
- 300
- Hole size A
- 11X35
- Hole size B
- Ø11
- Hole size C
- 11X11
- O Overlap Integrated Splice (mm)
- 90
- Weight (kg)
- 1.740
- ETIM class
- EC001535 - Bend for cable ladder
- CAD models available for
- Autodesk Revit
- Manufacturer item number
- 1371643
- Hilti item number
- 2205849
- Change of direction
- Vertically rising
- Type of side joist
- Profile (open)
- Side perforation
- Yes
- Type of rung
- Perforated profile
- Suitable for cable ladder height
- 100 mm
- Suitable for cable ladder width
- 300 mm
- Model
- Integrated connector
- Wide span model
- Yes
- Suitable for circuit integrity
- Yes
- Material
- Steel
- Stainless steel, pickled
- Yes
- Material quality
- Rustproof and acidproof steel
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693716437
- SAP 1000021501
- Code 8494601
Product Documentation
