Øglænd System OE100 Modular Riser 900 mm HDG for Cable Ladder
Pricing
Request a quote
We reply within 24 hours
Product Description

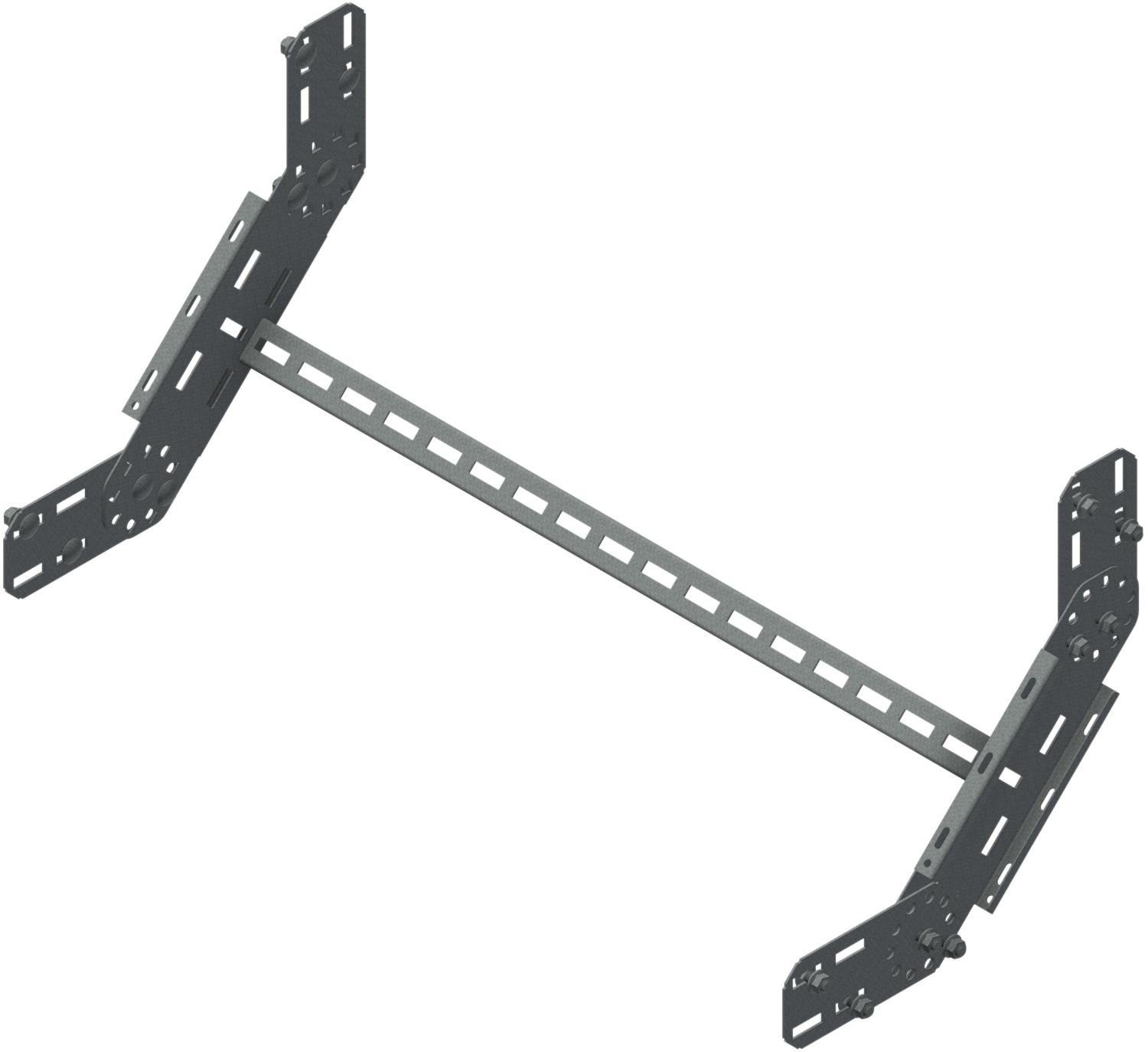

Riser OE100 RI1-MO-900 HDG is a modular cable-ladder riser suitable for both inside and outside changes of direction from 0 to 90 degrees. Vertical slots on the rungs allow flexible cable placement, and the assembly ships complete with two sets of splice connectors and bolts. Overall dimensions are 315.1 x 415.1 mm (X x Y), material thickness 2.0 mm, height 100 mm, width 900 mm, weight 3.700 kg, hole size A 11 x 35, in hot-dip galvanised steel. Classified as ETIM EC001535 (Bend for cable ladder).
Technical Specifications
- Manufacturer part number (MPN)
- OE100 RI1-MO-900 HDG
- EAN / GTIN
- 7070693716352
- Sales unit
- pcs
- Type
- Riser modular
- T Material Thickness (mm)
- 2.0
- X (mm)
- 315.1
- Y (mm)
- 415.1
- W1 Width 1 (mm)
- 900
- H Height (mm)
- 100
- Radius
- See ØI-RD-UG-EN-0412
- A Angle (deg)
- 0-90
- CC (mm)
- 50
- Hole size A
- 11x35
- Hole size B
- Ø11
- Hole size C
- 11x11
- D Hole Size (mm)
- 7x20
- O Overlap Integrated Splice (mm)
- 100
- Weight (kg)
- 3.700
- ETIM class
- EC001535 - Bend for cable ladder
- CAD models available for
- AVEVA E3D, Hexagon S3D
- Manufacturer item number
- 1371635
- Hilti item number
- 2302069
- Change of direction
- Vertically rising
- Type of side joist
- Profile (open)
- Side perforation
- Yes
- Type of rung
- Perforated profile
- Suitable for cable ladder height
- 100 mm
- Suitable for cable ladder width
- 900 mm
- Model
- Integrated connector
- Wide span model
- Yes
- Suitable for circuit integrity
- Yes
- Material
- Steel
- Stainless steel, pickled
- No
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693716352
- SAP 1000009814
- Code 892251
Product Documentation
