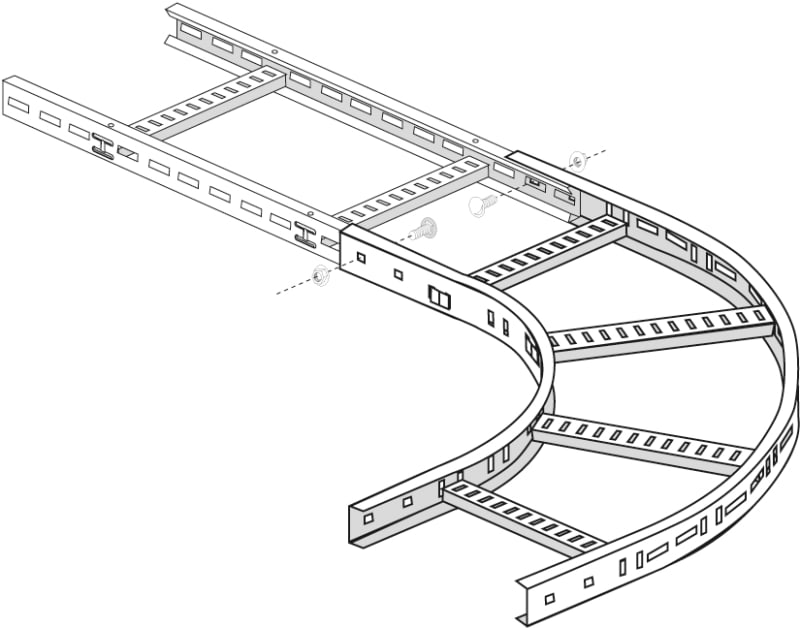

Øglænd System LOE55 Flat Elbow 90°, 600 mm, R300, Hot-Dip Galvanised
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System LOE55 horizontal flat elbow, 90°, 600 mm, radius 300 mm, hot-dip galvanised. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- LOE55 FE90-600-R300 HDG
- EAN / GTIN
- 7070693715300
- Sales unit
- pcs
- T Material Thickness (mm)
- 1.5
- X (mm)
- 1035
- Y (mm)
- 1035
- W Width (mm)
- 609
- W2 Width 2 (mm)
- 569
- H Height (mm)
- 60
- Radius
- 300
- A Angle (deg)
- 90
- CC (mm)
- 25
- Hole size A
- 7x15
- O Overlap Integrated Splice (mm)
- 100
- D Loading depth (mm)
- 27
- Fits Ladder Width (mm)
- 600
- Weight (kg)
- 5.000
- ETIM class
- EC001535 - Bend for cable ladder
- CAD models available for
- AVEVA E3D, Autodesk Revit
- Manufacturer item number
- 1371530
- Hilti item number
- 2301786
- Change of direction
- Horizontal
- Type of side joist
- Profile (open)
- Side perforation
- Yes
- Type of rung
- Perforated profile
- Bend model
- Smooth bend
- Hinging
- No
- Suitable for cable ladder height
- 55 mm
- Suitable for cable ladder width
- 600 mm
- Model
- Integrated connector
- Inner radius
- 300 mm
- Wide span model
- No
- Suitable for circuit integrity
- Yes
- Material
- Steel
- Stainless steel, pickled
- No
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693715300
- SAP 1000032080
- Code 8235043
Product Documentation
