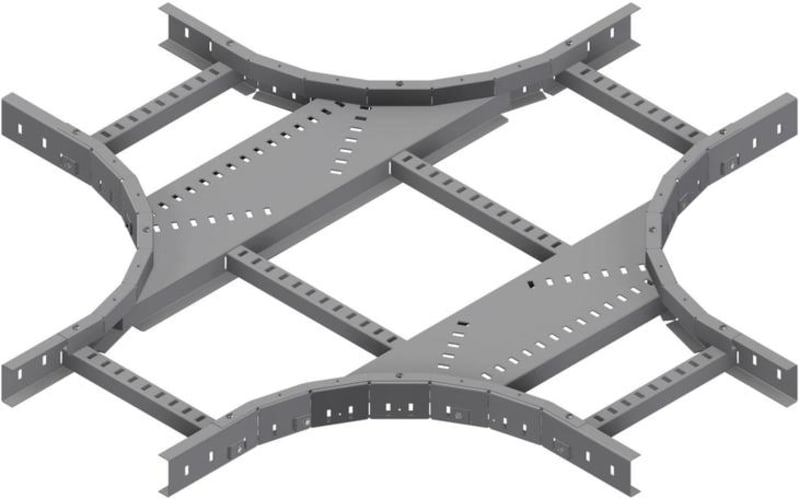

Øglænd System LOE55 Cross, 300/300 mm, R300, Pre-Galvanised
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System LOE55 cross piece, 300/300 mm, radius 300 mm, pre-galvanised. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- LOE55 CP300300-R300 PG
- EAN / GTIN
- 7070693714464
- Sales unit
- pcs
- T Material Thickness (mm)
- 1.5
- X (mm)
- 1159
- Y (mm)
- 1159
- W Width (mm)
- 309
- W2 Width 2 (mm)
- 309
- H Height (mm)
- 60
- Radius
- 300
- A Angle (deg)
- 90°
- CC (mm)
- 25
- Hole size A
- 7x15
- O Overlap Integrated Splice (mm)
- 100
- D Loading depth (mm)
- 27
- Fits Ladder Width (mm)
- 300
- Weight (kg)
- 8.800
- ETIM class
- EC001559 - Cross piece for cable ladder
- CAD models available for
- AVEVA E3D, Hexagon S3D
- Manufacturer item number
- 1371446
- Type of side joist
- Profile (open)
- Type of rung
- Perforated profile
- Suitable for cable ladder height
- 55 mm
- Suitable for cable ladder width
- 300 mm
- Inner radius
- 300 mm
- Wide span model
- No
- Suitable for circuit integrity
- Yes
- Stainless steel, pickled
- No
- Material
- Steel
- Surface protection
- Continuously galvanised
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693714464
- SAP 1000068269
- Code 8745844
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System SPB-RF60 Flat Elbow 90°, 100 mm, R75, Hot-Dip Galvanised
SPB-RF60 FE90-100-R75 HDG
Øglænd System
Øglænd System UNO Splice Angle, Hot-Dip Galvanised
UNO SA-D-76 HDG
Øglænd System
Øglænd System LOE75 Cable Ladder, 200 mm, 3 m, Zinc-Magnesium Coated
1375401
Øglænd System
Øglænd System Bend 90°, 100 mm
FTE-50 FE-90-100
Øglænd System
Øglænd System OE125 Flat Elbow 45°, 300 mm, R600, Hot-Dip Galvanised
1384205
Øglænd System
Øglænd System LOE55 Flat Elbow 90°, 500 mm, R300, Hot-Dip Galvanised
LOE55 FE90-500-R300 HDG
Øglænd System

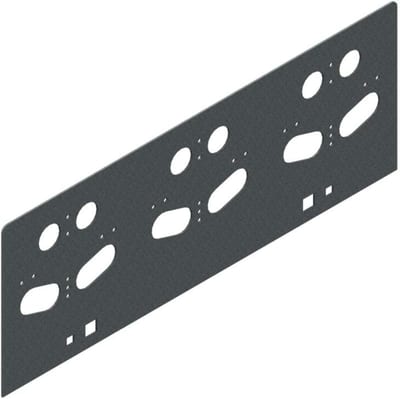

Øglænd System SPB Equipment Bracket, 381 mm, Hot-Dip Galvanised
SPB/LOE E+I-EQ-SI3PT HDG
Øglænd System

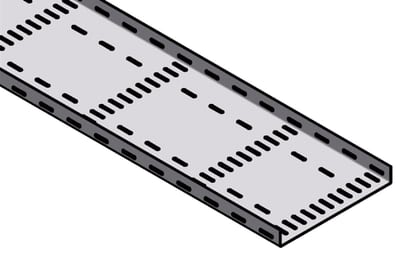

Øglænd System SPBE40 Cable Tray, 400 mm, 3 m
