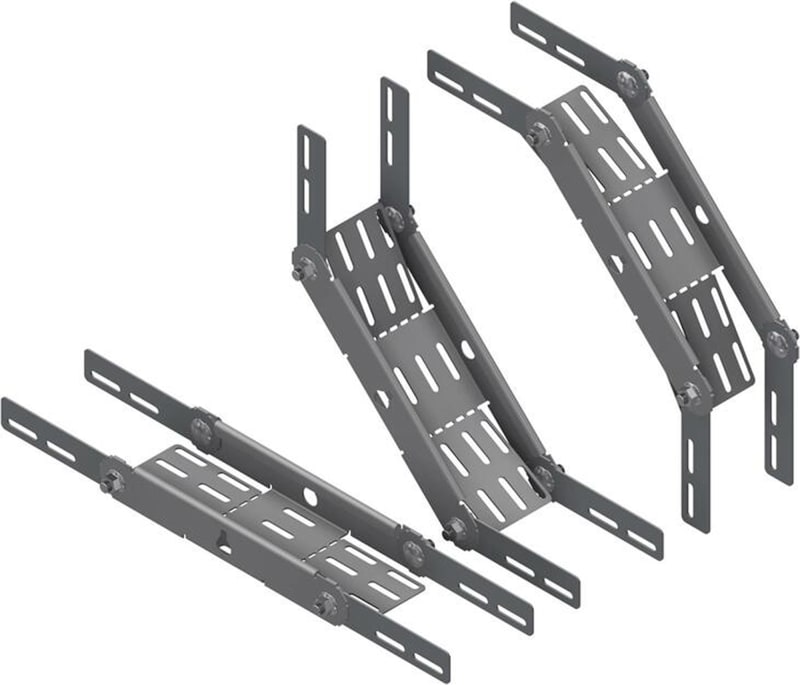

Oglaend System Modular Flexible Vertical Bend 40x200 mm Stainless
Pricing
Request a quote
We reply within 24 hours
Product Description
Oglaend System SPB-RF40 FR1-200 SS is a modular flexible vertical bend for stainless-steel cable tray, adjustable between 0 and 90 degrees for both rising and descending changes of direction. It suits a tray height of 40 mm and width of 200 mm, with an inner radius of 175 mm, integrated connector, cover, and 1.5 mm rustproof and acid-proof stainless steel construction. The bend is used in offshore and process-industry cable-management runs where corrosion resistance and circuit-integrity capability are required.
Technical Specifications
- Manufacturer part number (MPN)
- SPB-RF40 FR1-200 SS
- EAN / GTIN
- 7070693078344
- Sales unit
- pcs
- Change of direction
- Rising/descending
- Construction type
- Vertical adjustable bend complete
- With cover
- Yes
- Inner radius
- 175 mm
- Suitable for cable tray height
- 40 mm
- Suitable for cable tray width
- 200 mm
- Material thickness
- 1.5 mm
- Side perforation
- Yes
- Bottom perforation
- Yes
- Model
- Integrated connector
- Wide span model
- No
- Suitable for circuit integrity
- Yes
- Material
- Stainless steel
- Stainless steel, pickled
- No
- Material quality
- Rustproof and acidproof steel
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693078344
- SAP 1200570795
- Code 82969355
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System U-Bolt, M8, A4 Stainless
UB-SQ-SHS-100-M8 A4
Øglænd System
Øglænd System U-Bolt, M8, A4 Stainless
UB-SQ-SHS-50-M8 A4
Øglænd System
S-M CH50-2T2.5-3000 (Mekano CH50-2T-2.5-MD-3000 SS)
Øglænd System
Øglænd System U-Bolt, M8, Stainless Steel
UB-1"-M8 SS
Øglænd System
Øglænd System SPB Edge Protection
SPB-LB EP-RQ EPDM
Øglænd System
Øglænd System SPB-RF40 Cable Tray, 150 × 40 mm, 1.5 mm, 3 m, Hot-Dip Galvanised
SPB-RF40 CT-150-3000-1.5 HDG
Øglænd System
Øglænd System OE150 Splice Connector, Stainless Steel
OE150 SC-NO SS
Øglænd System
Oglaend System S-M LS-M10x25 A4 Carriage Bolt, Stainless A4
S-M LS-M10X25 A4
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SPB-RF40 FR1-200 SS?
- SPB-RF40 FR1-200 SS can be ordered from cballast.com as a Øglænd System catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Øglænd System product?
- The manufacturer part number is SPB-RF40 FR1-200 SS.
- What is the HS code for SPB-RF40 FR1-200 SS?
- The customs tariff (HS) code for SPB-RF40 FR1-200 SS is 7308.90.
- Who manufactures SPB-RF40 FR1-200 SS?
- SPB-RF40 FR1-200 SS is a Øglænd System product in the Cables & Wiring range.
- Is a datasheet available for SPB-RF40 FR1-200 SS?
- Yes — the SPB-RF40 FR1-200 SS datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SPB-RF40 FR1-200 SS?
- The minimum order quantity is 1.
- Is SPB-RF40 FR1-200 SS available?
- Yes — SPB-RF40 FR1-200 SS is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
