Interface bracket IF-UNO-Z-D-102-B HDG
Pricing
Request a quote
We reply within 24 hours
Product Description

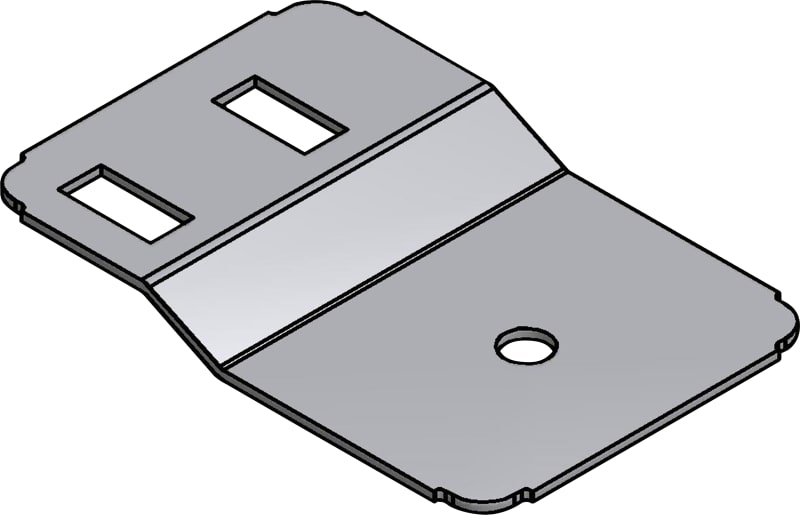

Interface bracket IF-UNO-Z-D-102-B HDG. Adjustable bracket to install ETIN tubing clamps on UNO channels. Overall dimensions 56 × 83 mm (X × Z), material thickness 1.5 mm, hole size A 7x16, weight 0.052 kg. ETIM class EC001005 (Mounting material for cable support system).
Technical Specifications
- Manufacturer part number (MPN)
- IF-UNO-Z-D-102-B HDG
- EAN / GTIN
- 7070693021920
- Sales unit
- pcs
- Type
- Tubing Bracket
- Application area
- UNO Support Channels
- T Material Thickness (mm)
- 1.5
- X (mm)
- 56
- Z (mm)
- 83
- CC (mm)
- 25
- Hole size A
- 7x16
- Hole size B
- 7
- Weight (kg)
- 0.052
- ETIM class
- EC001005 - Mounting material for cable support system
- Manufacturer item number
- 1302192
- Hilti item number
- 2276326
- Colour
- None
- Width
- 83 mm
- Model
- Profile console
- Height
- 7.5 mm
- Length
- 56 mm
- Material
- Steel
- Stainless steel, pickled
- No
- Suitable for circuit integrity
- No
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693021920
- SAP 1000010182
- Code 880428
Product Documentation
