Tube elbow SPBE40 FE-TI-90-200 HDG
Pricing
Request a quote
We reply within 24 hours
Product Description

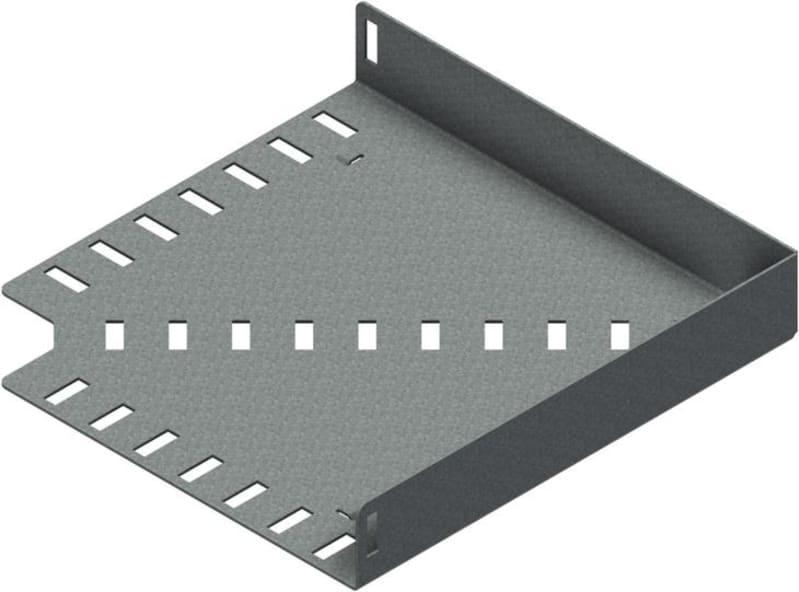

Tube elbow SPBE40 FE-TI-90-200 HDG. Flat elbow 90º for tubing installations with integrated splice connectors. Overall dimensions 247 × 247 mm (X × Y), material thickness 1.5 mm, height 41 mm, width 202 mm, radius 65 mm, angle 90°, weight 1.260 kg. ETIM class EC002400 (Bend for cable tray).
Technical Specifications
- Manufacturer part number (MPN)
- SPBE40 FE-TI-90-200 HDG
- EAN / GTIN
- 7070693021838
- Sales unit
- pcs
- Type
- Tubing Bend
- T Material Thickness (mm)
- 1.5
- X (mm)
- 247
- Y (mm)
- 247
- W Width (mm)
- 202
- H Height (mm)
- 41
- Radius
- 65
- A Angle (deg)
- 90
- O Overlap Integrated Splice (mm)
- 32
- Fits Tray Width (mm)
- 200
- Weight (kg)
- 1.260
- ETIM class
- EC002400 - Bend for cable tray
- CAD models available for
- Hexagon S3D
- Manufacturer item number
- 1302183
- Hilti item number
- 2344841
- Change of direction
- Horizontal
- Construction type
- Bend rigid
- Bend model
- Smooth bend
- Inner radius
- 65 mm
- Suitable for cable tray height
- 40 mm
- Suitable for cable tray width
- 200 mm
- Material thickness
- 1.5 mm
- Side perforation
- No
- Bottom perforation
- Yes
- Model
- Integrated connector
- Wide span model
- No
- Material
- Steel
- Stainless steel, pickled
- No
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693021838
- SAP 1000045121
- Code 8527776
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System UNO Square Washer, Hot-Dip Galvanised
UNO WA-SQ-D-134-M12 HDG
Øglænd System
Øglænd System Hexagon Bolt, M6 × 30 mm, Hot-Dip Galvanised
BO-HX-M6x30 HDG
Øglænd System
TOE LP-RO-Ø20-25 HDG
1301551
Øglænd System
Flat iron FI-CW-30-3000-5-M6 HDG
Øglænd System

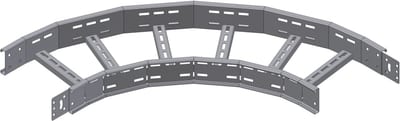

Øglænd System OE100 Flat Elbow 90°, 300 mm, R900, Stainless Steel
OE100 FE90-300-R900 SS
Øglænd System

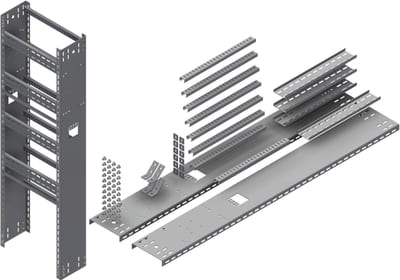

Øglænd System OER250 Rack, 1200 × 1990 mm, Stainless Steel
OER250 RK-1200-1990 SS
Øglænd System

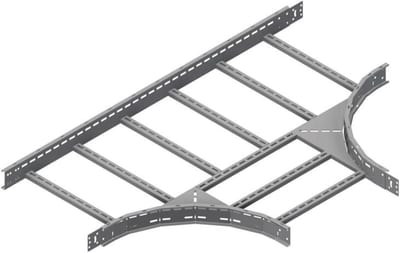

Øglænd System OE100 Tee, 600/600 mm, R600, Stainless Steel
OE100 TE600/600-R600 SS
Øglænd System

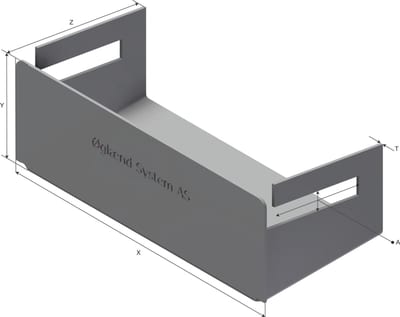

Øglænd System SPB-LB40 End Cover
1306835
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SPBE40 FE-TI-90-200 HDG?
- SPBE40 FE-TI-90-200 HDG can be ordered from cballast.com as a Øglænd System catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Øglænd System product?
- The manufacturer part number is SPBE40 FE-TI-90-200 HDG.
- What is the HS code for SPBE40 FE-TI-90-200 HDG?
- The customs tariff (HS) code for SPBE40 FE-TI-90-200 HDG is 7308.90.
- Who manufactures SPBE40 FE-TI-90-200 HDG?
- SPBE40 FE-TI-90-200 HDG is a Øglænd System product in the Cables & Wiring range.
- Is a datasheet available for SPBE40 FE-TI-90-200 HDG?
- Yes — the SPBE40 FE-TI-90-200 HDG datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SPBE40 FE-TI-90-200 HDG?
- The minimum order quantity is 1.
- Is SPBE40 FE-TI-90-200 HDG available?
- Yes — SPBE40 FE-TI-90-200 HDG is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
