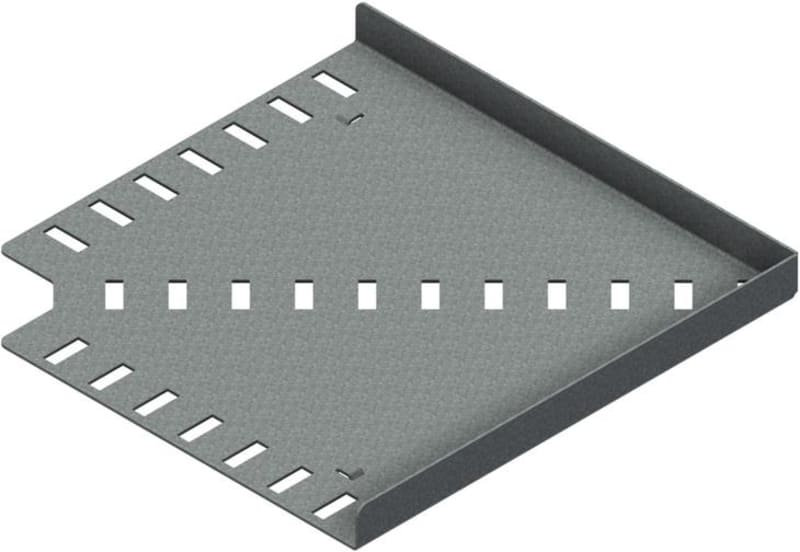

Tube elbow SPBE20 FE-TI-90-200 HDG
Pricing
Request a quote
We reply within 24 hours
Product Description
Tube elbow SPBE20 FE-TI-90-200 HDG. 90º flat elbow with integrated splice connectors for tubing installations. Overall dimensions 247 × 247 mm (X × Y), material thickness 1.5 mm, height 21 mm, width 202 mm, radius 65 mm, angle 90°, weight 1.100 kg. ETIM class EC002400 (Bend for cable tray).
Technical Specifications
- Manufacturer part number (MPN)
- SPBE20 FE-TI-90-200 HDG
- EAN / GTIN
- 7070693021784
- Sales unit
- pcs
- Type
- Tubing Bend
- T Material Thickness (mm)
- 1.5
- X (mm)
- 247
- Y (mm)
- 247
- W Width (mm)
- 202
- H Height (mm)
- 21
- Radius
- 65
- A Angle (deg)
- 90
- O Overlap Integrated Splice (mm)
- 32
- Fits Tray Width (mm)
- 200
- Weight (kg)
- 1.100
- ETIM class
- EC002400 - Bend for cable tray
- CAD models available for
- Hexagon S3D
- Manufacturer item number
- 1302178
- Change of direction
- Horizontal
- Construction type
- Bend rigid
- Bend model
- Smooth bend
- Inner radius
- 65 mm
- Suitable for cable tray height
- 20 mm
- Suitable for cable tray width
- 200 mm
- Material thickness
- 1.5 mm
- Side perforation
- No
- Bottom perforation
- Yes
- Model
- Integrated connector
- Wide span model
- No
- Material
- Steel
- Stainless steel, pickled
- No
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693021784
- SAP 1000078899
- Code 8767974
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System Mekano Channel, 3 m, Stainless Steel
Mekano CH50-2-1.5-3000 SS
Øglænd System
Øglænd System OE100 Tee, 750/750 mm, R600, Hot-Dip Galvanised
OE100 TE750/750 R600
Øglænd System

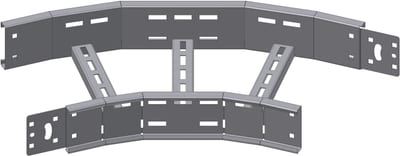

Øglænd System OE100 Bend 45°, 150 mm, R900, Stainless Steel
OE100 FE-45-150 R900
Øglænd System

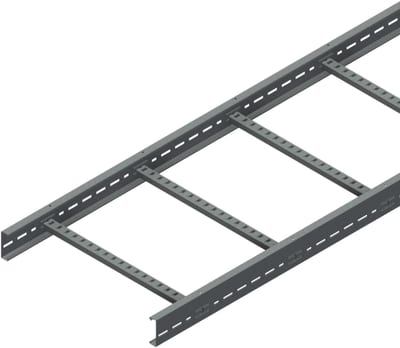

Øglænd System LOE75 Cable Ladder, 500 mm, 3 m, Hot-Dip Galvanised
LOE75 CL-500-3000 HDG
Øglænd System

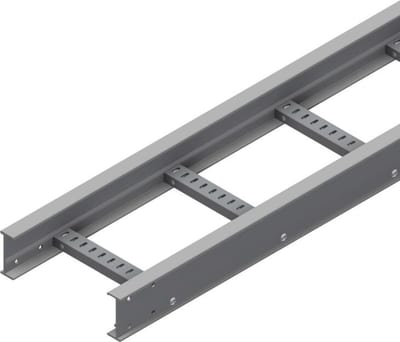

Øglænd System FOE-100 Cable Ladder, 150 × 100 mm, 3 m
CABLE LADDER FOE-100 CL-150-3
Øglænd System

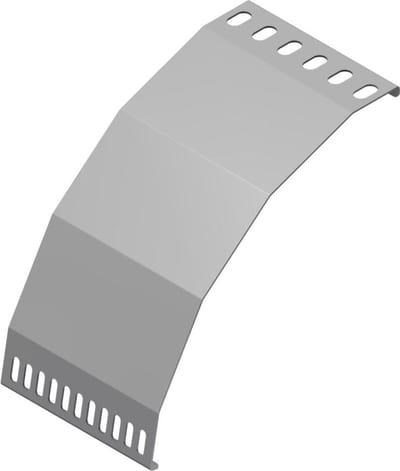

Øglænd System LOE Cable Exit Plate, Pre-Galvanised
LOE EX-RU-150 PT PG
Øglænd System

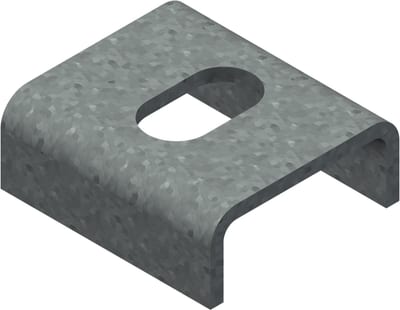

Øglænd System OE Fixing Clamp, 36 mm, M10, Hot-Dip Galvanised
OE/LOE FC-M10 PT HDG
Øglænd System

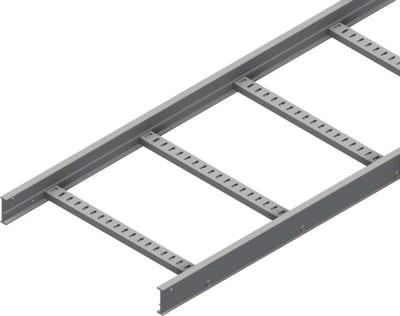

Øglænd System FOE-70 Cable Ladder, 500 × 70 mm, 3 m
