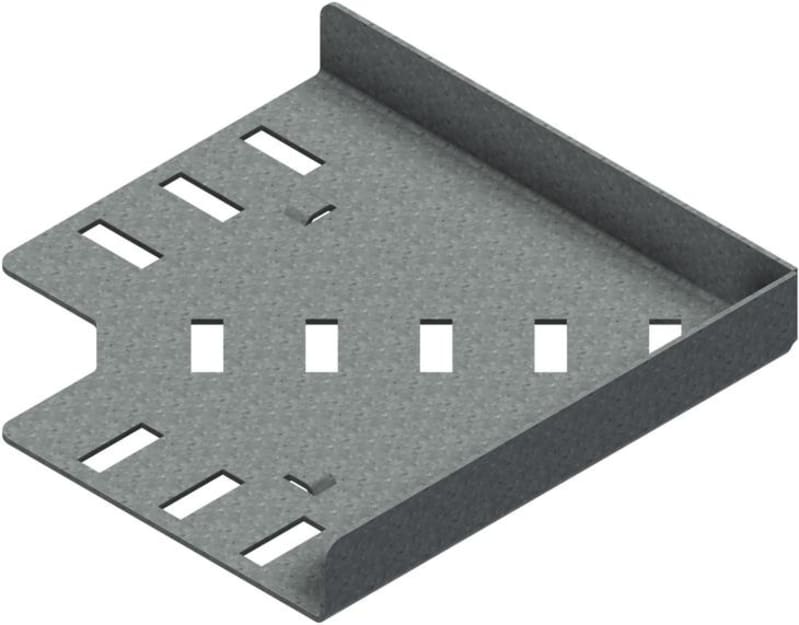

Tube elbow SPBE20 FE-TI-90-100 HDG
Pricing
Request a quote
We reply within 24 hours
Product Description
Tube elbow SPBE20 FE-TI-90-100 HDG. 90º flat elbow with integrated splice connectors for tubing installations. Overall dimensions 147 × 147 mm (X × Y), material thickness 1.5 mm, height 21 mm, width 102 mm, radius 65 mm, angle 90°, weight 0.400 kg. ETIM class EC002400 (Bend for cable tray).
Technical Specifications
- Manufacturer part number (MPN)
- SPBE20 FE-TI-90-100 HDG
- EAN / GTIN
- 7070693021760
- Sales unit
- pcs
- Type
- Tubing Bend
- T Material Thickness (mm)
- 1.5
- X (mm)
- 147
- Y (mm)
- 147
- W Width (mm)
- 102
- H Height (mm)
- 21
- Radius
- 65
- A Angle (deg)
- 90
- O Overlap Integrated Splice (mm)
- 32
- Fits Tray Width (mm)
- 100
- Weight (kg)
- 0.400
- ETIM class
- EC002400 - Bend for cable tray
- CAD models available for
- Hexagon S3D
- Manufacturer item number
- 1302176
- Change of direction
- Horizontal
- Construction type
- Bend rigid
- Bend model
- Smooth bend
- Inner radius
- 65 mm
- Suitable for cable tray height
- 20 mm
- Suitable for cable tray width
- 100 mm
- Material thickness
- 1.5 mm
- Side perforation
- No
- Bottom perforation
- Yes
- Model
- Integrated connector
- Wide span model
- No
- Material
- Steel
- Stainless steel, pickled
- No
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693021760
- SAP 1000012232
- Code 8111527
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System UNO Splice Angle, Hot-Dip Galvanised
UNO SA-D-49 HDG
Øglænd System
Øglænd System Cable Tray, 100 × 50 mm, 3 mm, 3 m, GRP (FRP)
FTE-50 CT-100
Øglænd System
Øglænd System OE100 Riser, 750 mm, Stainless Steel
OE100 RI-MO-750 PT SS
Øglænd System
Øglænd System SPB-LB55 Cable Tray, 600 × 55 mm, 1.5 mm, 3 m, Pre-Galvanised
SPB-LB55 CT-600-3000-1.5 PG
Øglænd System
Øglænd System Nut, M8 × 13 mm, Hot-Dip Galvanised
NU-HX-M8 HDG
Øglænd System
Øglænd System S-M Cantilever Arm, 200 mm, Hot-Dip Galvanised
Mekano CA-38-200 PT HDG
Øglænd System
Øglænd System S-TOE Pendant Bracket, 300 mm, Stainless Steel/HDG
S-TOE CS-RO-H-300
Øglænd System
Øglænd System SPB-LB40 Splice Connector, Pre-Galvanised
SPB-LB40 SC PG
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SPBE20 FE-TI-90-100 HDG?
- SPBE20 FE-TI-90-100 HDG can be ordered from cballast.com as a Øglænd System catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Øglænd System product?
- The manufacturer part number is SPBE20 FE-TI-90-100 HDG.
- What is the HS code for SPBE20 FE-TI-90-100 HDG?
- The customs tariff (HS) code for SPBE20 FE-TI-90-100 HDG is 7308.90.
- Who manufactures SPBE20 FE-TI-90-100 HDG?
- SPBE20 FE-TI-90-100 HDG is a Øglænd System product in the Cables & Wiring range.
- Is a datasheet available for SPBE20 FE-TI-90-100 HDG?
- Yes — the SPBE20 FE-TI-90-100 HDG datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SPBE20 FE-TI-90-100 HDG?
- The minimum order quantity is 1.
- Is SPBE20 FE-TI-90-100 HDG available?
- Yes — SPBE20 FE-TI-90-100 HDG is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
