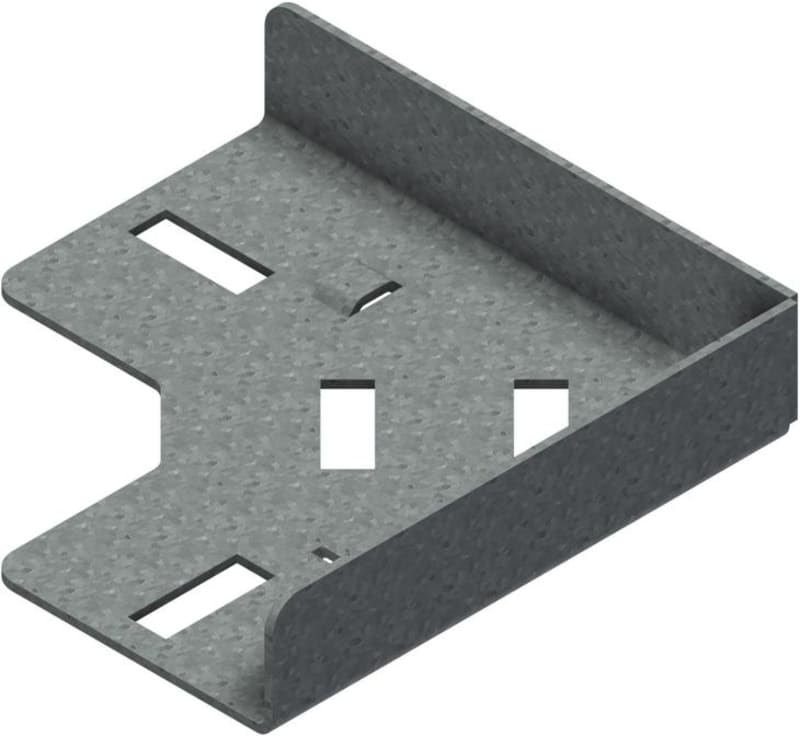

Tube elbow SPBE20 FE-TI-90-50 HDG
Pricing
Request a quote
We reply within 24 hours
Product Description
Tube elbow SPBE20 FE-TI-90-50 HDG. 90º flat elbow with integrated splice connectors for tubing installations. Overall dimensions 97 × 97 mm (X × Y), material thickness 1.5 mm, height 21 mm, width 52 mm, radius 65 mm, angle 90°, weight 0.130 kg. ETIM class EC002400 (Bend for cable tray).
Technical Specifications
- Manufacturer part number (MPN)
- SPBE20 FE-TI-90-50 HDG
- EAN / GTIN
- 7070693021753
- Sales unit
- pcs
- Type
- Tubing Bend
- T Material Thickness (mm)
- 1.5
- X (mm)
- 97
- Y (mm)
- 97
- W Width (mm)
- 52
- H Height (mm)
- 21
- Radius
- 65
- A Angle (deg)
- 90
- O Overlap Integrated Splice (mm)
- 32
- Fits Tray Width (mm)
- 50
- Weight (kg)
- 0.130
- ETIM class
- EC002400 - Bend for cable tray
- CAD models available for
- Hexagon S3D
- Manufacturer item number
- 1302175
- Change of direction
- Horizontal
- Construction type
- Bend rigid
- Bend model
- Smooth bend
- Inner radius
- 65 mm
- Suitable for cable tray height
- 20 mm
- Suitable for cable tray width
- 50 mm
- Material thickness
- 1.5 mm
- Side perforation
- No
- Bottom perforation
- Yes
- Model
- Integrated connector
- Wide span model
- No
- Material
- Steel
- Stainless steel, pickled
- No
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693021753
- SAP 1000038517
- Code 8519002
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System OE100 Hinge, Stainless Steel
OE100 HI-HO SS
Øglænd System
Øglænd System TOE Hanger, Stainless Steel
1302673
Øglænd System
Øglænd System OE Flat Elbow 90°, 300 mm, R600, Stainless Steel
OE CO-FE-90-300 R600 SS
Øglænd System
Øglænd System Mekano Starter Bracket, Stainless Steel
Mekano 100-4Q ST-WD-BP-NP SS
Øglænd System

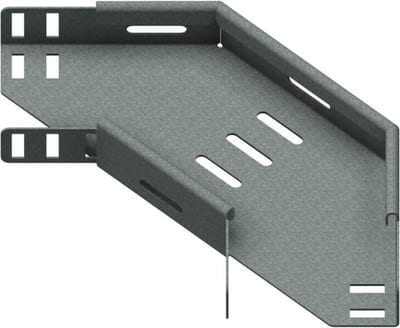

Øglænd System SPB-RF40 Flat Elbow 90°, 100 mm, R75, Hot-Dip Galvanised
SPB-RF40 FE90-100-R75 HDG
Øglænd System

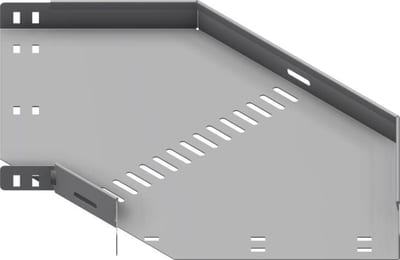

Øglænd System SPB-LB55 Flat Elbow 90°, 500 mm, R75, Pre-Galvanised
SPB-LB55 FE90-500-R75 PG
Øglænd System

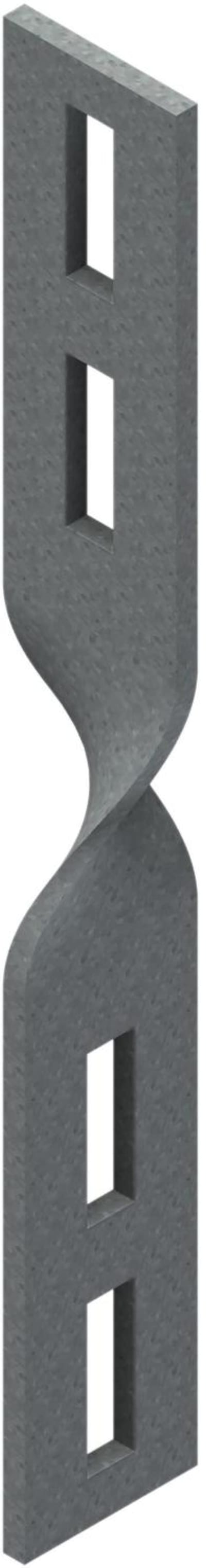

Øglænd System OE100 Intermediate Bracket, 40 mm, Hot-Dip Galvanised
OE100 IF-TW-40-290 HDG
Øglænd System

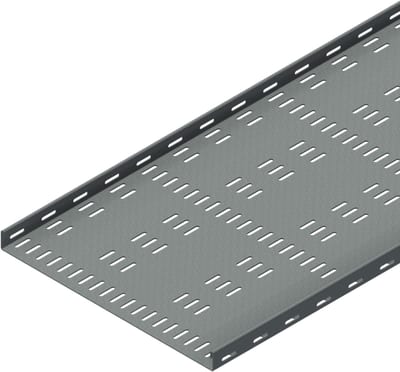

Øglænd System SPB-RF40 Cable Tray, 500 × 40 mm, 2 mm, 3 m, Hot-Dip Galvanised
