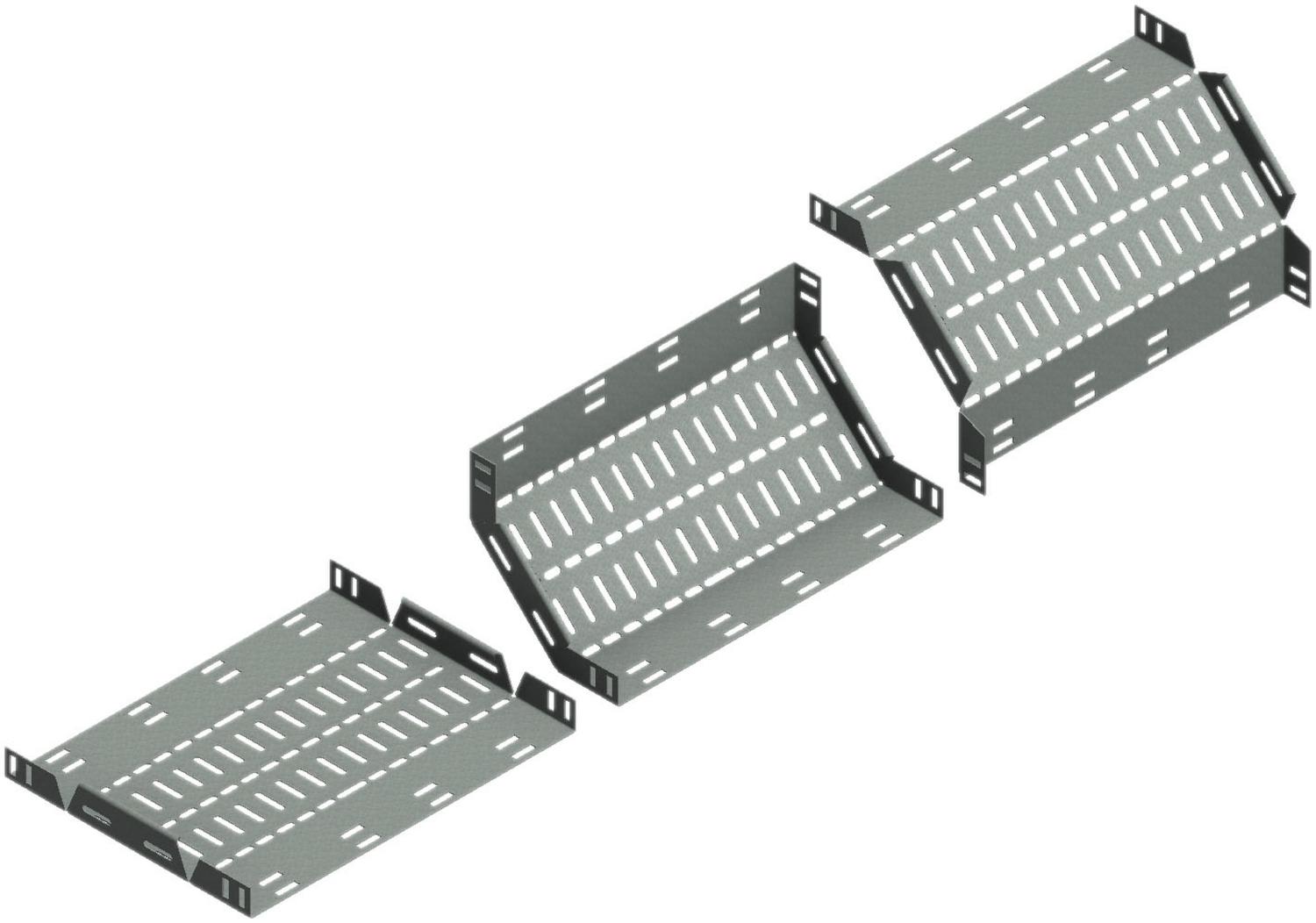

Øglænd System SPB40 Riser, 400 mm, Hot-Dip Galvanised
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System SPB40 vertical riser bend, 400 mm, hot-dip galvanised. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- SPB40 RI-FX-400 PT HDG
- EAN / GTIN
- 7070693021067
- Sales unit
- pcs
- Type
- Riser flexible
- T Material Thickness (mm)
- 1.5
- X (mm)
- 90.In-144.Out
- Y (mm)
- 90.In-144.Out
- W Width (mm)
- 400
- H Height (mm)
- 40
- Radius
- 105
- A Angle (deg)
- 0-90
- Hole size A
- 7x20
- Hole size B
- 7x35
- Hole size C
- 7x35
- O Overlap Integrated Splice (mm)
- 55
- Fits Tray Width (mm)
- 400
- Weight (kg)
- 1.590
- ETIM class
- EC002400 - Bend for cable tray
- CAD models available for
- AVEVA E3D, Hexagon S3D, Autodesk Revit
- Manufacturer item number
- 1302106
- Hilti item number
- 2298079
- Change of direction
- Rising/descending
- Construction type
- Vertical adjustable bend complete
- Bend model
- Smooth bend
- Inner radius
- 105 mm
- Suitable for cable tray height
- 40 mm
- Suitable for cable tray width
- 400 mm
- Material thickness
- 1.5 mm
- Side perforation
- Yes
- Bottom perforation
- Yes
- Model
- Integrated connector
- Material
- Steel
- Stainless steel, pickled
- No
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693021067
- SAP 1000014882
- Code 8115732
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System UNO Gusset Plate, Hot-Dip Galvanised
UNO GP-D-33 HDG
Øglænd System
Øglænd System SPB-RF40 Flat Elbow 45°, 200 mm, R75, Hot-Dip Galvanised
SPB-RF40 FE45-200-R75 HDG
Øglænd System

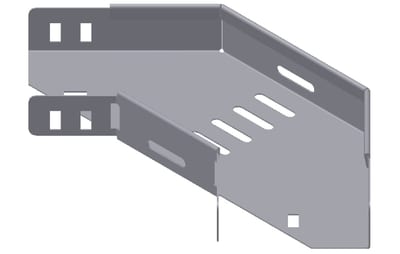

Øglænd System SPB-LB40 Flat Elbow 90°, 200 mm, R75
1303404
Øglænd System

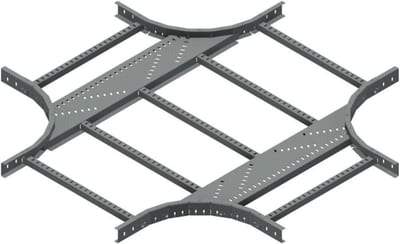

Øglænd System LOE55 Cross, 600/600 mm, R300, Hot-Dip Galvanised
LOE55 CP600600-R300 HDG
Øglænd System

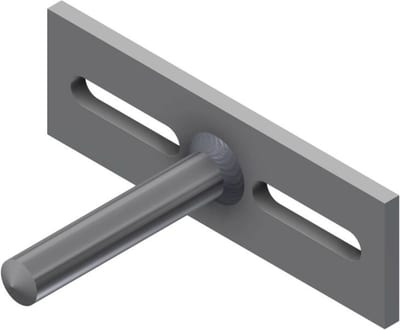

Øglænd System T-SUPPORT STUDW-01 10x50 SS T-Mount Stainless Steel
Øglænd System

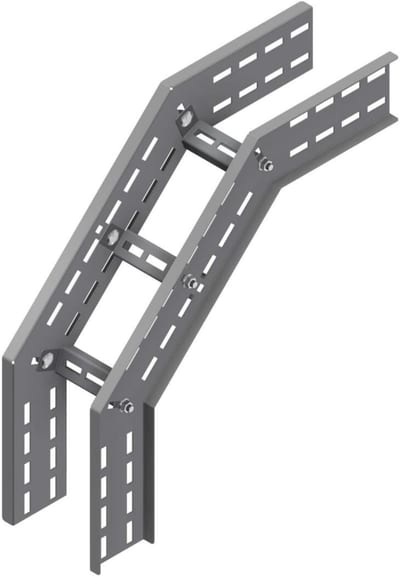

Øglænd System Side Combiriser LOE/OE100 SS Stainless Steel
SIDE COMBIRISER LOE/OE100 SS
Øglænd System
Øglænd System Hexagon Bolt, M12 × 25 mm, Hot-Dip Galvanised
BO-HX-M12x25 HDG
Øglænd System

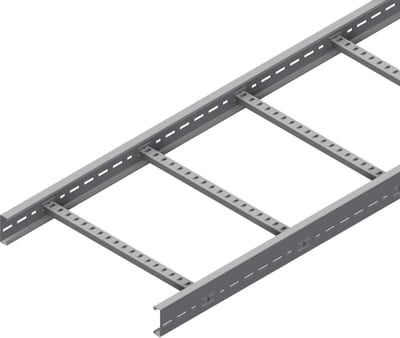

Øglænd System LOE75 Cable Ladder, 500 mm, 3 m
