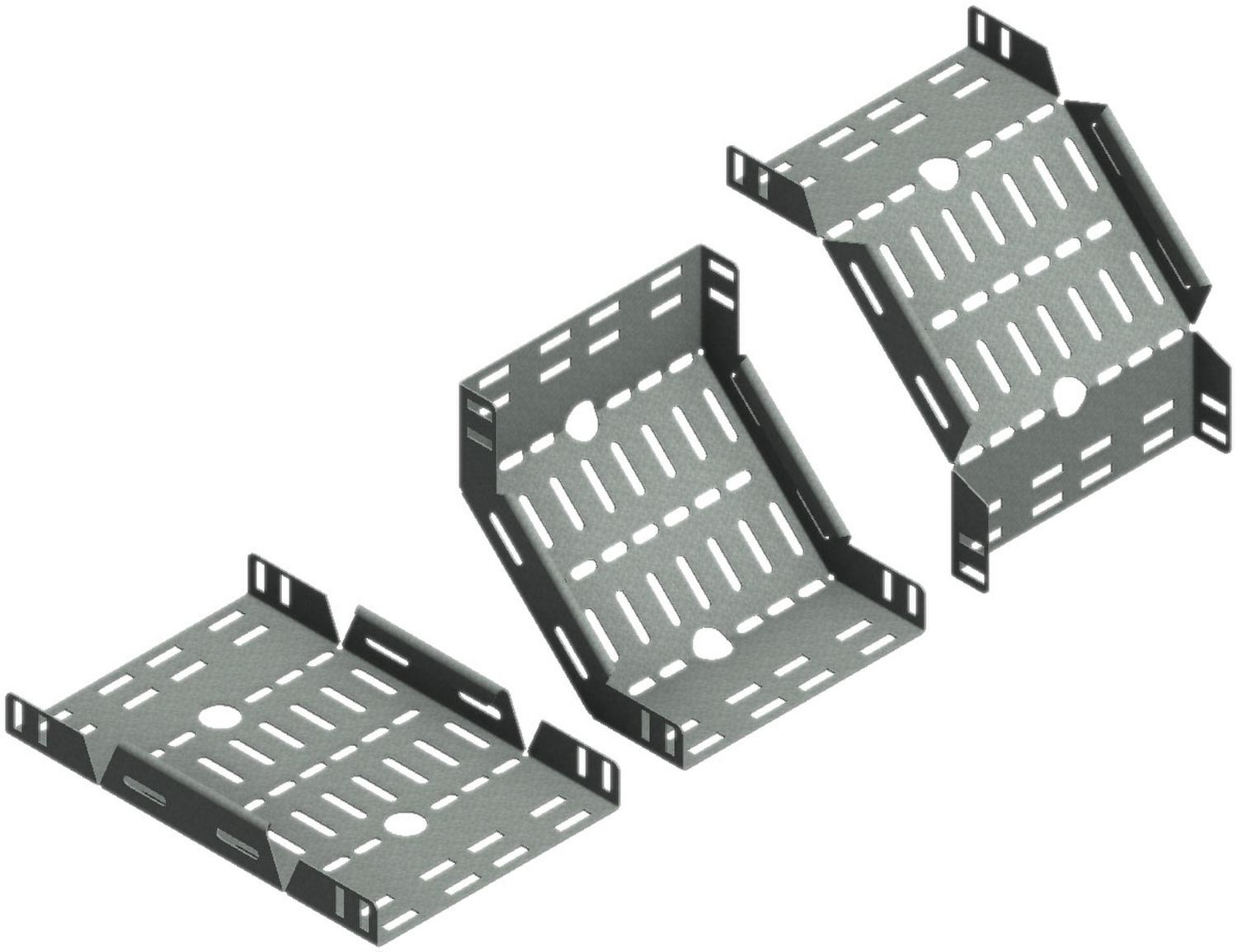

Øglænd System SPB40 Riser, 200 mm, Hot-Dip Galvanised
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System SPB40 vertical riser bend, 200 mm, hot-dip galvanised. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- SPB40 RI-FX-200 PT HDG
- EAN / GTIN
- 7070693021043
- Sales unit
- pcs
- Type
- Riser flexible
- T Material Thickness (mm)
- 1.5
- X (mm)
- 90.In-144.Out
- Y (mm)
- 90.In-144.Out
- W Width (mm)
- 200
- H Height (mm)
- 40
- Radius
- 105
- A Angle (deg)
- 0-90
- Hole size A
- 7x20
- Hole size B
- Ø25
- Hole size C
- 7x35
- O Overlap Integrated Splice (mm)
- 55
- Fits Tray Width (mm)
- 200
- Weight (kg)
- 0.870
- ETIM class
- EC002400 - Bend for cable tray
- CAD models available for
- AVEVA E3D, Hexagon S3D, Autodesk Revit
- Manufacturer item number
- 1302104
- Hilti item number
- 2276416
- Change of direction
- Rising/descending
- Construction type
- Vertical adjustable bend complete
- Bend model
- Smooth bend
- Inner radius
- 105 mm
- Suitable for cable tray height
- 40 mm
- Suitable for cable tray width
- 200 mm
- Material thickness
- 1.5 mm
- Side perforation
- Yes
- Bottom perforation
- Yes
- Model
- Integrated connector
- Material
- Steel
- Stainless steel, pickled
- No
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693021043
- SAP 1000075536
- Code 8782847
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System LOE Central Support, 50 mm, Hot-Dip Galvanised
LOE CS-CH50-600 HDG
Øglænd System
Øglænd System SPB-LB40 Cable Tray, 400 × 40 mm, 1.25 mm, 3 m, Pre-Galvanised
SPB-LB40 CT-400-3000-1.25 PG
Øglænd System
Øglænd System LOE Intermediate Bracket, 120 mm, Hot-Dip Galvanised
LOE/TOE IF-CS-CH-120 HDG
Øglænd System
Øglænd System OE100 Flat Elbow 90°, 150 mm, R900, Stainless Steel
OE100 FE90-150-R900 SS
Øglænd System
Øglænd System TOE Luminaire Fixing, Hot-Dip Galvanised
TOE LF-CH-1000 HDG
Øglænd System
Øglænd System S-SPB Angle Bracket, Pre-Galvanised
SPB-LB ST-BO-CS PG
Øglænd System

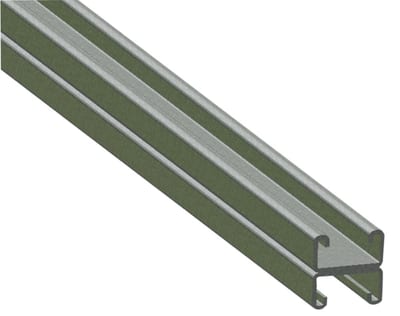

Øglænd System UNO Channel, 2 mm, Stainless Steel
UNO CH-U-21-2-6000 SS
Øglænd System

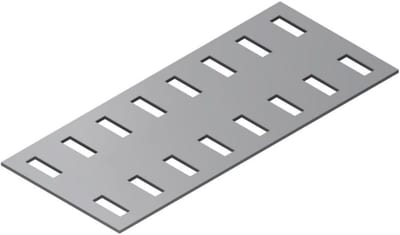

Øglænd System SPB SC splice plate 85 × 200 mm, aluminium
