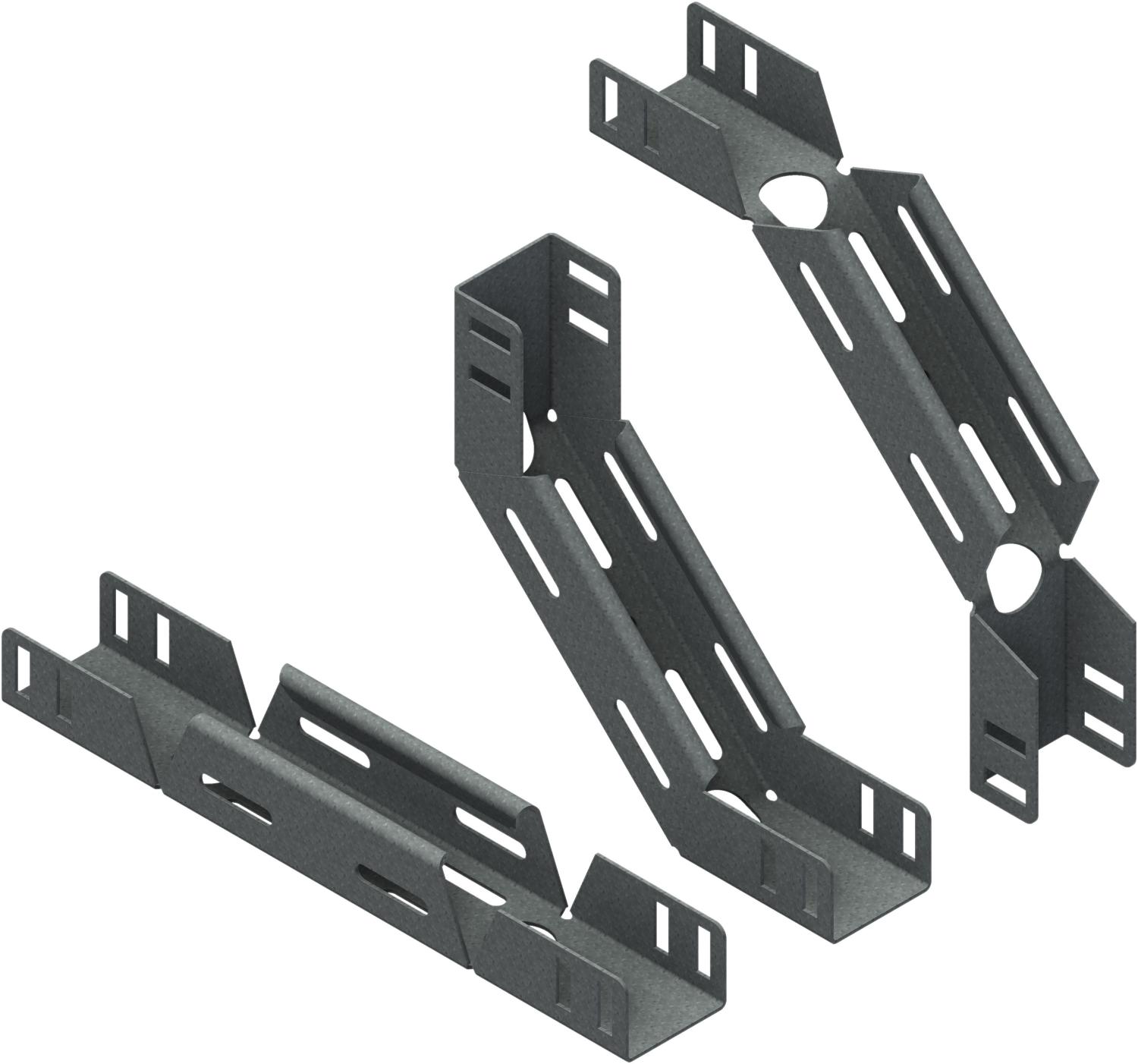

Øglænd System SPB40 Riser, 50 mm, Hot-Dip Galvanised
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System SPB40 vertical riser bend, 50 mm, hot-dip galvanised. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- SPB40 RI-FX-50 PT HDG
- EAN / GTIN
- 7070693021012
- Sales unit
- pcs
- Type
- Riser flexible
- T Material Thickness (mm)
- 1.5
- X (mm)
- 90.In-144.Out
- Y (mm)
- 90.In-144.Out
- W Width (mm)
- 50
- H Height (mm)
- 40
- Radius
- 105
- A Angle (deg)
- 0-90
- Hole size A
- 7x20
- Hole size B
- Ø25
- Hole size C
- 7x35
- O Overlap Integrated Splice (mm)
- 55
- Fits Tray Width (mm)
- 50
- Weight (kg)
- 0.400
- ETIM class
- EC002400 - Bend for cable tray
- CAD models available for
- AVEVA E3D, Hexagon S3D, Autodesk Revit
- Manufacturer item number
- 1302101
- Hilti item number
- 2254053
- Change of direction
- Rising/descending
- Construction type
- Vertical adjustable bend complete
- Bend model
- Smooth bend
- Inner radius
- 105 mm
- Suitable for cable tray height
- 40 mm
- Suitable for cable tray width
- 50 mm
- Material thickness
- 1.5 mm
- Side perforation
- Yes
- Bottom perforation
- Yes
- Model
- Integrated connector
- Material
- Steel
- Stainless steel, pickled
- No
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693021012
- SAP 1000001974
- Code 815837
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System LOE Divider, 3 m, Hot-Dip Galvanised
LOE DI-CH-3000 HDG
Øglænd System
Øglænd System TOE100 Cable Ladder, 400 mm, 6 m, Hot-Dip Galvanised
TOE100 CL-400-6000 HDG
Øglænd System
LOE75 LF-400-THORN-2B SS
1302674
Øglænd System

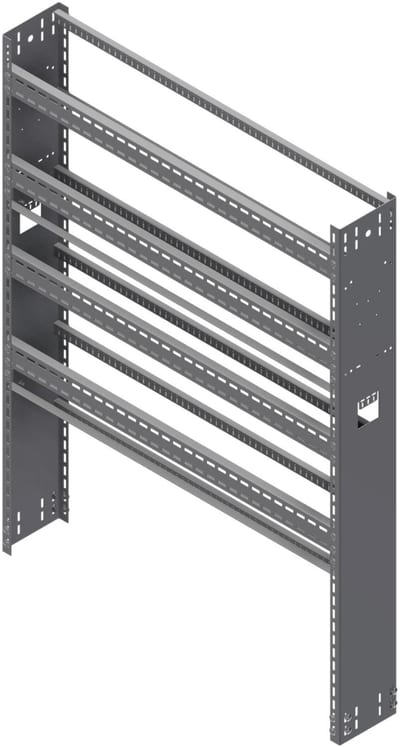

Øglænd System OER250 Rack, 1500 × 1990 mm, Stainless Steel
OER250 RK-1500-1990 AU SS
Øglænd System

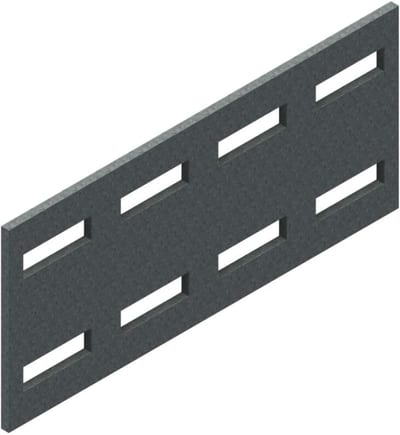

Øglænd System LOE100 Splice Connector, Hot-Dip Galvanised
OE/LOE100 SC HDG
Øglænd System

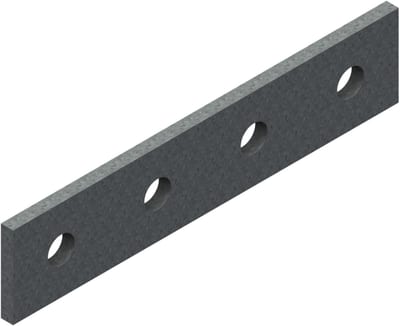

Øglænd System UNO Splice Connector, Hot-Dip Galvanised
UNO SC-D-24 HDG
Øglænd System

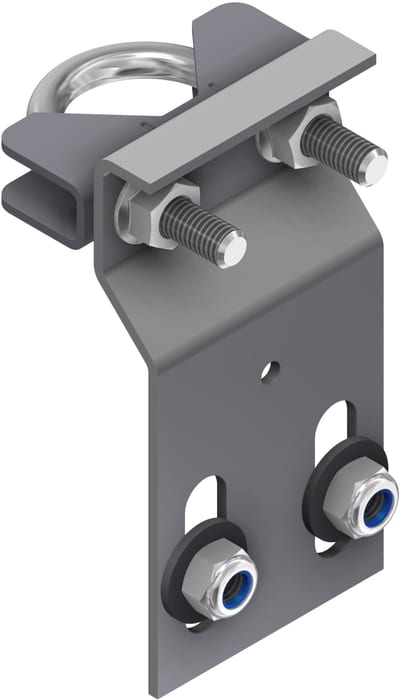

TOE LP-RO-Ø20-25 SS (1301549)
