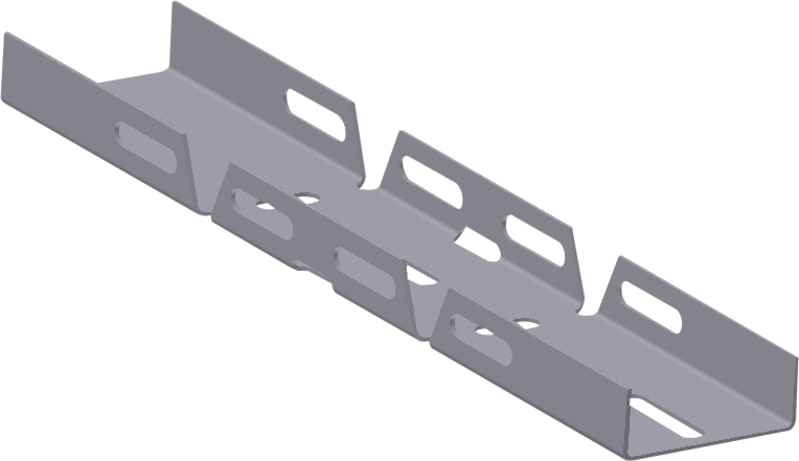

Øglænd System SPBE20 Riser, 50 mm, Stainless Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System SPBE20 vertical riser bend, 50 mm, stainless steel. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- SPBE20 RI-FX-50 PT SS
- EAN / GTIN
- 7070693020930
- Sales unit
- pcs
- Type
- Riser flexible
- T Material Thickness (mm)
- 1.5
- X (mm)
- 71.In-112.Out
- Y (mm)
- 71.In-112.Out
- W Width (mm)
- 50
- H Height (mm)
- 20
- Radius
- 105
- A Angle (deg)
- 0-90
- Hole size A
- 7x35
- Hole size B
- 7x30
- Hole size C
- 7x20
- O Overlap Integrated Splice (mm)
- 90
- Fits Tray Width (mm)
- 50
- Weight (kg)
- 0.290
- ETIM class
- EC002400 - Bend for cable tray
- CAD models available for
- AVEVA E3D, Hexagon S3D
- Manufacturer item number
- 1302093
- Hilti item number
- 2269833
- Change of direction
- Rising/descending
- Construction type
- Vertical adjustable bend complete
- Inner radius
- 105 mm
- Suitable for cable tray height
- 20 mm
- Suitable for cable tray width
- 50 mm
- Material thickness
- 1.5 mm
- Side perforation
- Yes
- Bottom perforation
- Yes
- Model
- Integrated connector
- Material
- Stainless steel
- Stainless steel, pickled
- No
- Material quality
- Rustproof and acidproof steel
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693020930
- SAP 1000079352
- Code 8570625
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System SPB Equipment Bracket, 40 mm, Stainless Steel
SPB E+I-EQ-SI SS
Øglænd System
Øglænd System S-TOE Pendant Bracket, 200 mm, Hot-Dip Galvanised
TOE CS-RO-Ø20-25-200 HDG
Øglænd System
Øglænd System SPB-RF40 End Cover, Stainless Steel
1300735
Øglænd System
Øglænd System Hexagon Bolt, M10 × 50 mm, A4 Stainless
BO-HX-M10x50 A4
Øglænd System

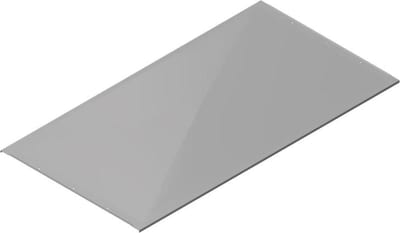

Øglænd System OE Cover, 750 mm, 1.5 m, Hot-Dip Galvanised
OE CO-CL-750-1500-2.0 HDG
Øglænd System

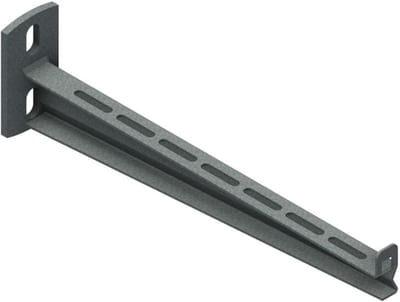

Øglænd System S-M Cantilever Arm, 300 mm, Hot-Dip Galvanised
CA-35-300 HDG
Øglænd System

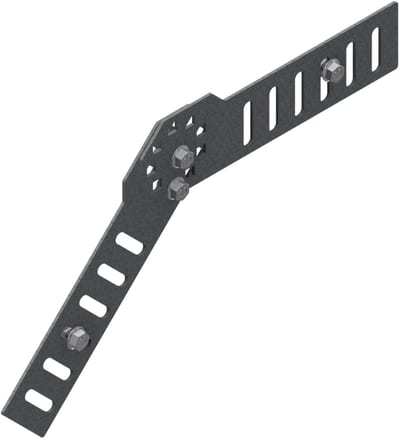

Øglænd System SPB-RF60 Hinge, Hot-Dip Galvanised
SPB-RF60 HI-VE HDG
Øglænd System

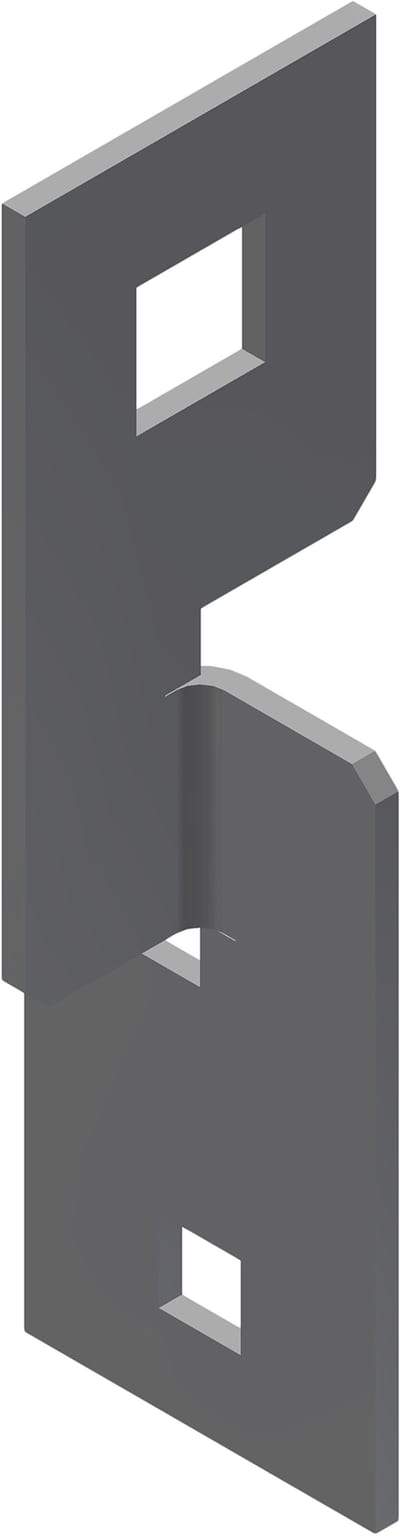

Transition Bracket A-OE/SPB-RF-IF-97 SS
