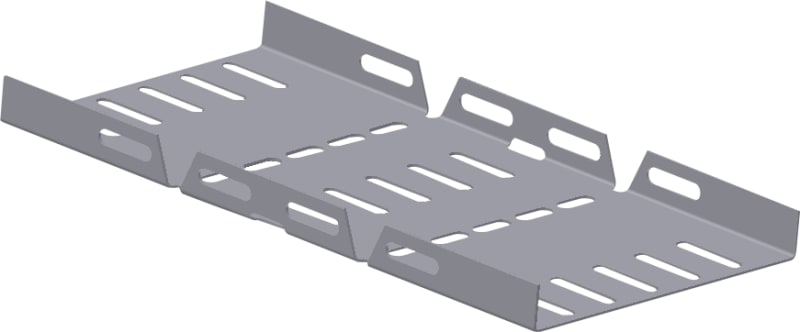

Øglænd System SPBE20 Riser, 150 mm, Hot-Dip Galvanised
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System SPBE20 vertical riser bend, 150 mm, hot-dip galvanised. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- SPBE20 RI-FX-150 PT HDG
- EAN / GTIN
- 7070693020879
- Sales unit
- pcs
- Type
- Riser flexible
- T Material Thickness (mm)
- 1.5
- X (mm)
- 71.In-112.Out
- Y (mm)
- 71.In-112.Out
- W Width (mm)
- 150
- H Height (mm)
- 20
- Radius
- 105
- A Angle (deg)
- 0-90
- Hole size A
- 7x35
- Hole size B
- 7x30
- Hole size C
- 7x20
- O Overlap Integrated Splice (mm)
- 90
- Fits Tray Width (mm)
- 150
- Weight (kg)
- 0.650
- ETIM class
- EC002400 - Bend for cable tray
- CAD models available for
- Hexagon S3D
- Manufacturer item number
- 1302087
- Hilti item number
- 2301340
- Change of direction
- Rising/descending
- Construction type
- Vertical adjustable bend complete
- Inner radius
- 105 mm
- Suitable for cable tray height
- 20 mm
- Suitable for cable tray width
- 150 mm
- Material thickness
- 1.5 mm
- Side perforation
- Yes
- Bottom perforation
- Yes
- Model
- Integrated connector
- Material
- Steel
- Stainless steel, pickled
- No
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693020879
- SAP 1000054067
- Code 8879401
Product Documentation
