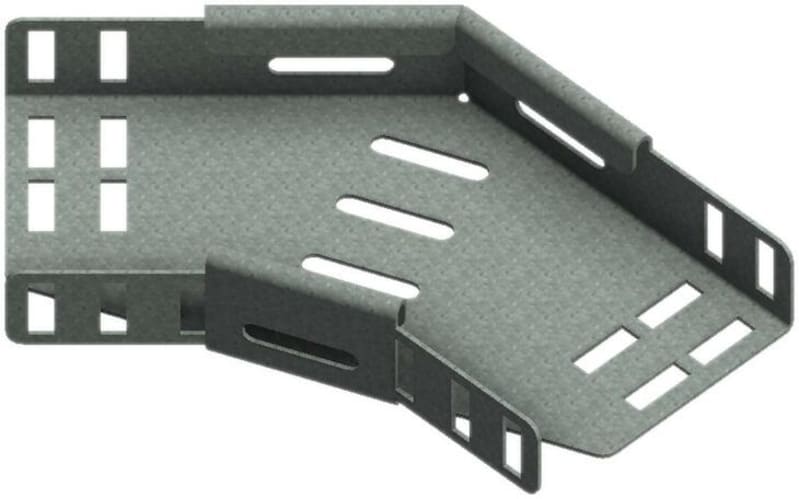

Øglænd System SPB-RF40 Flat Elbow 45°, 100 mm, R75, Hot-Dip Galvanised
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System SPB-RF40 horizontal flat elbow, 45°, 100 mm, radius 75 mm, hot-dip galvanised. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- SPB-RF40 FE45-100-R75 HDG
- EAN / GTIN
- 7070693020565
- Sales unit
- pcs
- Type
- Standard Flat elbow
- T Material Thickness (mm)
- 1.5
- X (mm)
- 50
- Y (mm)
- 121
- W Width (mm)
- 100
- H Height (mm)
- 38.5
- Radius
- 75
- A Angle (deg)
- 45
- Hole size A
- 7x20
- Hole size B
- 7x20
- O Overlap Integrated Splice (mm)
- 55
- Fits Tray Width (mm)
- 100
- Weight (kg)
- 0.460
- ETIM class
- EC002400 - Bend for cable tray
- CAD models available for
- AVEVA E3D, Hexagon S3D, Autodesk Revit
- Manufacturer item number
- 1302056
- Hilti item number
- 2298539
- Change of direction
- Horizontal
- Construction type
- Bend rigid
- Bend model
- Smooth bend
- Inner radius
- 75 mm
- Suitable for cable tray height
- 40 mm
- Suitable for cable tray width
- 100 mm
- Material thickness
- 1.5 mm
- Side perforation
- Yes
- Bottom perforation
- Yes
- Model
- Integrated connector
- Wide span model
- Yes
- Material
- Steel
- Stainless steel, pickled
- No
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693020565
- SAP 1000079769
- Code 8843027
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System SmartCleat Cable Cleat, Stainless Steel
SmartCleat single Ø 1X45-46
Øglænd System
Øglænd System OE100 Reducer, Hot-Dip Galvanised
OE100 RE-Z-450 HDG
Øglænd System
Øglænd System Riser
SPBE-FR3-600 ALU
Øglænd System
Øglænd System SmartCleat Cable Cleat, TPV
1301547
Øglænd System
Øglænd System SPB-RF40 Flat Elbow 45°, 300 mm, R75, Stainless Steel
SPB-RF40 FE45-300-R75 SS
Øglænd System
STUDW-12 10X50 (T-Support STUDW-12-10X50 SS)
T-SUPPORT STUDW-12-10x50 SS
Øglænd System
Øglænd System Mekano Starter Bracket, 140 mm, Hot-Dip Galvanised
Mekano 50/100-2T ST-WD-140 HDG
Øglænd System
Mekano 100-Q ST-BO-150 SS
1372492
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SPB-RF40 FE45-100-R75 HDG?
- SPB-RF40 FE45-100-R75 HDG can be ordered from cballast.com as a Øglænd System catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Øglænd System product?
- The manufacturer part number is SPB-RF40 FE45-100-R75 HDG.
- What is the HS code for SPB-RF40 FE45-100-R75 HDG?
- The customs tariff (HS) code for SPB-RF40 FE45-100-R75 HDG is 7308.90.
- Who manufactures SPB-RF40 FE45-100-R75 HDG?
- SPB-RF40 FE45-100-R75 HDG is a Øglænd System product in the Cables & Wiring range.
- Is a datasheet available for SPB-RF40 FE45-100-R75 HDG?
- Yes — the SPB-RF40 FE45-100-R75 HDG datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SPB-RF40 FE45-100-R75 HDG?
- The minimum order quantity is 1.
- Is SPB-RF40 FE45-100-R75 HDG available?
- Yes — SPB-RF40 FE45-100-R75 HDG is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
