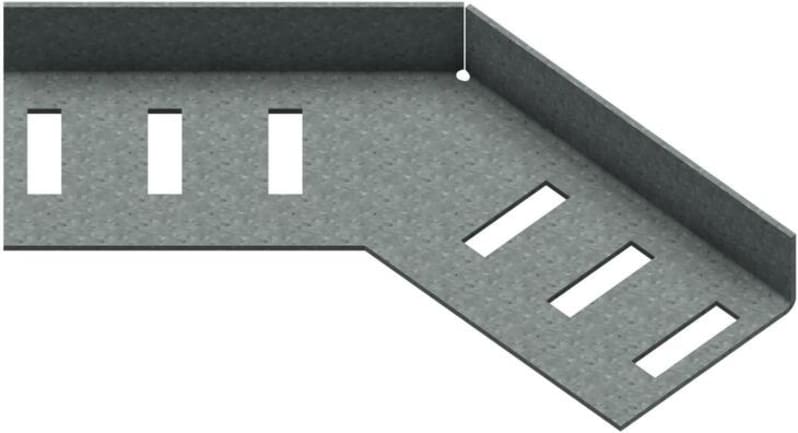

Øglænd System SPBE20 Flat Elbow 45°, 50 mm, R75, Hot-Dip Galvanised
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System SPBE20 horizontal flat elbow, 45°, 50 mm, radius 75 mm, hot-dip galvanised. For Øglænd System cable support installations.
Technical Specifications
- Manufacturer part number (MPN)
- SPBE20 FE45-50-R75 HDG
- EAN / GTIN
- 7070693020268
- Sales unit
- pcs
- Type
- Standard Elbow
- T Material Thickness (mm)
- 1.5
- X (mm)
- 68.1
- Y (mm)
- 89.4
- W Width (mm)
- 50
- H Height (mm)
- 22
- Radius
- 75
- A Angle (deg)
- 45
- Hole size A
- 7x25
- O Overlap Integrated Splice (mm)
- 75
- Fits Tray Width (mm)
- 50
- Weight (kg)
- 0.150
- ETIM class
- EC002400 - Bend for cable tray
- CAD models available for
- Hexagon S3D
- Manufacturer item number
- 1302026
- Change of direction
- Horizontal
- Construction type
- Bend rigid
- Bend model
- Smooth bend
- Inner radius
- 75 mm
- Suitable for cable tray height
- 20 mm
- Suitable for cable tray width
- 50 mm
- Material thickness
- 1.5 mm
- Side perforation
- No
- Bottom perforation
- Yes
- Model
- Integrated connector
- Wide span model
- No
- Material
- Steel
- Stainless steel, pickled
- No
- Colour
- None
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693020268
- SAP 1000037186
- Code 8729481
Product Documentation
