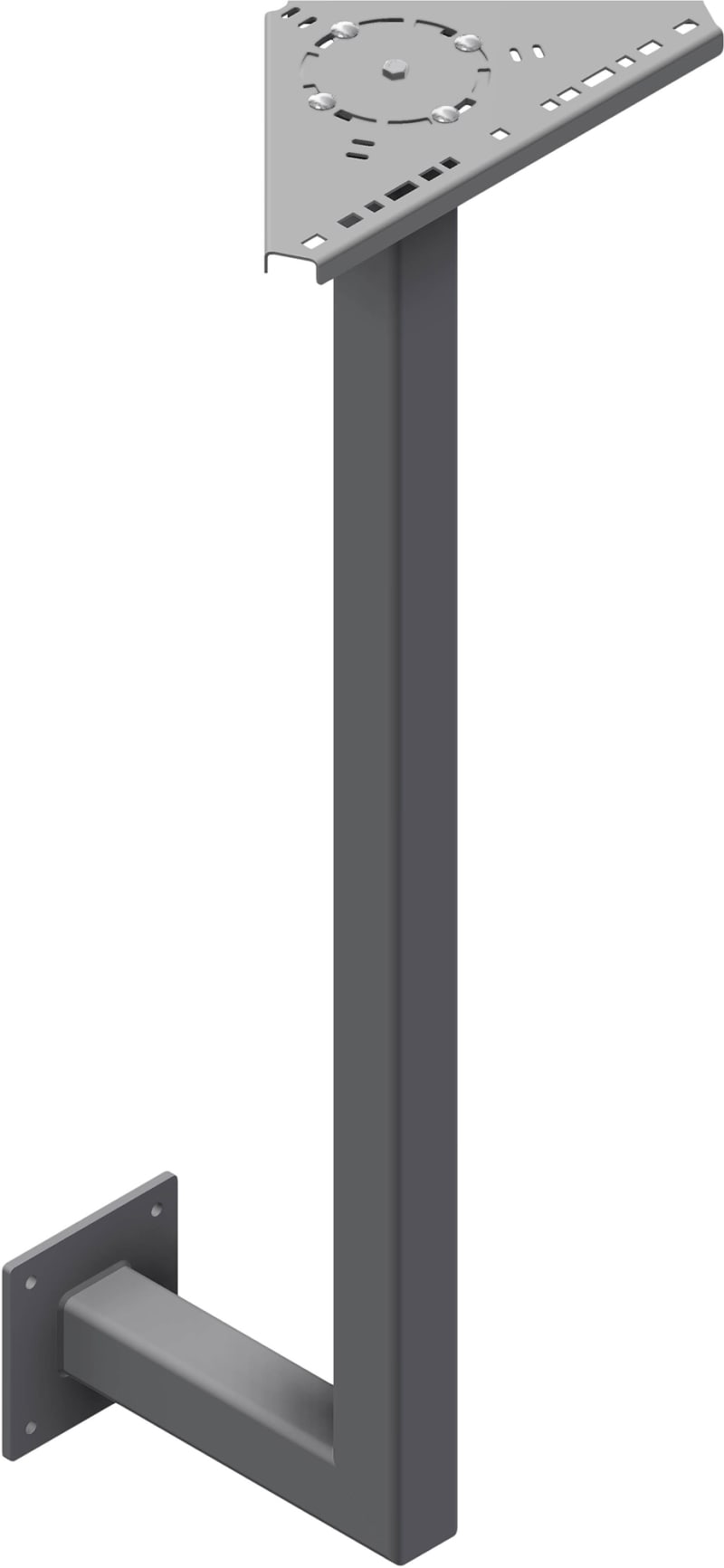

Floodlight support FS-AP-SHS80-1500 SS
Pricing
Request a quote
We reply within 24 hours
Product Description
Floodlight support FS-AP-SHS80-1500 SS. Floodlight support complete with fully adjustable universal floodlight fixing bracket 1.5m high. Overall dimensions 525 × 1567 × 292.8 mm (X × Y × Z), material thickness 5.0 mm, height 200 mm, width 200 mm, hole size A Ø13, weight 27.800 kg. ETIM class EC001005 (Mounting material for cable support system).
Technical Specifications
- Manufacturer part number (MPN)
- FS-AP-SHS80-1500 SS
- EAN / GTIN
- 7070693015752
- Sales unit
- pcs
- T Material Thickness (mm)
- 5.0
- X (mm)
- 525
- Y (mm)
- 1567
- Z (mm)
- 292.8
- W Width (mm)
- 200
- H Height (mm)
- 200
- CC (mm)
- 150
- CC 1
- 120
- CC 2
- 165
- CC3 (mm)
- 235
- CC4 (mm)
- 300
- CC5 (mm)
- 357.6
- CC6 (mm)
- 444
- Hole size A
- Ø13
- S Spacing (mm)
- 150
- F Flange (mm)
- 410
- P Part (mm)
- RHS-80x80
- Weight (kg)
- 27.800
- ETIM class
- EC001005 - Mounting material for cable support system
- Manufacturer item number
- 1301575
- Hilti item number
- 2348974
- Colour
- None
- Width
- 410 mm
- Model
- Profile console
- Height
- 1567 mm
- Material quality
- Rustproof and acidproof steel
- Length
- 525 mm
- Material
- Stainless steel
- Stainless steel, pickled
- No
- Suitable for circuit integrity
- No
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693015752
- SAP 1200261142
- Code 82301450
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System UNO Splice Angle, Hot-Dip Galvanised
UNO SA-D-92-09 HDG
Øglænd System
Øglænd System OER250 Rack, 1800 × 1990 mm, Stainless Steel
OER250 RK-1800-1990 SS
Øglænd System
Øglænd System SPB Equipment Bracket, 381 mm, Stainless Steel
SPB/LOE E+I-EQ-SI3 PT SS
Øglænd System
Øglænd System SPB Central Support, 75 mm, Pre-Galvanised
SPB-LB CS-SC-IN-75 PT PG
Øglænd System
Øglænd System SPB-RF40 Bend
SPB-RF40-90-100 ALU
Øglænd System
Øglænd System LOE75 Flat Elbow 90°, 500 mm, R300, Hot-Dip Galvanised
LOE75 FE90-500-R300 HDG
Øglænd System

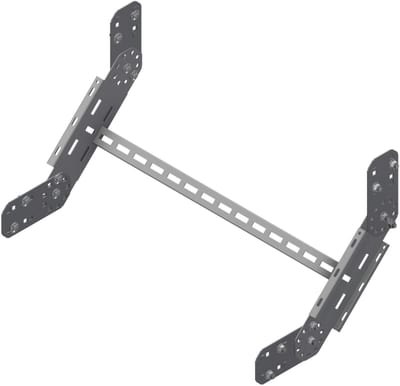

Øglænd System OE100 Riser, 750 mm
OE100 RI1-MO-750 SS
Øglænd System

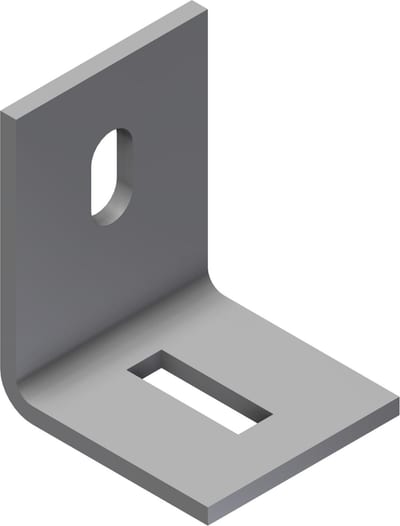

Øglænd System Angle Bracket, Stainless Steel
