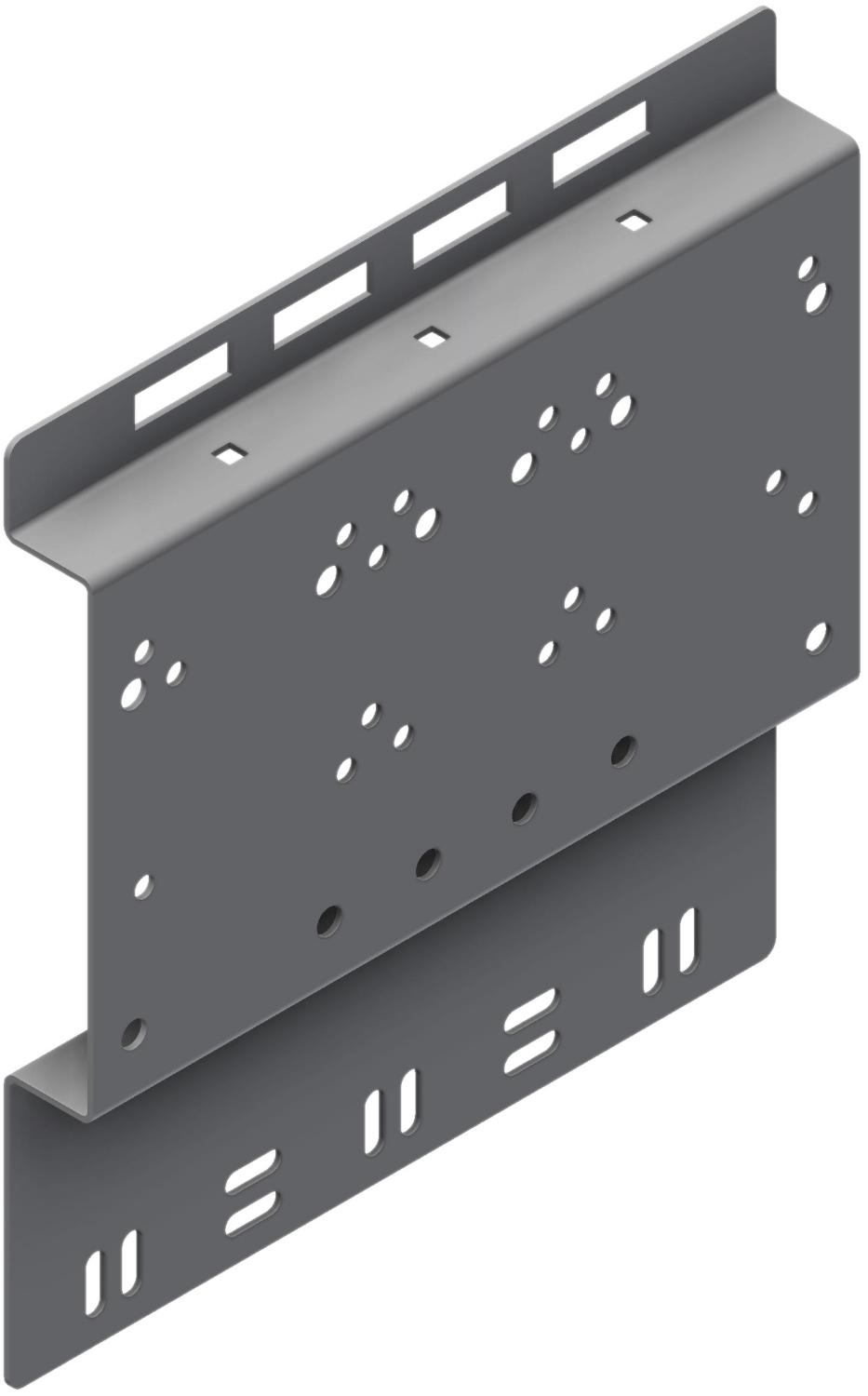

Push button bracket PB-EQ-1/2 SS
Pricing
Request a quote
We reply within 24 hours
Product Description
Push button bracket PB-EQ-1/2 SS. Push button bracket suitable for attaching push button controls. Types for fitting 1 or 2 push buttons, and for 2 or 3 push buttons. Can be supported directly from Mekano® channel. Overall dimensions 275 × 295 × 32 mm (X × Y × Z), material thickness 2.0 mm, hole size A 7x20, weight 1.500 kg. ETIM class EC001004 (Mounting plate for cable support system).
Technical Specifications
- Manufacturer part number (MPN)
- PB-EQ-1/2 SS
- EAN / GTIN
- 7070693015387
- Sales unit
- pcs
- T Material Thickness (mm)
- 2.0
- X (mm)
- 275
- Y (mm)
- 295
- Z (mm)
- 32
- CC (mm)
- 50
- CC 1
- 52
- CC 2
- 73
- CC3 (mm)
- 200
- CC4 (mm)
- 93
- CC5 (mm)
- 75
- Hole size A
- 7x20
- Hole size B
- Ø7
- Hole size C
- 7x7
- D Hole Size (mm)
- 11x35
- S Spacing (mm)
- 165
- Weight (kg)
- 1.500
- ETIM class
- EC001004 - Mounting plate for cable support system
- Manufacturer item number
- 1301538
- Hilti item number
- 2244406
- Width
- 32 mm
- Model
- Profile console
- Height
- 295 mm
- Material quality
- Rustproof and acidproof steel
- Length
- 275 mm
- Material
- Stainless steel
- Stainless steel, pickled
- No
- Suitable for circuit integrity
- No
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7070693015387
- SAP 1200261123
- Code 82301493
Product Documentation
More from Øglænd System
Øglænd System
Bracket STUDW-09 SS (1372900)
Øglænd System
HC-LI-RD-100 PG (1390793)
Øglænd System

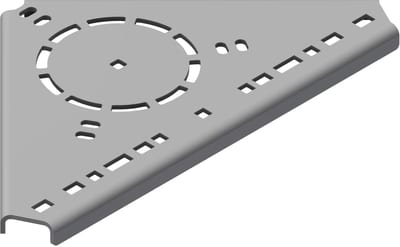

Øglænd System Luminaire Bracket, 25 mm
BR-FS-AP-SHS80-PL SS
Øglænd System

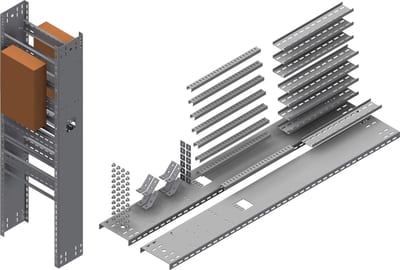

Øglænd System OER250-DS Rack, 1800 × 1990 mm, Stainless Steel
OER250-DS RK-1800-1990 SS
Øglænd System
INKO-O SB-WD-ME32-42 SS
1320357
Øglænd System
Øglænd System UNO Nut, M6, A4 Stainless
UNO TO-NU-M6 x100 A4
Øglænd System
Øglænd System SPB Equipment Bracket, 254 mm, Hot-Dip Galvanised
SPB/LOE E+I-EQ-SI2PT HDG
Øglænd System
LOE75 SC-HD SS (1303329)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy PB-EQ-1/2 SS?
- PB-EQ-1/2 SS can be ordered from cballast.com as a Øglænd System catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Øglænd System product?
- The manufacturer part number is PB-EQ-1/2 SS.
- What is the HS code for PB-EQ-1/2 SS?
- The customs tariff (HS) code for PB-EQ-1/2 SS is 7308.90.
- Who manufactures PB-EQ-1/2 SS?
- PB-EQ-1/2 SS is a Øglænd System product in the Cables & Wiring range.
- Is a datasheet available for PB-EQ-1/2 SS?
- Yes — the PB-EQ-1/2 SS datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for PB-EQ-1/2 SS?
- The minimum order quantity is 1.
- Is PB-EQ-1/2 SS available?
- Yes — PB-EQ-1/2 SS is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
