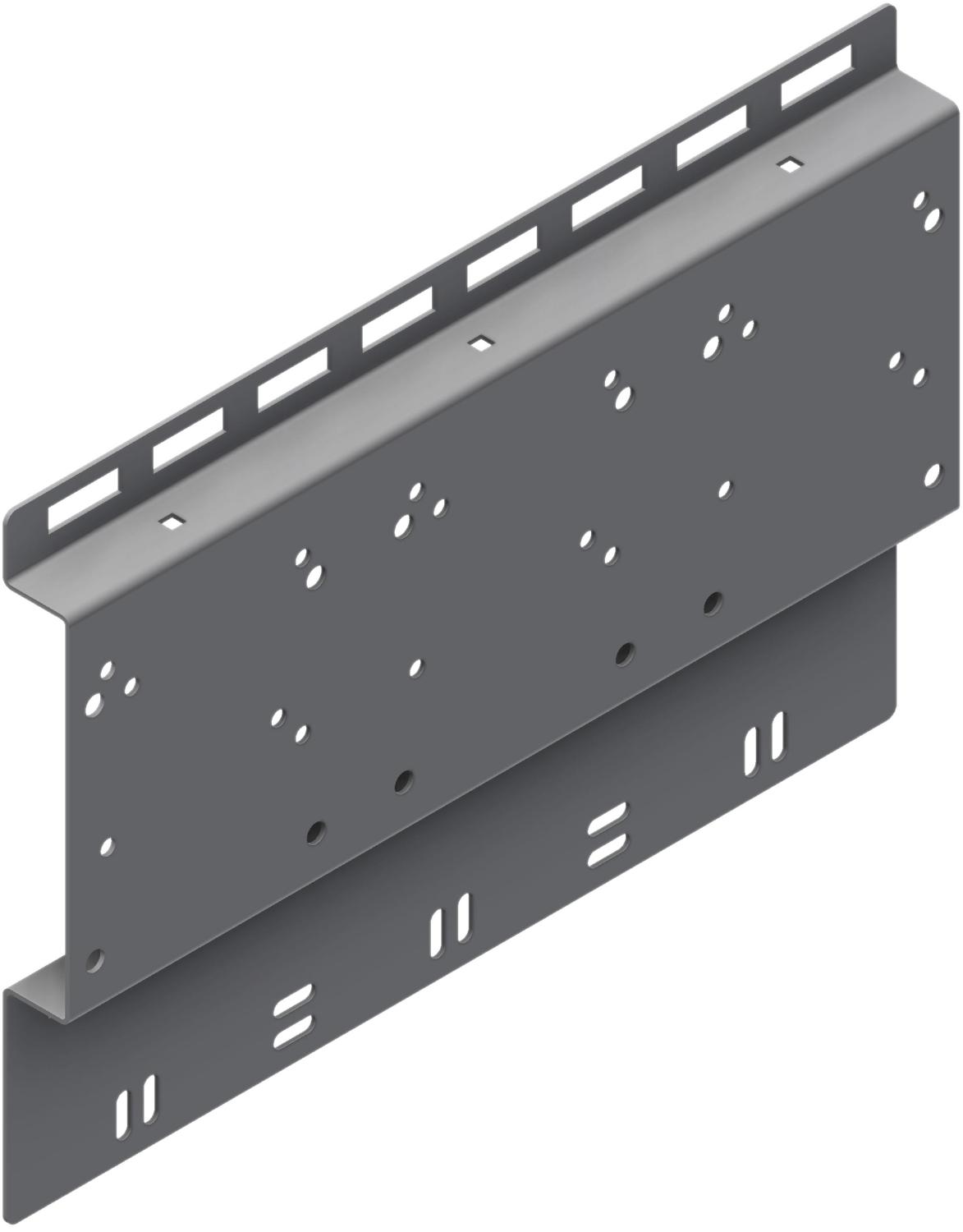

Push button bracket PB-EQ-2/3 SS
Pricing
Request a quote
We reply within 24 hours
Product Description
Push button bracket PB-EQ-2/3 SS. Push button bracket suitable for attaching push button controls. Types for fitting 1 or 2 push buttons, and for 2 or 3 push buttons. Can be supported directly from Mekano® channel. Overall dimensions 425 × 295 × 32 mm (X × Y × Z), material thickness 2.0 mm, hole size A 7x20, weight 2.260 kg. ETIM class EC001004 (Mounting plate for cable support system).
Technical Specifications
- Manufacturer part number (MPN)
- PB-EQ-2/3 SS
- EAN / GTIN
- 7070693015370
- Sales unit
- pcs
- T Material Thickness (mm)
- 2.0
- X (mm)
- 425
- Y (mm)
- 295
- Z (mm)
- 32
- CC (mm)
- 50
- CC 1
- 202
- CC 2
- 73
- CC3 (mm)
- 200
- CC4 (mm)
- 93
- CC5 (mm)
- 75
- Hole size A
- 7x20
- Hole size B
- Ø7
- Hole size C
- 7x7
- D Hole Size (mm)
- 11x35
- S Spacing (mm)
- 165
- Weight (kg)
- 2.260
- ETIM class
- EC001004 - Mounting plate for cable support system
- Manufacturer item number
- 1301537
- Hilti item number
- 2216391
- Width
- 32 mm
- Model
- Profile console
- Height
- 295 mm
- Material quality
- Rustproof and acidproof steel
- Length
- 425 mm
- Material
- Stainless steel
- Stainless steel, pickled
- No
- Suitable for circuit integrity
- No
- Country of origin
- Norway
