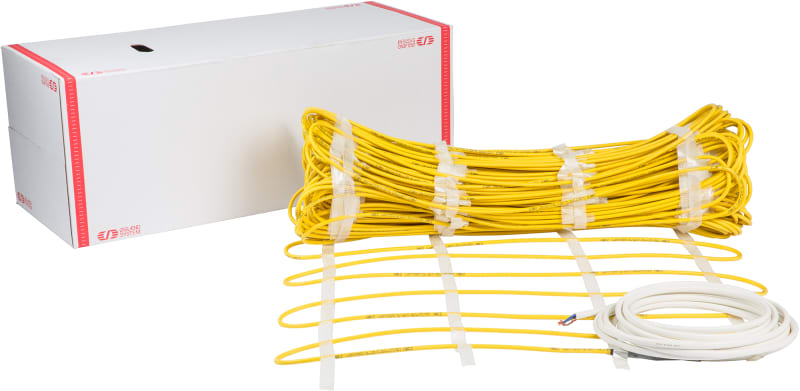

Oglaend System 1037472 Snow Melting Mat 300 W/m2 1.0x15.0 m 400 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Oglaend System outdoor snow melting mat rated 300 W/m2 with an active surface of 15 m2 (1.0 x 15.0 m) for 400 V supply. The 8.3 mm thick element carries a heating conductor load of 30 W/m and is supplied with a single 10 m cold-lead tail for connection outside the heated zone. Suitable as surface heating for driveways, walkways and ramps.
Technical Specifications
- Manufacturer part number (MPN)
- 1037472
- Sales unit
- pcs
- El-nummer (NO)
- 1037472
- ETIM class
- SC000405
- EL number
- 1037472
- EAN / GTIN
- 7331002914792
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Sweden
- HS code
- 85168000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 8.3 mm
- Product width
- 1000 mm
- Product length / depth
- 15000 mm
- Net weight
- 13300 g
- Product volume
- 124.5 dm³
- Price units per base unit
- 1
- Connected load (W)
- 4500 to 4500
- Width (mm)
- 1000
- Length (mm)
- 15000
- Thickness (mm)
- 8.3
- Power (W/m²)
- 300
- Surface (m²)
- 15
- Heating conductor load (W/m)
- 30
- Number of cold conductors
- 1
- Length of cold conductors (mm)
- 10000
- Suitable as outdoor surface heating
- Yes
- With support mat
- No
- Self-adhesive
- No
- Suitable as roof surface heating
- No
- With room temperature controller
- No
- With floor temperature sensor
- No
- With controller
- No
- Voltage
- 400 V
- Application
- Cable
- Connection voltage
- 400 V
Standards & Compliance
- HS Code
- 8516.80
Cross References
- 7331002914792
- El-nr 1037472
Product Documentation
More from Øglænd System
Øglænd System

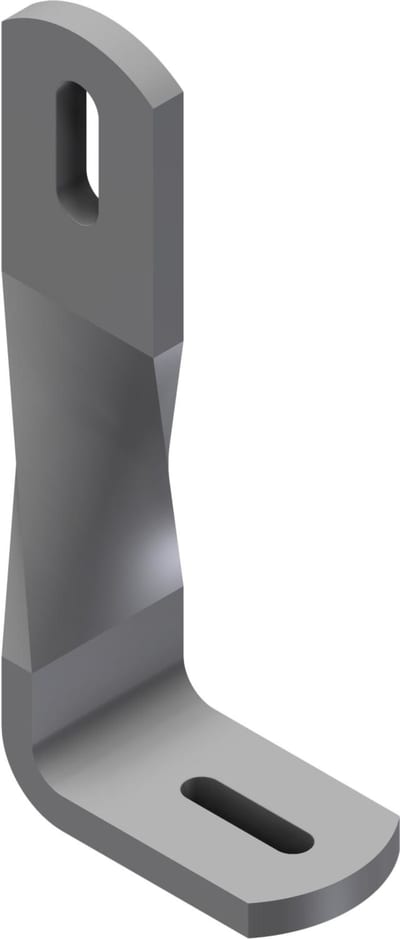

Øglænd System Angle Bracket, Stainless Steel
AB-TW-45x105x5 SS
Øglænd System

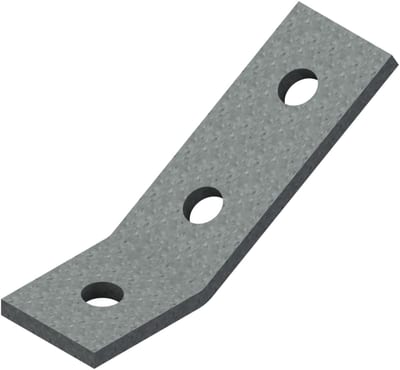

Øglænd System UNO Splice Angle, Hot-Dip Galvanised
UNO SA-D-92-03 HDG
Øglænd System

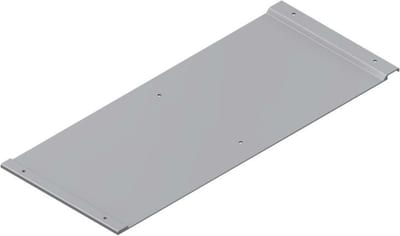

Øglænd System Cover, 3 m
COVER CABLE LADDER FOE-CO-300
Øglænd System
Øglænd System Mekano Starter Bracket, Stainless Steel
Mekano 100-2T ST-BO-C-NP SS
Øglænd System
Øglænd System U-Bolt, Stainless Steel
OPS-SD PC02-050 SS
Øglænd System

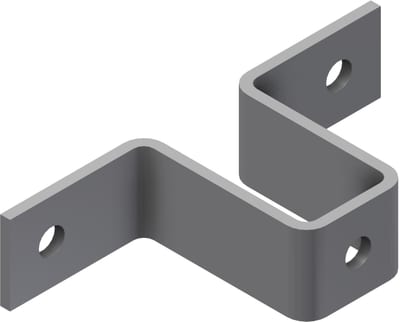

Øglænd System UNO Splice Angle, Stainless Steel
UNO SA-D-62 SS
Øglænd System
Øglænd System UNO Channel, 41 mm, 6 m, Stainless Steel
UNO CH-U-41-1-6000 SS
Øglænd System

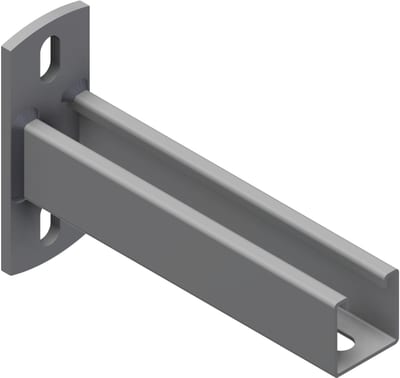

Øglænd System UNO Cantilever Arm, 200 mm, Stainless Steel
