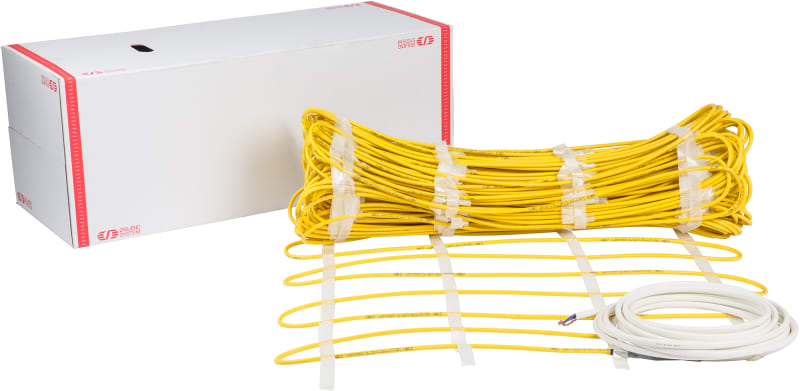

Øglænd System Snow-Melting Mat 300 W/m² 1.0 × 10.0 m, 400 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Øglænd System 1037470 is an outdoor snow-melting mat rated 300 W/m² supplied in a 1.0 × 10.0 m panel covering 10 m² on a 400 V connection with 3000 W connected load. The 8.3 mm thick mat carries heating conductor loading of 30 W/m and terminates in a single 10 m cold-lead cable. Typical use is heating driveways, ramps and walkways to prevent snow build-up.
Technical Specifications
- Manufacturer part number (MPN)
- 1037470
- Sales unit
- pcs
- El-nummer (NO)
- 1037470
- ETIM class
- SC000405
- Voltage
- 400 V
- Width
- 1000 mm
- Application
- Cable
- Power
- 300 W/m²
- Thickness
- 8.3 mm
- Self-adhesive
- No
- Surface
- 10 m²
- With room temperature controller
- No
- Length
- 10000 mm
- Heating conductor load
- 30 W/m
- With support mat
- No
- Number of cold conductors
- 1
- Length of cold conductors
- 10000 mm
- With controller
- No
- Connection voltage
- 400 V
- Connected load
- 3000 W
- With floor temperature sensor
- No
- Suitable as outdoor surface heating
- Yes
- Suitable as roof surface heating
- No
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8516.80
Cross References
- 7331002914778
- El-nr 1037470
Product Documentation
More from Øglænd System
Øglænd System
Øglænd System Hexagon Bolt, M12 × 60 mm, A4 Stainless
BO-HX-M12x60 A4
Øglænd System

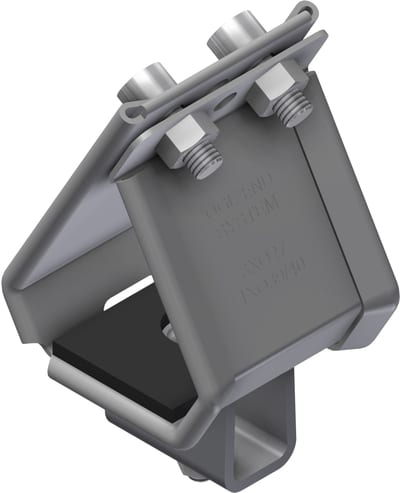

Øglænd System SmartCleat Cable Cleat, Stainless Steel
SmartCleat single Ø 1X29
Øglænd System

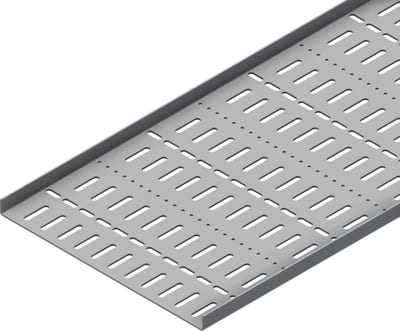

Øglænd System SPBE20 Cable Tray, 300 mm, 3 m
SPBE20 CT-300-3000-2.0 AL
Øglænd System
Øglænd System Hexagon Bolt, M8 × 12 mm, A4 Stainless
BO-HX-M8x12 A4
Øglænd System
Øglænd System Mekano Beam Clamp, Stainless Steel
Mekano 100-4Q BC SS
Øglænd System
Øglænd System ETIN Adapter, Polyamide
ETIN-S AD-ME18-WH PA
Øglænd System
Øglænd System LOE100 Hinge
OE/LOE100 HI-VE-SQ HDG
Øglænd System

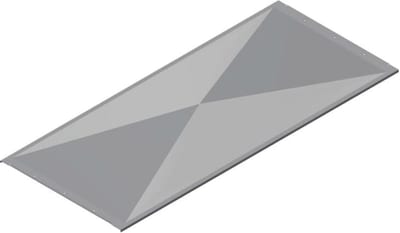

Øglænd System OE Cover, 600 mm, 1.5 m, Hot-Dip Galvanised
