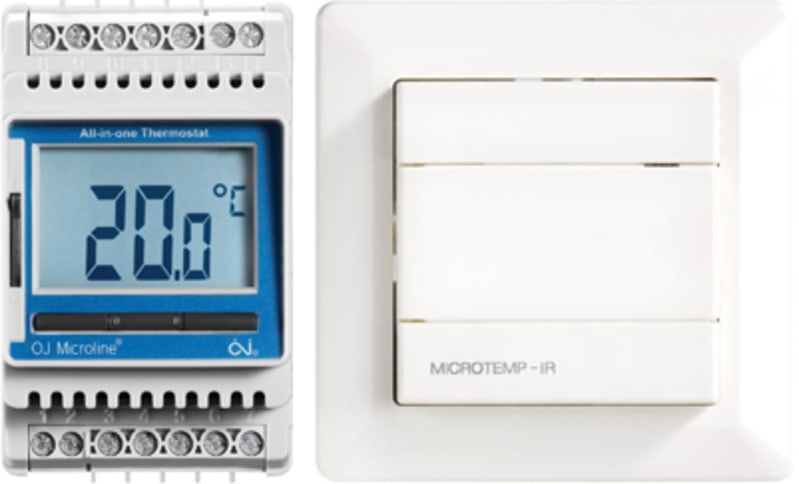

Function ESD-4 Digital Panel Thermostat with Wireless IR Sensor
Pricing
Request a quote
We reply within 24 hours
Product Description
Panel-mounted digital thermostat with wireless MIR-4 infrared temperature sensor. Weekly and 24-hour programming, comfort range 0-40 degrees C, set-back to -19.5 degrees C, frost protection 5-40 degrees C, automatic summer/winter switchover. 207-253 V 50/60 Hz supply, NC breaker contact, 3-module DIN width, IP20. Suitable for switchboard temperature control where the sensor must be located remotely without dedicated wiring.
Technical Specifications
- Manufacturer part number (MPN)
- thermostat ESD-4 with IR-SENSOR EAN / GTIN: 5703502900858 HS code: 8536.90 Sales unit: pcs Package quantity: 10 pcs Model: digital Sensor type: Remote sensor Rated voltage: 207–253 V Rated frequency: 50–60 Hz Number of channels: 1 Text guidance in display: No 24 h program: Yes Weekly program: Yes Shortest temperature phase: 10 min Number of basic programs standard: 7 Holiday program: Yes Input for time program: Yes Adjustment range comfort: 0–40 °C Adjustment range set-back: -19.5–50 °C Adjustment range frost protection: 5–40 °C Automatic switching summer/winter time: Yes Operation mode switch: Yes Contact type: Breaker contact (NC) Degree of protection (IP): IP20 Width in number of modular spacings: 3 Assembly depth: 57 mm Standby power consumption (solstandby): 0.4 W Country of origin: Denmark
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5703502900858
- SAP 1000606803
- Code 8187696
Product Documentation
More from Function
Function
OPP.TR.UR 0-120 MIN. Changeover
GI49335
Function
DALI-2 relay module for recessed mounting
310-02310
Function
Meter SE-C21-RS485 3-Phase 230/400V 65A
CI22422MC
Function
Summation Current Transformer WGB-35 TypeB Ø35mm
1602533
Function
Function OJ1093 ETR/F 1441 Snow-Melting Gutter Thermostat
Function
eNet Base Plate Set (GE533900)
Function
Summation Current Transformer WGC-25 TypeA Ø25mm
1612775
Function
Minilux Control (36-080)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy TERMOSTAT ESD-4 MED IR-FØLER?
- TERMOSTAT ESD-4 MED IR-FØLER can be ordered from cballast.com as a Function catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Function product?
- The manufacturer part number is TERMOSTAT ESD-4 MED IR-FØLER.
- What is the HS code for TERMOSTAT ESD-4 MED IR-FØLER?
- The customs tariff (HS) code for TERMOSTAT ESD-4 MED IR-FØLER is 8536.90.
- Who manufactures TERMOSTAT ESD-4 MED IR-FØLER?
- TERMOSTAT ESD-4 MED IR-FØLER is a Function product in the HVAC & Refrigeration range.
- Is a datasheet available for TERMOSTAT ESD-4 MED IR-FØLER?
- Yes — the TERMOSTAT ESD-4 MED IR-FØLER datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for TERMOSTAT ESD-4 MED IR-FØLER?
- The minimum order quantity is 1.
- Is TERMOSTAT ESD-4 MED IR-FØLER available?
- Yes — TERMOSTAT ESD-4 MED IR-FØLER is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
