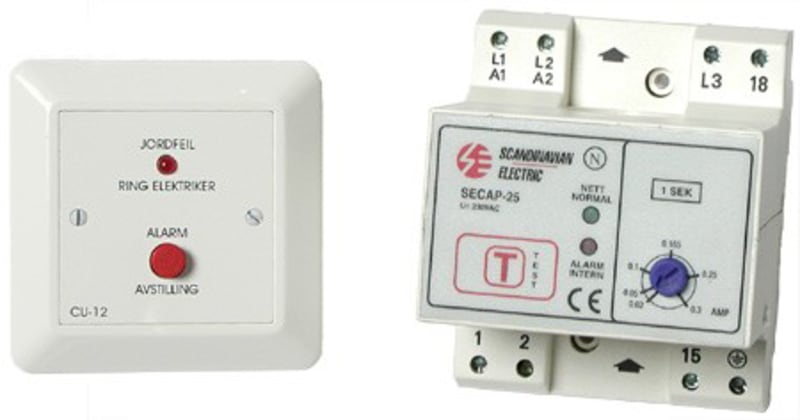

The SECAP-25 is a DIRECTIONAL earth fault relay with a Ø25 mm summation transformer built into the unit, intended for IT (isolated-neutral) networks. Direction is the point of it. In an IT system every feeder is galvanically connected to every other one and the whole network shares its capacitive leakage to earth, so an ordinary earth-leakage relay watching one feeder also registers faults that belong to somebody else's circuit and raises an alarm nobody can act on. A directional relay resolves which side of itself a fault lies on and responds only to faults within its own installation, which is what makes the alarm mean something and what makes it possible to find the fault instead of merely knowing the network has one. It provides a potential-free normally-open alarm contact and a 12 V output for remote annunciation, which drives the CU-12 indicator panel. This is the FP variant: FIXED sensitivity at 30 mA with a 1 second delay, supplied WITH the CU-12 indicator panel. The panel runs from the relay's 12 V output and gives a visible earth fault indication at the board or door, so the condition is seen by whoever is standing in front of the installation rather than only by a control system. It is the same relay as the SECAP25F, which is supplied without the panel. Manufactured in Spain and supplied under the Function brand. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Technical Specifications

Manufacturer part number (MPN)
SECAP 25P
EAN / GTIN
7070587100076
Sales unit
pcs
Type of electric connection
Screw connection
Rated control supply voltage AC 50 Hz
230 V
Rated control supply voltage AC 60 Hz
230 V
Voltage type for actuating
AC
With detachable clamps
No
Function
For AC-current system
Rated frequency
50–60 Hz
Indication of insulation value
No
Error registration possible
No
Number of contacts as normally open contact
1
Width
70 mm
Height
85 mm
Depth
70 mm
Country of origin
Spain
Device type
Directional earth fault relay with built-in summation transformer
Network type
IT (isolated neutral)
Directional
Yes — responds only to earth faults within its own installation
Sensitivity (IΔn)
30 mA, fixed
Tripping delay
1 s
Integral toroid aperture
Ø25 mm
Alarm output
Potential-free normally-open contact, plus 12 V output for remote annunciation
Indicator panel
CU-12 indicator panel INCLUDED
Variant code
F = fixed sensitivity; P = supplied with panel
Model
SECAP-25 FP

Standards & Compliance

HS Code
8536.20

Cross References

  • EAN 7070587100076
  • SAP 1000058189
  • Code 8906846
  • SECAP-25 FP
  • El-nr 1661704

Product Documentation

Document preview: Function SECAP-25 FP Directional Earth Fault Relay with CU-12 Indicator Panel — IT Network, Fixed 30 mA / 1 s, Ø25 mm Integral Toroid, Panel Included (SECAP 25P) — Specification sheet

Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
