Function

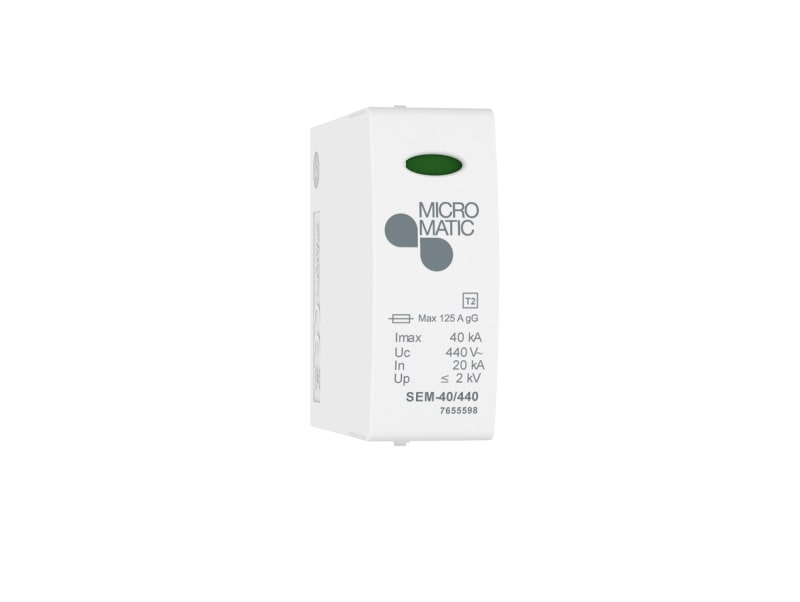

Plug for SEM-40/440 (CP77707655)
Part numberCP77707655EAN / GTIN7070587117883HS code8536.30
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Function CP77707655 Surge protection device SEM-40/440.
Technical Specifications
- Manufacturer part number (MPN)
- CP77707655
- EAN / GTIN
- 7070587117883
- Sales unit
- pcs
- System configuration DC
- No
- System configuration IT
- Yes
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TT
- No
- Number of conductors (without earthing)
- 1
- Nominal discharge surge current (8/20)
- 20 kA
- Max. discharge surge current (8/20)
- 40 kA
- Nominal voltage AC
- 230 V
- Max. continuous voltage AC
- 275 V
- Voltage protection level L-N
- 2 kV
- Short-circuit breaking capacity (Isccr)
- 25 kA
- Integrated backup fuse
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 1 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 25 mm²
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- With remote signalling contact
- No
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 7070587117883
- SAP 1200608103
- Code 82997681
Product Documentation
Document preview: Plug for SEM-40/440 (CP77707655) — Specification sheet
More from Function
Function

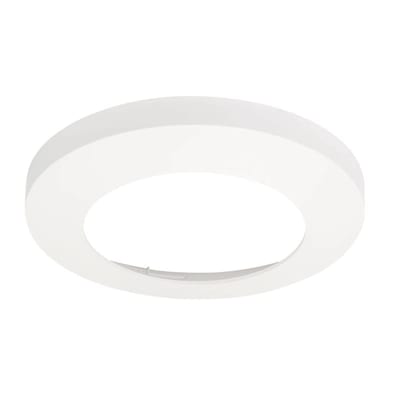

Dekkr. f P4XLR f INF/SF white RAL 9010
353-991991
Function

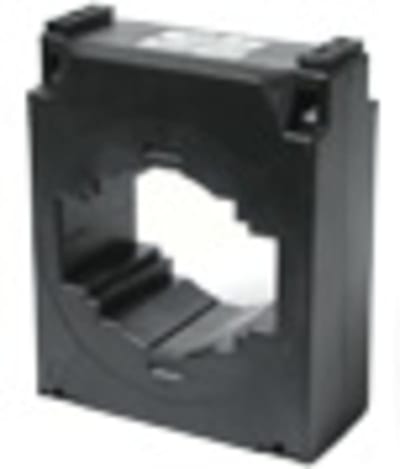

Current Transformer TC6.2 400/5A
TC6,24005
Function

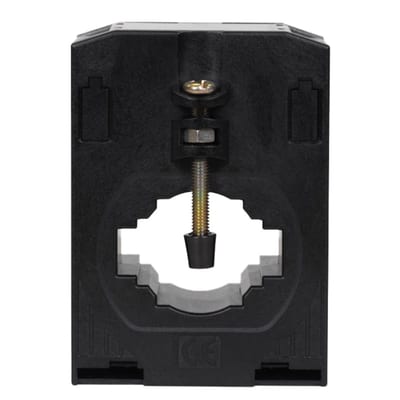

Current Transformer TD6 600/5A kl 0,5
CI7504D
Function

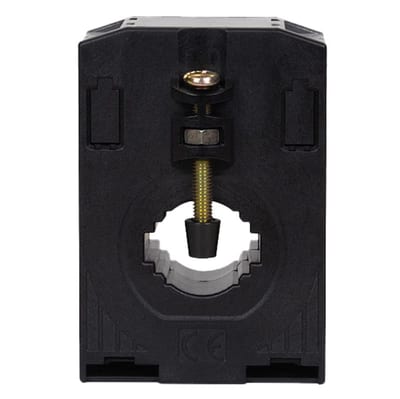

Current Transformer TD5 75/5A kl 0,5
CI75024
Function

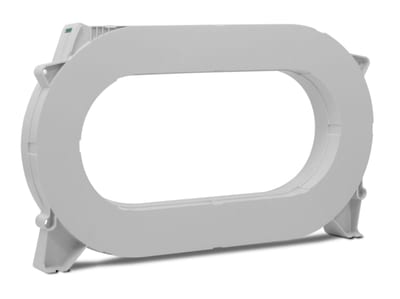

Summation Current Transformer WGC-500X200 TypeA
1612784
Function

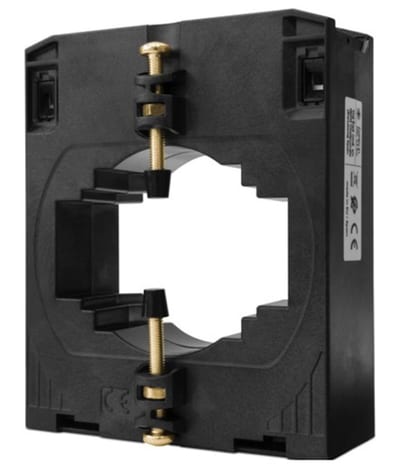

Current Transformer TDH10 2500/5A kl 0,2S
CI7707NFU01
Function

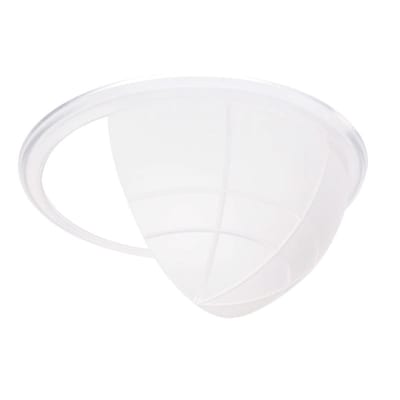

Function Lens Cover for P4XLR and M4XHC Sensors
353-999889
Function

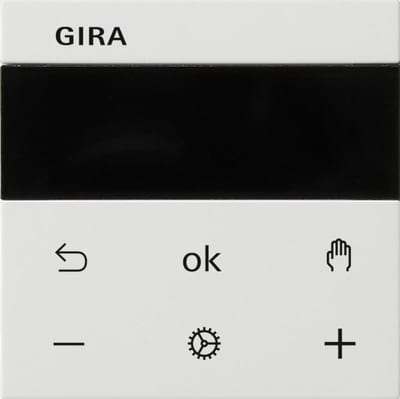

S3000 Thermostat Front with Bluetooth, Pure White
