Function

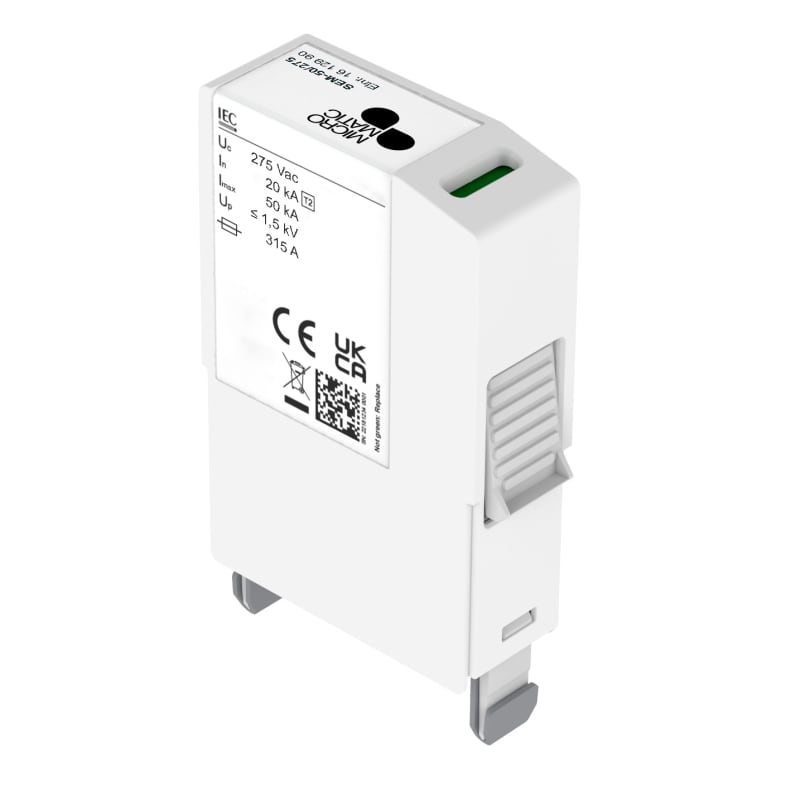

Reserve plug SEM50 TT/TN network Uc 275V
Part numberCP7001598EAN / GTIN8435297890560HS code8536.30
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Function CP7001598 Reserve plug SEM TT/TN system Uc 275V.
Technical Specifications
- Manufacturer part number (MPN)
- CP7001598
- EAN / GTIN
- 8435297890560
- Sales unit
- pcs
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- Yes
- System configuration TN-C
- Yes
- System configuration TT
- Yes
- System configuration other
- No
- Number of conductors (without earthing)
- 1
- Nominal discharge surge current (8/20)
- 20 kA
- Max. discharge surge current (8/20)
- 50 kA
- Max. continuous voltage AC
- 275 V
- Voltage protection level L-N
- 1.5 kV
- Max. overcurrent protection device, series connection (fuse)
- 315 A
- Short-circuit breaking capacity (Isccr)
- 25 kA
- Integrated backup fuse
- No
- Leakage-current free
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 1 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- With remote signalling contact
- No
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 8435297890560
- SAP 1200738884
- Code 83882665
Product Documentation
Document preview: Reserve plug SEM50 TT/TN network Uc 275V (CP7001598) — Specification sheet
More from Function
Function
Delbar current transformer STP24 200/5A ø24mm
8005152
Function

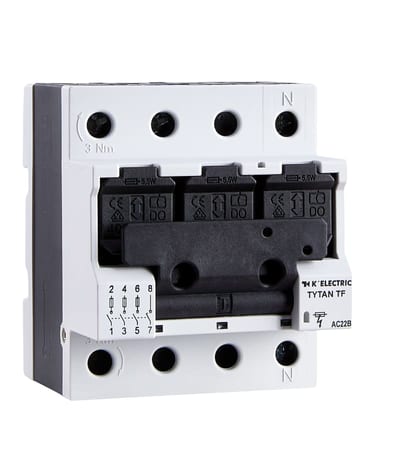

Fused load-break switch Tytan 3-P+N 10A
KE10421510
Function

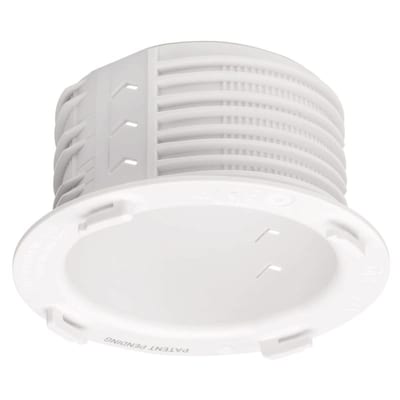

Internal bracket for P4XMR/P4XLR INF/SF
353-991981
Function

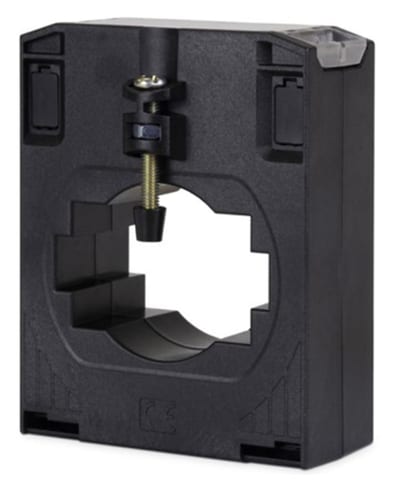

Current Transformer TDH8 800/5A kl 0,2S
CI7706FFU01
Function

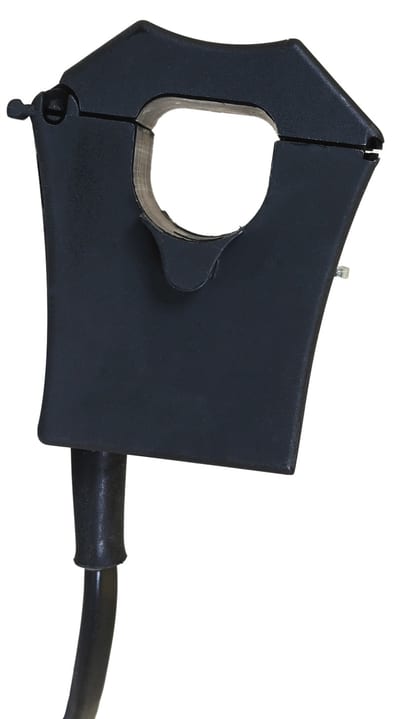

Delbar current transformer STP24 250/5A ø24mm
8005153
Function

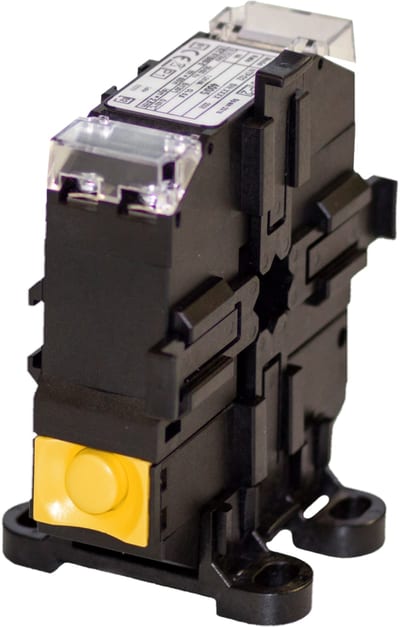

Current Transformer TP-PUSH32 100/5A
SL10510100
Function

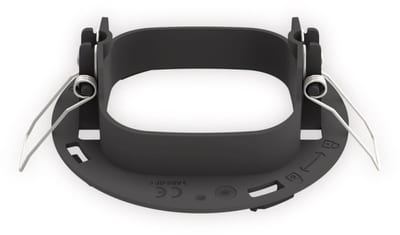

Function Mounting Spring for P4X Flush Sensors
353-991901
Function

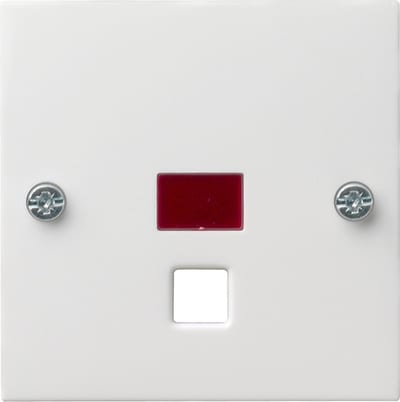

BR.FRONT SNORBR. RENHV. Glans
