Function

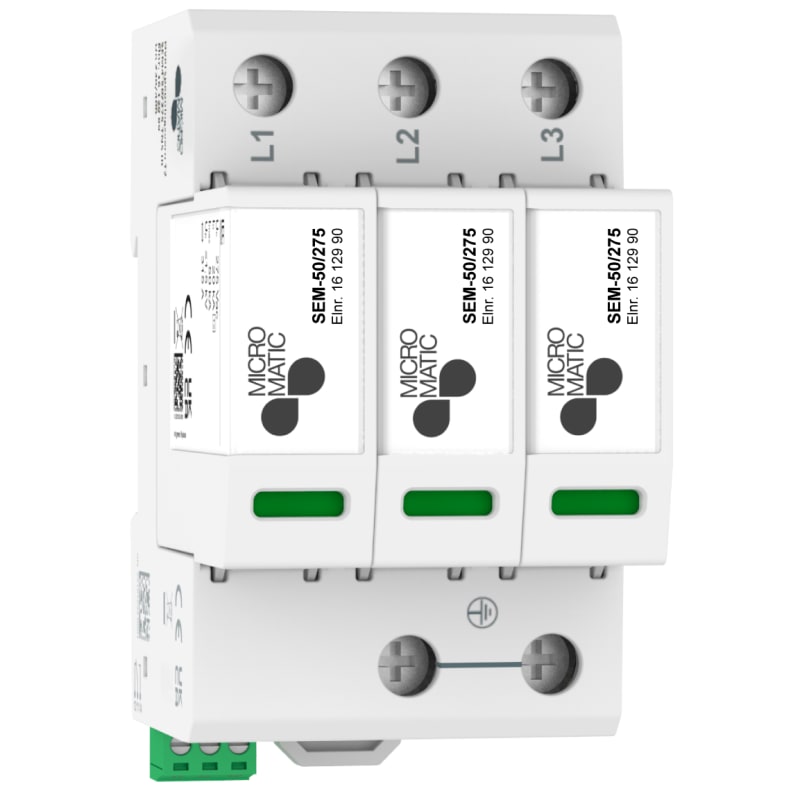

Surge protection device SEM3-50/275 TT/TNC IR
Part numberCP7301598EAN / GTIN8435297890515HS code8536.30
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Function CP7301598 Surge protection device SEM3-50/275 TT/TNC IR.
Technical Specifications
- Manufacturer part number (MPN)
- CP7301598
- EAN / GTIN
- 8435297890515
- Sales unit
- pcs
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- Yes
- System configuration TN-C
- No
- System configuration TT
- Yes
- System configuration other
- No
- Number of conductors (without earthing)
- 3
- Nominal discharge surge current (8/20)
- 20 kA
- Max. discharge surge current (8/20)
- 50 kA
- Max. continuous voltage AC
- 275 V
- Voltage protection level L-N
- 1.5 kV
- Max. overcurrent protection device, series connection (fuse)
- 315 A
- Short-circuit breaking capacity (Isccr)
- 25 kA
- Integrated backup fuse
- No
- Leakage-current free
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 3 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 8435297890515
- SAP 1200738879
- Code 83882656
Product Documentation
Document preview: Surge protection device SEM3-50/275 TT/TNC IR (CP7301598) — Specification sheet
More from Function
Function

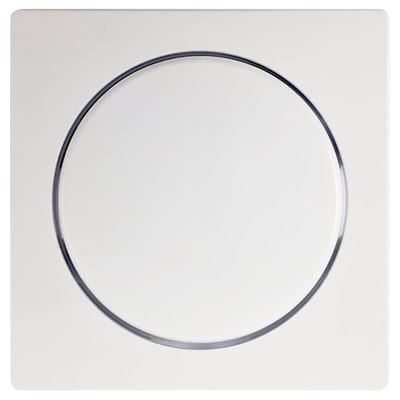

Cover FOR Uniled+ Exxact White
SE9952
Function
Enclosed-avdekk. f P4XMR/P4XLR INF/SF
353-991971
Function

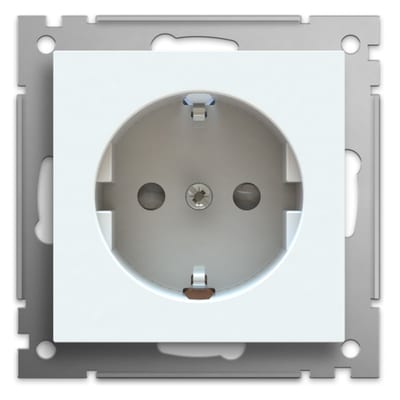

Socket outlet, single with earth white glanset
EM1001
Function

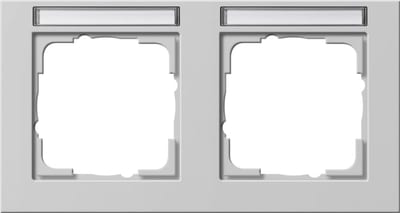

Frame E2 GREY MATT 2H Horizontal M.FELT
1424213
Function
Tilst.-sens. P46MR DALI S/BMS 12-13M INF
353-650021
Function

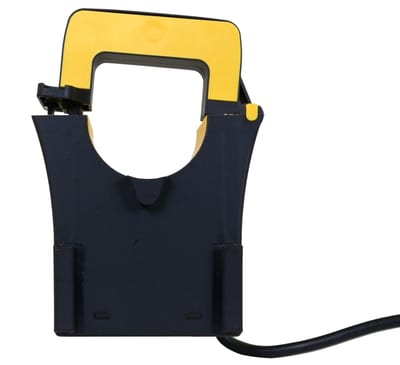

Delbar current transformer STP40 250/5A Ø40mm
8005154
Function

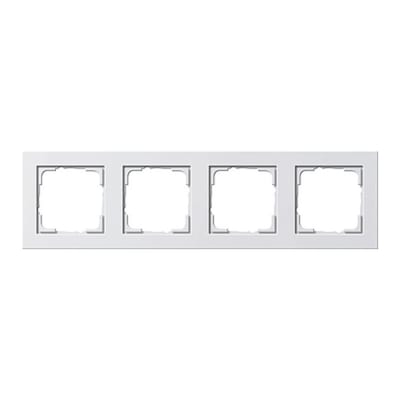

4-H. Frame White E2 (GI21422)
Function

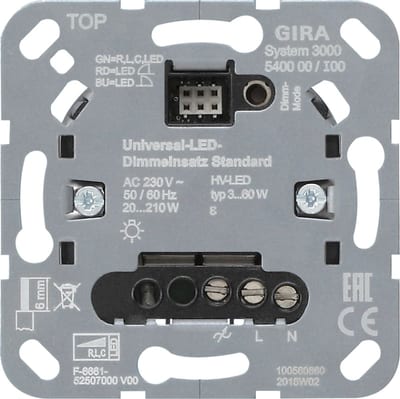

S3000 LED Dimmer UNIV TRYK STD
