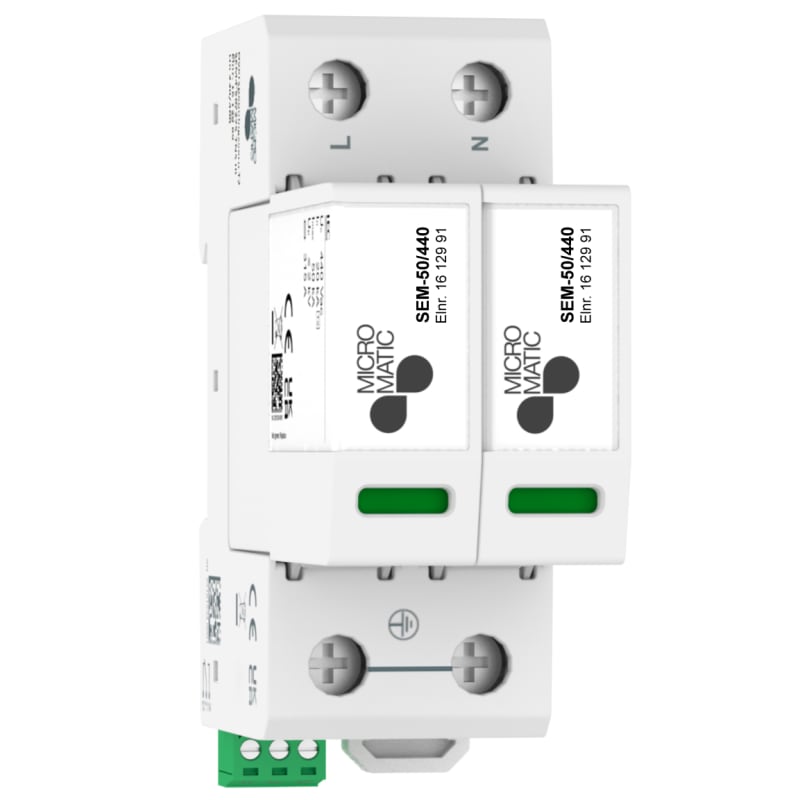

Surge protection device SEM2-50/440 IT IR
Pricing
Request a quote
We reply within 24 hours
Product Description
Function CP7219598 Surge protection device SEM2-50/440 IT IR.
Technical Specifications
- Manufacturer part number (MPN)
- CP7219598
- EAN / GTIN
- 8435297890492
- Sales unit
- pcs
- System configuration DC
- No
- System configuration IT
- Yes
- System configuration TN
- Yes
- System configuration TN-C
- No
- System configuration TT
- Yes
- System configuration other
- No
- Number of conductors (without earthing)
- 2
- Nominal discharge surge current (8/20)
- 20 kA
- Max. discharge surge current (8/20)
- 50 kA
- Max. continuous voltage AC
- 440 V
- Voltage protection level L-N
- 2 kV
- Max. overcurrent protection device, series connection (fuse)
- 315 A
- Short-circuit breaking capacity (Isccr)
- 25 kA
- Integrated backup fuse
- No
- Leakage-current free
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 2 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 8435297890492
- SAP 1200738877
- Code 83882659
